51 PD - 2003 - 23-5681-72 - Mountfield Rotary Mower Wheels Diagram

Name: 51 PD - 2003 - 23-5681-72 - Mountfield Rotary Mower Wheels Diagram
SKU: 51_pd_23_5681_72_wheels-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

51 PD - 2003 - 23-5681-72 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield 51 PD Parts Diagram

Product Name - 51 PD

Model Year - 2003

Model Type -

Art.N - 23-5681-72

Be the first to review this product

0 product questions

	Part No.	Details
252	MO112155000/0 In stock	Lock Nut	£1.48 £1.23
253	MO9699-0090-02 Out of stock	Washer	£1.91 £1.59
254	MO122122201/0 In stock	Ball Bearing	£2.15 £1.79
256	MO381001223/1 In stock	Front Wheel Axle	£26.74 £22.28
257	MO112436050/0 Out of stock	Lock Plate	£1.74 £1.45
258	MO122446187/0 Out of stock	Spring	£6.96 £5.80
259	MO181001264/0 Out of stock	Rod. Height Adjustment	£21.42 £17.85
262	MO112154330/0 Out of stock	Nut	£1.48 £1.23
263	MO112789000/0 Out of stock	Screw	£1.48 £1.23
264	MO381003283/1 Out of stock	Lever. Height Adjustment	£25.21 £21.01
265	MO381007360/0 Out of stock	Wheel	£15.66 £13.05
266	MO322110687/0 Out of stock	Hub Cap-White	£2.42 £2.02
267	MO112530150/0 Out of stock	Elastic Washer	£1.34 £1.12
268	MO122122206/0 In stock	Ball Bearing	£1.74 £1.45
271	MO122170800/0 Out of stock	Spacer	£1.48 £1.23
401	MO122120105/2 Out of stock	Ring Gear	£9.44 £7.87
402	MO122600093/0 Out of stock	Wheel Protection-Lh	£3.22 £2.68
403	MO112608600/0 In stock	Circlip	£1.48 £1.23
404	MO122570120/1 In stock	Pinion-Lh	£7.03 £5.86
405	MO119216035/0 In stock	Bearing	£3.35 £2.79
406	MO122600092/0 Out of stock	Wheel Protection-Rh	£3.22 £2.68
407	MO381000147/0 In stock	Rear Wheel Axle	£26.74 £22.28
408	MO322570138/0 In stock	Pinion-Rh	£7.03 £5.86

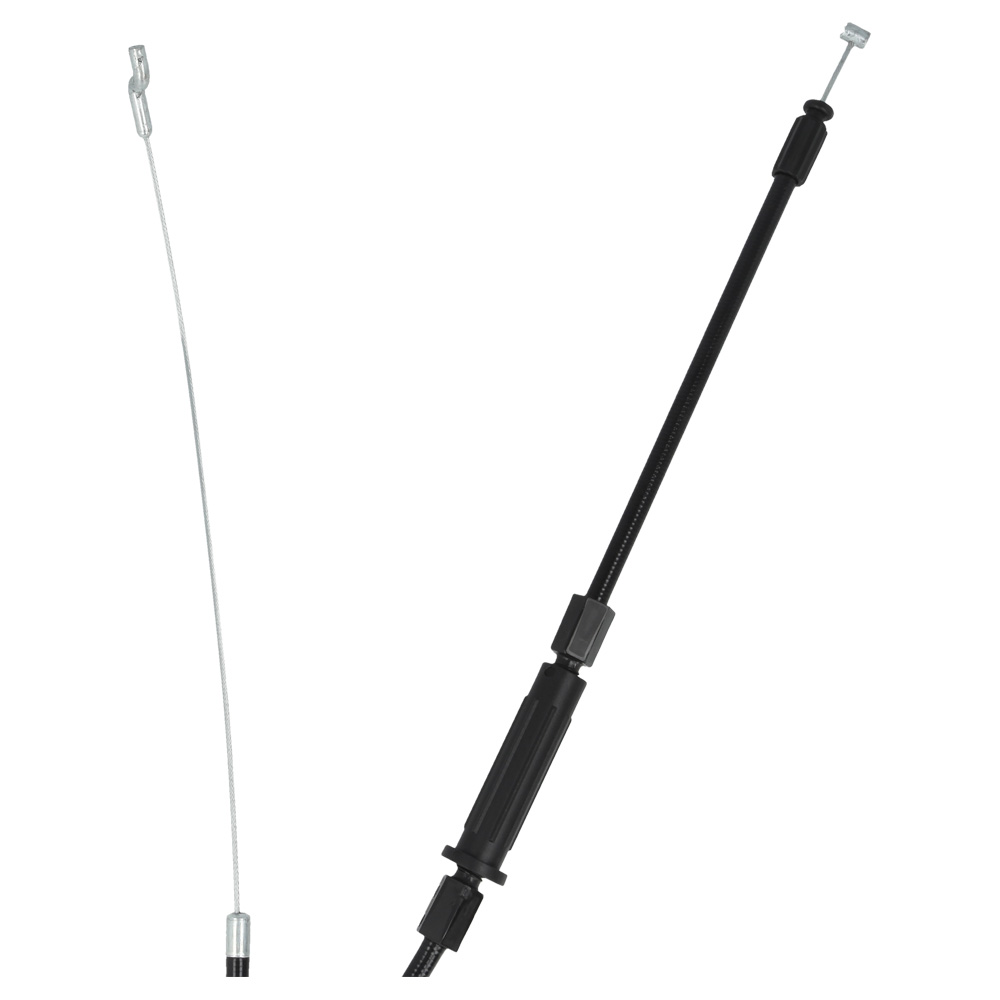

410	MO181000648/1 In stock	Cable Rear Drive	£41.51 £34.59
412	MO122601909/0 In stock	Belt Pulley	£5.35 £4.46
413	MO112645705/0 Out of stock	Pin	£1.48 £1.23
414	MO122033283/0 In stock	Adjustment Rod	£4.42 £3.68
415	MO135063902/1 In stock	Belt	£9.44 £7.87
416	MO122753000/0 In stock	Pin	£1.48 £1.23
417	MO122041957/1 Out of stock	Bushing	£1.48 £1.23
418	MO122450063/0 Out of stock	Spring	£1.48 £1.23
419	MO322680009/0 Out of stock	Washer	£1.52 £1.27
420	MO112154510/0 In stock	Lock Nut	£1.48 £1.23
421	MO122110230/0 In stock	Hub Cap	£1.48 £1.23
