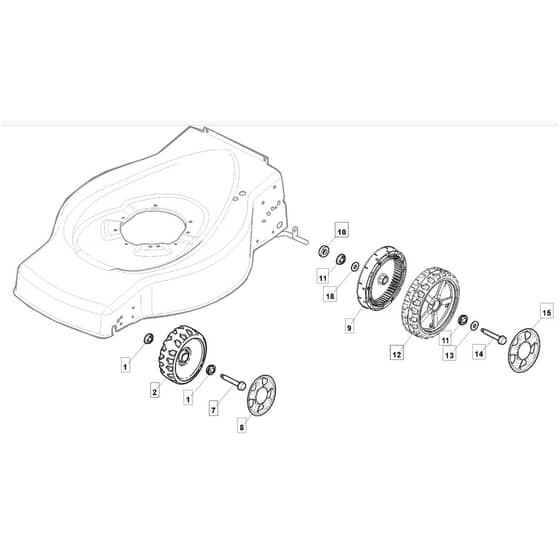

5020 PD - 2009 - 299275323/M33 - Mountfield Rotary Mower Wheels Diagram

Name: 5020 PD - 2009 - 299275323/M33 - Mountfield Rotary Mower Wheels Diagram
SKU: 5020_pd_299275323_m33_wheels-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

5020 PD - 2009 - 299275323/M33 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield 5020 PD Parts Diagram

Product Name - 5020 PD

Model Year - 2009

Model Type - ESL 534 TR

Art.N - 299275323/M33

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122122206/0 In stock	Bearing	£1.74 £1.45
2	MO322686091/1 In stock	Wheel	£6.43 £5.36
7	MO122524341/0 Out of stock	Pin From 01-9-2006	£7.15 £5.96
7	MO122524321/0 Out of stock	Pin To 31-8-2006	£4.82 £4.02
8	MO322110381/0 Out of stock	Hub Cap Grey Grey	£3.18 £2.65
9	MO322120109/0 Out of stock	Wheels Crown	£6.36 £5.30
10	MO322170622/0 Out of stock	Spacer From 01-9-2006	£1.40 £1.17
10	MO112521370/0 Out of stock	Washer To 31-8-2006	£1.48 £1.23
12	MO381007355/0 Out of stock	Wheel To 31-8-2006	£16.16 £13.47
12	MO381007468/0 In stock	Wheel Ø 190 From 01-9-2016	£14.39 £11.99
13	MO112523050/0 In stock	Washer	£1.48 £1.23
14	MO112735599/0 Out of stock	Screw	£1.48 £1.23
15	MO322110687/0 Out of stock	Hub Cap Grey Grey	£2.42 £2.02
18	MO122675100/0 Out of stock	Washer D.12.6 X 24 X 0.6	£1.74 £1.45
