5010 PD SILENT - 2008 - 291552043/M08 - Mountfield Rotary Mower Blade Diagram

Name: 5010 PD SILENT - 2008 - 291552043/M08 - Mountfield Rotary Mower Blade Diagram
SKU: 5010_pd_silent_291552043_m08_blade-group
Price: 1.17 GBP
Availability: InStock

Part No. 5010_pd_silent_291552043_m08_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

5010 PD SILENT - 2008 - 291552043/M08 - Mountfield Rotary Mower Blade Diagram

Description

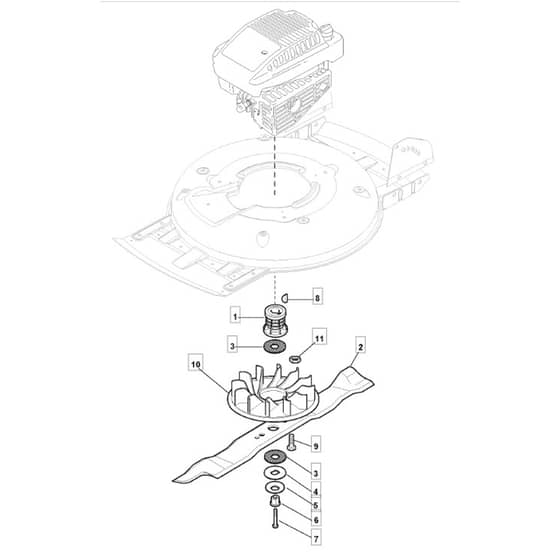

Mountfield 5010 PD SILENT Parts Diagram

Product Name - MULCHING 5010 PD SILENT

Model Year - 2008

Model Type - MCS 504 TR SIL

Art.N - 291552043/M08

	Part No.	Details
1	MO122465611/0 Available to backorder	Hub With Pulley Ø 22.2	£19.18 £15.98
2	MO181004148/0 Available to backorder	Blade	£14.56 £12.13
3	MO322672110/1 In stock	Washer	£1.84 £1.53
4	MO322672105/0 In stock	Washer	£3.55 £2.96
5	MO112508120/0 In stock	Cup Spring	£3.52 £2.93
6	MO122041940/0 Available to backorder	Bushing	£6.62 £5.52
7	MO112736850/0 Available to backorder	Screw	£2.40 £2.00
8	MO112139100/0 In stock	Key	£1.55 £1.29
9	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
11	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
