4830 PD BW - 2008 - 294487033/M08 - Mountfield Rotary Mower Blade Diagram

Description

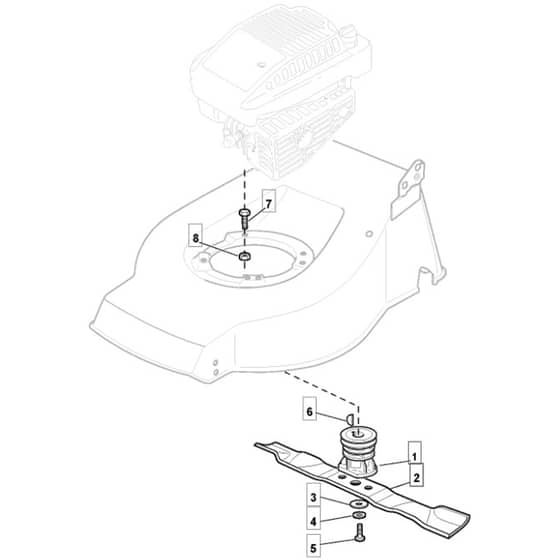

Mountfield 4830 PD BW Parts Diagram

Product Name - 4830 PD BW

Model Year - 2008

Model Type - TDL 484 W TR

Art.N - 294487033/M08

	Part No.	Details
1	MO122465608/3 In stock	Hub With Pulley	£9.23 £7.69
2	MO181004346/3 In stock	Left Mulching. Blade From 01-9-2001	£12.72 £10.60
2	MO181004397/0 Available to backorder	Blade Winged	£22.88 £19.07
3	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139150/0 In stock	Feather. Crankshaft Ø 25 From 01-9-2007	£2.11 £1.76
7	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
8	MO112154210/0 Available to backorder	Self-Lock Winged Nut M8 Din 6927	£1.70 £1.42
