4820 PD BW EL 4S - 2015 - 299487523/MTF - Mountfield Rotary Mower Upper Handle Diagram

Name: 4820 PD BW EL 4S - 2015 - 299487523/MTF - Mountfield Rotary Mower Upper Handle Diagram
SKU: 4820_pd_bw_el_4s_299487523_mtf_upper_handle-group
Price: 1.29 GBP
Availability: InStock

Part No. 4820_pd_bw_el_4s_299487523_mtf_upper_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4820 PD BW EL 4S - 2015 - 299487523/MTF - Mountfield Rotary Mower Upper Handle Diagram

Description

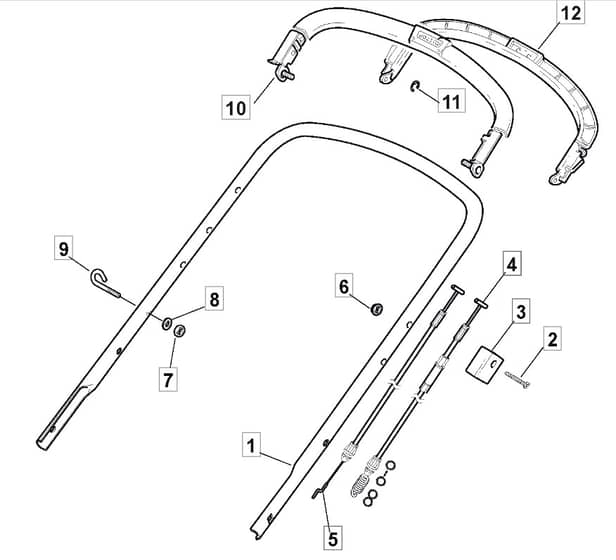

Mountfield 4820 PD BW EL 4S Parts Diagram

Model Year - 2015

Model Type - NTL 484 W TR/E 4S

Art.N - 299487523/MTF

	Part No.	Details
1	MO381006803/0 Available to backorder	Handle. Upper Part	£39.42 £32.85
2	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
3	MO322551685/0 In stock	Cable Holder Ø22	£7.52 £6.27
4	MO381030055/0 In stock	Cable Rear Drive	£21.66 £18.05
5	MO181030056/1 In stock	Cable	£11.95 £9.96
7	MO112154510/0 In stock	Nut	£1.55 £1.29
8	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
9	MO122430313/0 In stock	Guide Spring	£3.92 £3.27
10	MO381003330/0 Available to backorder	Lever. Engine Brake	£66.16 £55.13
11	MO112000930/0 In stock	Benzing Ring	£1.55 £1.29
12	MO381003297/1 In stock	Drive Control Lever	£22.10 £18.42
