4810 PD - 2010 - 294485043/M09 - Mountfield Rotary Mower Throttle Diagram

Name: 4810 PD - 2010 - 294485043/M09 - Mountfield Rotary Mower Throttle Diagram
SKU: 4810_pd_294485043_m09_throttle-group
Price: 1.27 GBP
Availability: InStock

Part No. 4810_pd_294485043_m09_throttle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

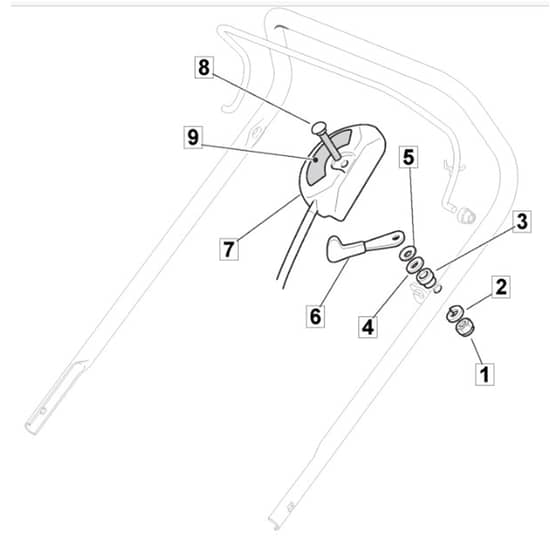

4810 PD - 2010 - 294485043/M09 - Mountfield Rotary Mower Throttle Diagram

Description

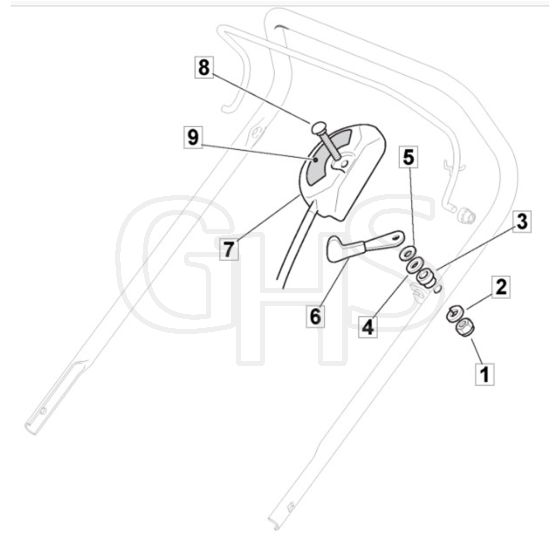

Mountfield 4810 PD Parts Diagram

Product Name - 4810 PD

Model Year - 2010

Model Type - TD 484 TR

Art.N - 294485043/M09

	Part No.	Details
1	MO112291000/0 Available to backorder	Nut	£1.55 £1.29
2	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
4	MO112521360/0 In stock	Washer	£1.55 £1.29
5	MO112508100/0 Available to backorder	Cup Spring	£1.55 £1.29
6	MO381007279/1 Available to backorder	Throttle Lever - St.Honda.Tecumseh.B&S 625-675-675Es-700-750 Series To 31-8-2017	£1.52 £1.27
7	MO481007080/0 In stock	Throttle Cable	£24.49 £20.41
8	MO112815000/0 Available to backorder	Screw	£1.55 £1.29
9	MO114356702/0 Available to backorder	Throttle Decal	£1.97 £1.64
