4810 PD - 2008 - 294485043/M08 - Mountfield Rotary Mower Deck Diagram

Name: 4810 PD - 2008 - 294485043/M08 - Mountfield Rotary Mower Deck Diagram
SKU: 4810_pd_294485043_m08_deck-group
Price: 1.29 GBP
Availability: InStock

Part No. 4810_pd_294485043_m08_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4810 PD - 2008 - 294485043/M08 - Mountfield Rotary Mower Deck Diagram

Description

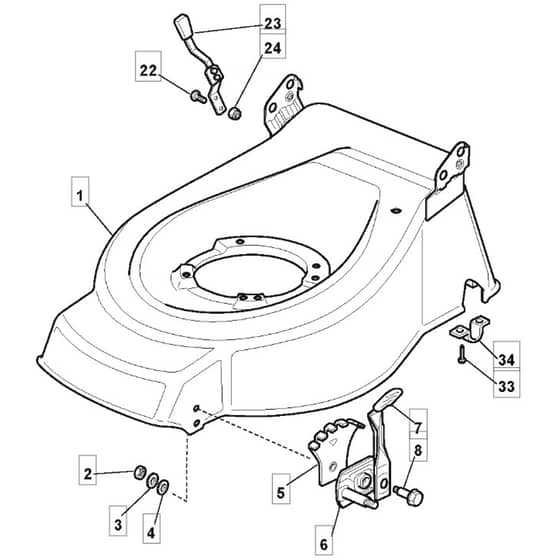

Mountfield 4810 PD Parts Diagram

Product Name - 4810 PD

Model Year - 2008

Model Type - TD 484 TR

Art.N - 294485043/M08

	Part No.	Details
3	MO112583500/0 In stock	Grower	£1.55 £1.29
4	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
5	MO322735547/0 Available to backorder	Sector. Height Adjustment	£2.24 £1.87
6	MO381005082/0 In stock	Wheel Support	Was £17.18 £14.32 Special Price £10.79 £8.99
7	MO481003285/1 In stock	Lever	£19.52 £16.27
8	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
22	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
23	MO381003279/2 Available to backorder	Adjustment Lever	£32.38 £26.98
24	MO112154330/0 In stock	Nut	£1.55 £1.29
33	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
34	MO322545152/0 In stock	Axle Bracket	£1.55 £1.29
