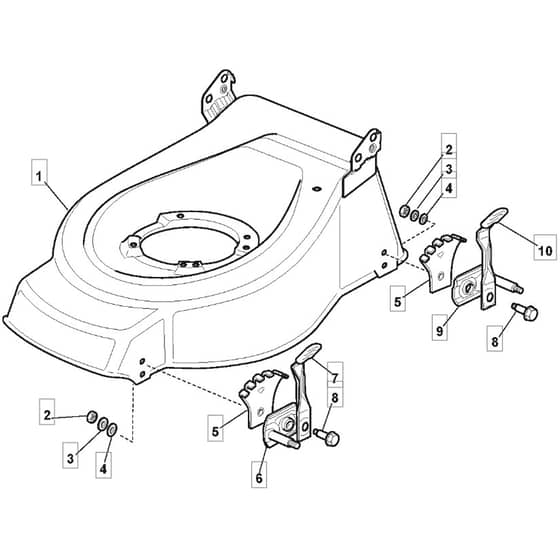

4810 HP - 2010 - 294484043/M09 - Mountfield Rotary Mower Deck Diagram

Name: 4810 HP - 2010 - 294484043/M09 - Mountfield Rotary Mower Deck Diagram
SKU: 4810_hp_294484043_m09_deck-group
Price: 1.29 GBP
Availability: InStock

Part No. 4810_hp_294484043_m09_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4810 HP - 2010 - 294484043/M09 - Mountfield Rotary Mower Deck Diagram

Description

Mountfield 4810 HP Parts Diagram

Product Name - 4810 HP

Model Year - 2010

Model Type - TD 484

Art.N - 294484043/M09

	Part No.	Details
2	MO112293200/0 In stock	Nut	£1.55 £1.29
3	MO112583500/0 In stock	Grower	£1.55 £1.29
4	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
5	MO322735547/0 Available to backorder	Sector. Height Adjustment	£2.24 £1.87
6	MO381005082/0 In stock	Wheel Support	Was £17.18 £14.32 Special Price £10.79 £8.99
7	MO481003285/1 In stock	Lever	£19.52 £16.27
8	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
9	MO381005084/0 Available to backorder	Wheel Support	£8.18 £6.82
10	MO481003286/0 Available to backorder	Height Adjust Lever	£4.78 £3.98
