480R ES - 2006-2007 - 292505523/MOR - Mountfield Rotary Mower Electric Start Diagram

Name: 480R ES - 2006-2007 - 292505523/MOR - Mountfield Rotary Mower Electric Start Diagram
SKU: 480r_es_292505523_mor_electric_start-group
Price: 1.29 GBP
Availability: InStock

Part No. 480r_es_292505523_mor_electric_start-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

480R ES - 2006-2007 - 292505523/MOR - Mountfield Rotary Mower Electric Start Diagram

Description

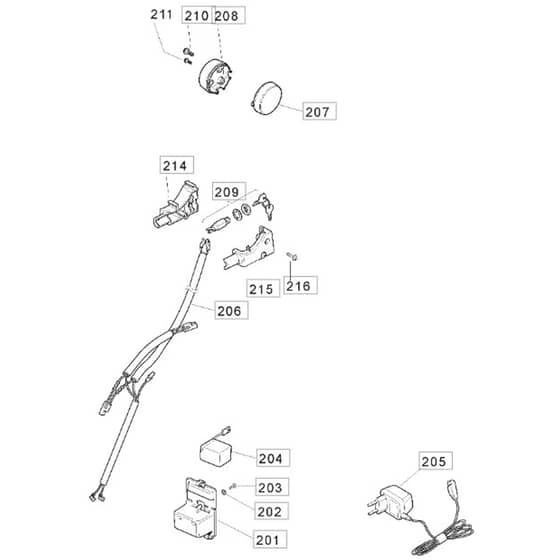

Mountfield 480R ES Parts Diagram

Product Name - 480R ES

Model Year - 2006-2007

Model Type - TU 504 TR/E-R 4S

Art.N - 292505523/MOR

	Part No.	Details
1	MO322109533/0 Available to backorder	Battery Box	£14.22 £11.85
202	MO112523040/0 In stock	Washer	£1.55 £1.29
204	MO118120064/0 In stock	Battery	£46.48 £38.73
205	MO118204120/1LC In stock	Charger (Uk)(118204121.0) UK-type _ 480R.ES . 550R.ES	£29.50 £24.58
208	MO322722800/0 Available to backorder	Housing	£10.50 £8.75
209	MO118450051/0 In stock	Starting Switch	£18.59 £15.49
210	MO112728702/0 Available to backorder	Screw	£1.55 £1.29
211	MO112728706/0 In stock	Screw	£1.60 £1.33
216	MO112728300/0 Available to backorder	Screw Pt Wn 1451 K50X22	£1.55 £1.29
