Description

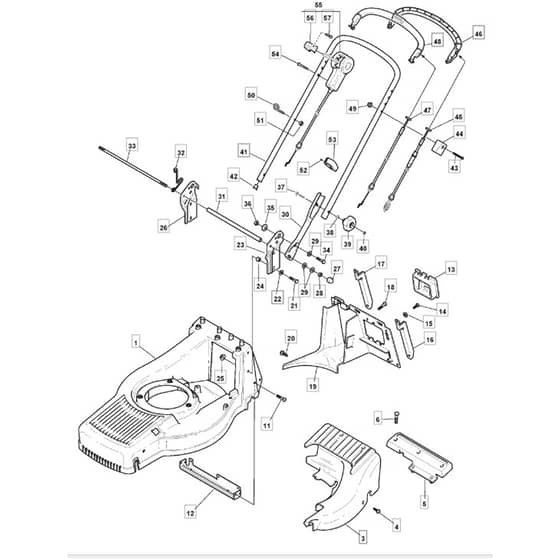

Mountfield 480R Parts Diagram

Product Name - 480R

Model Year - 2006-2007

Model Type - TU 504 TR-R 4S

Art.N - 292505023/MOR

Ref. Img. Part No. Details
  11 Screw MO112735592/0
Screw
Out of stock
£1.90 £1.58

  13 Battery Cover MO322109531/0
Battery Cover
Out of stock
£48.79 £40.66

  14 Screw MO112728124/0
Screw
Out of stock
£1.49 £1.24

  15 Washer MO112523040/0
Washer
In stock
£1.63 £1.36

  18 Screw MO112735664/0
Screw
Out of stock
£1.36 £1.13

  19 Rear Conveyor Assy MO322108278/0
Rear Conveyor Assy
Out of stock
£46.06 £38.38

  20 Screw MO112728300/0
Screw
Out of stock
£1.49 £1.24

  21 Screw MO112793102/0
Screw
In stock
£1.49 £1.24

  25 Nut MO112293201/0
Nut
In stock
£1.63 £1.36

  25 Grip MO322399805/0
Grip
In stock
£12.48 £10.40

  26 Brake MO118550021/0
Brake
Out of stock
£32.51 £27.09

  26 Screw MO9838-9516-12
Screw
Out of stock
£2.04 £1.70

  252 Height Sector MO322735553/0
Height Sector
Out of stock
£8.74 £7.28

  252 Height Adjusting Plate 480R480R.ES MO322735563/0
Height Adjusting Plate 480R480R.ES
In stock
£13.68 £11.40

  253 Front Axle 480R480R.ES MO381002845/0
Front Axle 480R480R.ES
Out of stock
£33.10 £27.58

  253 Front Axle 550R550R.ES MO381002847/0
Front Axle 550R550R.ES
Out of stock
£33.10 £27.58

  256 Spring-Wheel Axle 480R480R.ES MO122430210/0
Spring-Wheel Axle 480R480R.ES
Out of stock
£1.63 £1.36

  257 Washer 480R480R.ES MO112521370/0
Washer 480R480R.ES
Out of stock
£1.49 £1.24

  258 Ball Bearing 480R480R.ES MO122122206/0
Ball Bearing 480R480R.ES
In stock
£1.75 £1.46

  258 Ball Bearing MO122122201/0
Ball Bearing
In stock
£2.17 £1.81

  259 Wheel 480R480R.ES MO381007351/0
Wheel 480R480R.ES
In stock
£12.48 £10.40

  260 Flat Washer 480R480R.ES MO112521460/0
Flat Washer 480R480R.ES
Out of stock
£1.36 £1.13

  259 Wheel MO1111-2784-01
Wheel
In stock
£16.92 £14.10

  261 Screw 480R480R.ES MO112735662/1
Screw 480R480R.ES
Out of stock
£2.30 £1.92
