Mountfield 470 SP Parts Diagram

Product Name - 470 SP

Model Year - 2003

Model Type -

Art.N - 24-3881-99

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  2 Shaft-Backside MO122033393/0
Shaft-Backside
 Out of stock
£24.11 £20.09

  3 Locating Pin MO122753001/0
Locating Pin
 Out of stock
£1.49 £1.24

  4 Wheel Cover MO322600106/1
Wheel Cover
 Out of stock
£6.50 £5.42

  5 Lever. Height Adjustment MO381003303/0
Lever. Height Adjustment
 Out of stock
£15.96 £13.30

  6 Wheel MO381007361/0
Wheel
 Out of stock
£19.80 £16.50

  7 Washer MO112521370/0
Washer
 Out of stock
£1.49 £1.24

  8 Rear Baffle MO322108272/2
Rear Baffle
 Out of stock
£17.16 £14.30

  10 Rear Flap (Black) MO322600099/2
Rear Flap (Black)
 Out of stock
£4.60 £3.83

  11 Shaft For Rear Flap MO122517858/0
Shaft For Rear Flap
 Out of stock
£5.15 £4.29

  12 Spring-Rear Flap MO122450431/0
Spring-Rear Flap
 Out of stock
£4.82 £4.02

  13 Rear Flap Holder (Black) MO322785136/1
Rear Flap Holder (Black)
 Out of stock
£3.12 £2.60

  14 Front Baffle MO322108271/0
Front Baffle
 Out of stock
£13.00 £10.83

  15 Pin MO122534122/0
Pin
 Out of stock
£4.20 £3.50

  16 Lever. Height Adjustment Pos. 15 incl. _ 344 716 MO381003306/0
Lever. Height Adjustment Pos. 15 incl. _ 344 716
 In stock
£6.10 £5.08

  17 Wheel Plate MO322600170/0
Wheel Plate
 In stock
£9.24 £7.70

  18 Sector MO322735557/0
Sector
 Out of stock
£3.38 £2.82

  19 Shoulder Bolt MO122524324/0
Shoulder Bolt
 In stock
Was £4.07 £3.39 Special Price £2.65 £2.21

  20 Wheel MO322686091/1
Wheel
 Out of stock
£6.12 £5.10

  21 Hub Cap (White) MO322110320/1
Hub Cap (White)
 Out of stock
£8.12 £6.77

  23 Nut MO122131750/0
Nut
 In stock
£1.90 £1.58

  24 Washer MO112521350/0
Washer
 In stock
£1.63 £1.36

  25 Bolt MO112760605/0
Bolt
 In stock
£3.25 £2.71

  26 Screw MO9898-0845-12
Screw
 Out of stock
£2.44 £2.03

  27 Socket Wrench MO112400050/1
Socket Wrench
 Out of stock
£3.65 £3.04

  28 Washer MO112521330/0
Washer
 Out of stock
£1.49 £1.24

  30 Knob MO122399900/0
Knob
 In stock
£1.63 £1.36

  31 Nut MO112293200/0
Nut
 In stock
£1.63 £1.36

  32 Nut MO112292100/0
Nut
 Out of stock
£1.36 £1.13

  33 Handle Tube-Lower MO381006582/0
Handle Tube-Lower
 Out of stock
£59.59 £49.66

  35 Opc Lever (Red) MO322321700/1
Opc Lever (Red)
 In stock
£3.24 £2.70

  36 Lever. Rear Drive MO322321701/0
Lever. Rear Drive
 Out of stock
£2.17 £1.81

  37 Grassbag-Upper (Black) Pos. 68 incl. _ 344 716 MO322486122/0
Grassbag-Upper (Black) Pos. 68 incl. _ 344 716
 Out of stock
£25.74 £21.45

  38 Lower Grass Bag (Black) MO322486128/0
Lower Grass Bag (Black)
 Out of stock
£32.51 £27.09

  39 Screw MO112793701/0
Screw
 Out of stock
£1.63 £1.36

  40 Nut MO9716-0831-02
Nut
 Out of stock
£6.91 £5.76

  41 Lock Washer MO112540060/0
Lock Washer
 Out of stock
£1.49 £1.24

  42 Key MO112139100/0
Key
 In stock
£1.63 £1.36

  44 Blade MO181004121/0
Blade
 In stock
£12.43 £10.36

  45 Screw MO112728689/0
Screw
 Out of stock
£1.36 £1.13

  46 Spring Washer MO112369600/0
Spring Washer
 Out of stock
£16.72 £13.93

  47 Screw MO112735698/0
Screw
 In stock
£1.75 £1.46

  48 Screw MO112790781/0
Screw
 Out of stock
£1.49 £1.24

  50 Spring MO122450432/0
Spring
 In stock
£1.90 £1.58

  51 Pin MO112622620/0
Pin
 Out of stock
£1.36 £1.13

  52 Circlip MO112608520/0
Circlip
 Out of stock
£2.70 £2.25

  53 Washer MO322160520/0
Washer
 Out of stock
£1.49 £1.24

  54 Gear Wheel MO122570125/0
Gear Wheel
 In stock
£14.09 £11.74

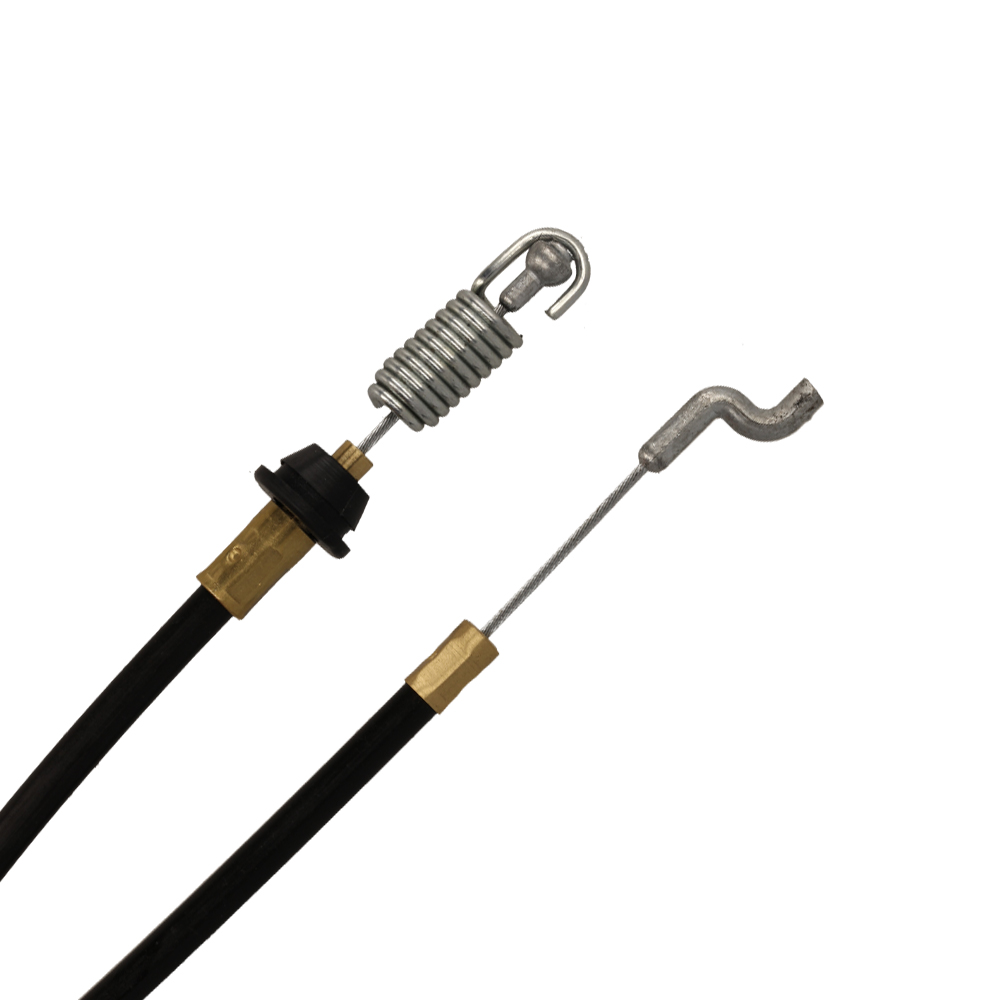

  55 Clutch Cable Pos. 72 incl. _ 344 716 MO1117-1191-01
Clutch Cable Pos. 72 incl. _ 344 716
 In stock
£27.00 £22.50

  56 Support MO322806521/0
Support
 Out of stock
£1.75 £1.46

  57 Locating Pin MO112645710/0
Locating Pin
 Out of stock
£2.04 £1.70

  59 V-Belt MO135064000/0
V-Belt
 Out of stock
£10.73 £8.94

  60 Bolt MO112775000/0
Bolt
 Out of stock
£1.90 £1.58

  61 Washer MO122671651/0
Washer
 In stock
£1.90 £1.58

  62 Belt Cover MO322060212/0
Belt Cover
 In stock
£7.32 £6.10

  65 Battery Holder MO322109531/0
Battery Holder
 Out of stock
£48.79 £40.66

  66 Ball Bearing MO122122202/0
Ball Bearing
 Out of stock
£2.04 £1.70

  67 Key MO122076645/0
Key
 In stock
£1.63 £1.36

  69 Pulley MO122601912/0
Pulley
 Out of stock
£33.86 £28.22

  70 Pin MO112645705/0
Pin
 Out of stock
£1.63 £1.36

  72 Grommet MO118564520/1
Grommet
 Out of stock
£4.60 £3.83

  73 Opc Cable MO181000661/0
Opc Cable
 Out of stock
£17.47 £14.56

  75 Use 1117-1392-01 MO181003801/1
Use 1117-1392-01
 In stock
£3.25 £2.71

  76 Wheel Bolt MO122524322/0
Wheel Bolt
 Out of stock
£4.20 £3.50

  77 Bushing MO322034509/0
Bushing
 In stock
£1.75 £1.46

  78 Screw MO118562804/0
Screw
 Out of stock
£3.65 £3.04


Description

Mountfield 470 SP Parts Diagram

Product Name - 470 SP

Model Year - 2003

Model Type -

Art.N - 24-3881-99
