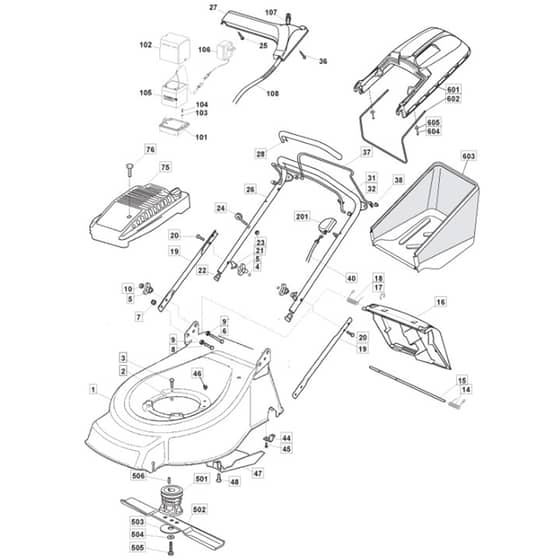

46R PD - - 23-3781-72 - Mountfield Rotary Mower Grass Bag Diagram

Name: 46R PD - - 23-3781-72 - Mountfield Rotary Mower Grass Bag Diagram
SKU: 46r_pd_23_3781_72_grass_bag-group
Price: 1.16 GBP
Availability: InStock

Part No. 46r_pd_23_3781_72_grass_bag-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

46R PD - - 23-3781-72 - Mountfield Rotary Mower Grass Bag Diagram

Description

Mountfield 46R PD Parts Diagram

Product Name - 46 R PD

Model Year -

Model Type -

Art.N - 23-3781-72

	Part No.	Details
2	MO112293201/0 In stock	Nut	£1.70 £1.42
3	MO9997-0860-16 Available to backorder	Screw L . 60 mm	£1.55 £1.29
4	MO112293202/0 Available to backorder	Nut	£1.97 £1.64
5	MO122399900/0 In stock	Knob	£1.55 £1.29
6	MO112793701/0 In stock	Screw	£1.55 £1.29
7	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
8	MO9997-0816-16 In stock	Screw	£1.55 £1.29
9	MO322041955/0 Available to backorder	Bushing	£1.63 £1.36
10	MO112293200/0 In stock	Nut	£1.55 £1.29
14	MO122450420/1 Available to backorder	Spring-Lh	£1.97 £1.64
15	MO122517906/1 Available to backorder	Pivot Pin	£14.66 £12.22
16	MO381008021/3 Available to backorder	Flap	£20.77 £17.31
17	MO112000930/0 In stock	Snap Ring	£1.55 £1.29
18	MO122450410/1 Available to backorder	Spring-Rh	£12.13 £10.11
21	MO122680006/1 In stock	Washer	£1.84 £1.53
22	MO118566112/0 Available to backorder	Cap	£1.55 £1.29
23	MO112154330/0 In stock	Nut	£1.55 £1.29
24	MO122430309/0 Available to backorder	Rope Guide	£3.10 £2.58
28	MO122291050/0 Available to backorder	Hand Grip-Black	£14.22 £11.85
31	MO181003291/3 Available to backorder	Lever. Thread Engine Brake	£14.93 £12.44
32	MO122041966/0 In stock	Bushing	£1.55 £1.29
37	MO181003288/1 Available to backorder	Drive Lever	£11.60 £9.67
38	MO322041965/1 Available to backorder	Bushing	£1.63 £1.36
40	MO181000625/0 In stock	Cable. Thread Engine Brake	£12.67 £10.56
44	MO322545152/0 In stock	Plate	£1.55 £1.29
45	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
46	MO322291150/0 Available to backorder	Rubber Insert	£1.55 £1.29
47	MO122060195/0 In stock	Belt Protection	£4.78 £3.98
48	MO112728903/0 In stock	Screw	£1.39 £1.16
76	MO118562804/0 Available to backorder	Screw	£3.79 £3.16
201	MO122601000/0 Available to backorder	Protection	£1.63 £1.36
501	MO122465607/4 In stock	Blade Holder W.Pulley	£9.30 £7.75
502	MO181004346/3 In stock	Blade	£12.72 £10.60
503	MO122160400/0 In stock	Elastic Washer	£1.84 £1.53
504	MO112523080/0 In stock	Washer	£1.55 £1.29
505	MO112735698/0 In stock	Screw	£1.84 £1.53
506	MO112139100/0 In stock	Key	£1.55 £1.29
602	MO122608527/0 Available to backorder	Wire Frame	£11.41 £9.51
603	MO181002227/0 Available to backorder	Grass Bag	£52.08 £43.40
604	MO112728705/0 Available to backorder	Screw	£2.69 £2.24
605	MO112523050/0 In stock	Washer	£1.57 £1.31
