4620 PD - 2009 - 299274623/MEE - Mountfield Rotary Mower Upper Handle Diagram

Description

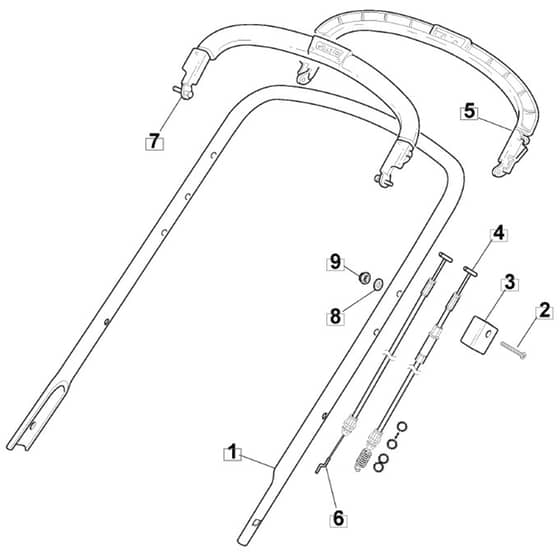

Mountfield 4620 PD Parts Diagram

Product Name - 4620 PD

Model Year - 2009

Model Type - ESL 464 TR

Art.N - 299274623/MEE

	Part No.	Details
1	MO381006579/1 Available to backorder	Handle	£16.48 £13.73
2	MO112689500/0 Available to backorder	Screw	£1.63 £1.36
3	MO322551685/0 In stock	Cable Holder	£7.52 £6.27
4	MO381000659/0 In stock	Cable Rear Drive	£19.36 £16.13
5	MO381003297/1 In stock	Driving Lever	£22.10 £18.42
6	MO181000657/0 Available to backorder	Cable. Thread Engine Brake - B&S 450-500 Engine.Honda Engine	£15.85 £13.21
7	MO381003298/1 In stock	Lever	£32.38 £26.98
8	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
9	MO112292100/0 Available to backorder	Hexagon Nut M6	£1.39 £1.16
