461 PD ES - 2010-2011 - 299482543/M10 - Mountfield Rotary Mower Engine Diagram

Name: 461 PD ES - 2010-2011 - 299482543/M10 - Mountfield Rotary Mower Engine Diagram
SKU: 461_pd_es_299482543_m10_engine-group
Price: 2.35 GBP
Availability: InStock

Part No. 461_pd_es_299482543_m10_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

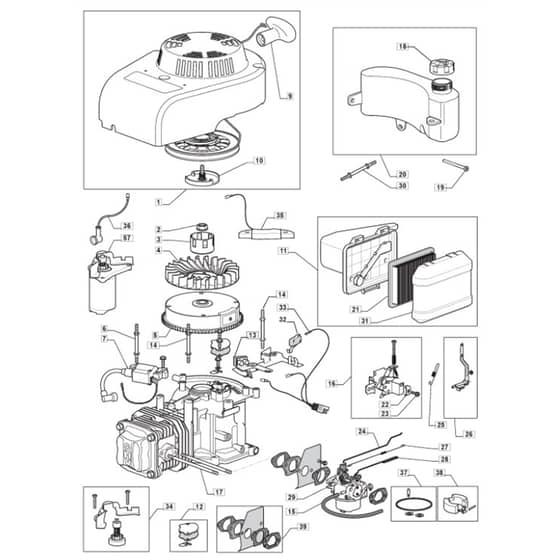

461 PD ES - 2010-2011 - 299482543/M10 - Mountfield Rotary Mower Engine Diagram

Description

Mountfield 461 PD ES Parts Diagram

Product Name - 461 PD ES

Model Year - 2010-2011

Model Type - NTL 484 TR/E

Art.N - 299482543/M10

	Part No.	Details
1	MO118550276/1 In stock	Starter Assy	£52.08 £43.40
2	MO118550336/0 Available to backorder	Nut	£6.05 £5.04
3	MO118550335/0 Available to backorder	Starter Cup	£22.51 £18.76
4	MO118550254/0 Available to backorder	Flywheel Fan	£19.98 £16.65
6	MO118550301/0 Available to backorder	Stud Bolt	£6.62 £5.52
7	MO118550255/1 In stock	Electronic Coil	£51.17 £42.64
9	MO118550274/0 Available to backorder	Starter Handle	£15.49 £12.91
10	MO118550275/1 In stock	Starter Pawl Set	£12.25 £10.21
11	MO118550737/0 In stock	Air Cleaner Assy	£23.65 £19.71
13	MO118550373/0 Available to backorder	Flywheel Brake Assy	£41.57 £34.64
13	MO118550400/0 Available to backorder	Micro	£24.70 £20.58
15	MO118550340/0 In stock	Fuel Pipe	£6.32 £5.27
16	MO118550259/0 Available to backorder	Remote Control Assy	£29.57 £24.64
17	MO118550298/0 Available to backorder	Stud Bolt	£6.77 £5.64
18	MO118552820/0 In stock	Fuel Cap	£6.35 £5.29
19	MO118550314/0 In stock	Fuel Filter	£4.37 £3.64
20	MO118550316/1 Available to backorder	Fuel Tank	£42.23 £35.19
21	MO118550257/0 In stock	Air Filter	£10.45 £8.71
23	MO118550338/0 Available to backorder	Screw	£7.02 £5.85
24	MO118550397/0 Available to backorder	Governor Link	£2.94 £2.45
25	MO118550260/0 In stock	Spring	£3.92 £3.27
26	MO118550266/0 Available to backorder	Arm Governor Assy	£15.07 £12.56
27	MO118550263/0 In stock	Spring	£2.82 £2.35
28	MO118550264/0 In stock	Choke Control Rod	£3.52 £2.93
29	MO118550251/0 Available to backorder	Carburetor	£57.71 £48.09
30	MO118550315/0 Available to backorder	Stud Bolt	£7.74 £6.45
31	MO118550396/0 Available to backorder	Air Cleaner Cover	£24.64 £20.53
33	MO118550393/0 Available to backorder	Switch Wires	£35.20 £29.33
34	MO118550402/0 Available to backorder	Kit Repair	£42.22 £35.18
35	MO118550420/0 Available to backorder	Coil Assy. Charge	£43.09 £35.91
36	MO118550395/0 Available to backorder	Switch Wires	£35.20 £29.33
37	MO118550389/0 In stock	Kit Repair	£9.65 £8.04
38	MO118550388/0 Available to backorder	Kit Repair. Carburettor	£14.64 £12.20
39	MO118550248/0 In stock	Gasket Carburettor Assy	£19.86 £16.55
57	MO118550401/1 Available to backorder	Start Motor Assy	£148.14 £123.45
