460R PD ES - 2006-2007 - 294487523/MO6 - Mountfield Rotary Mower Blade Diagram

Name: 460R PD ES - 2006-2007 - 294487523/MO6 - Mountfield Rotary Mower Blade Diagram
SKU: 460r_pd_es_294487523_mo6_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. 460r_pd_es_294487523_mo6_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

460R PD ES - 2006-2007 - 294487523/MO6 - Mountfield Rotary Mower Blade Diagram

Description

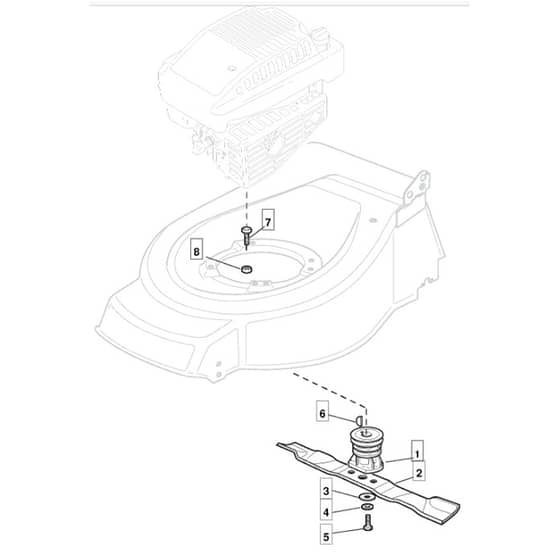

Mountfield 460R PD ES Parts Diagram

Product Name - 460R PD ES

Model Year - 2006-2007

Model Type - TD 484 TR/E

Art.N - 294487523/MO6

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley	£9.30 £7.75
2	MO181004346/3 In stock	Left Mulching. Blade	£12.72 £10.60
3	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139100/0 In stock	Key	£1.55 £1.29
7	MO112793701/0 In stock	Screw	£1.55 £1.29
7	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
8	MO112293201/0 In stock	Hexagon Nut M8 With Exagonal Flange	£1.70 £1.42
8	MO112155000/0 In stock	Nut	£1.55 £1.29
