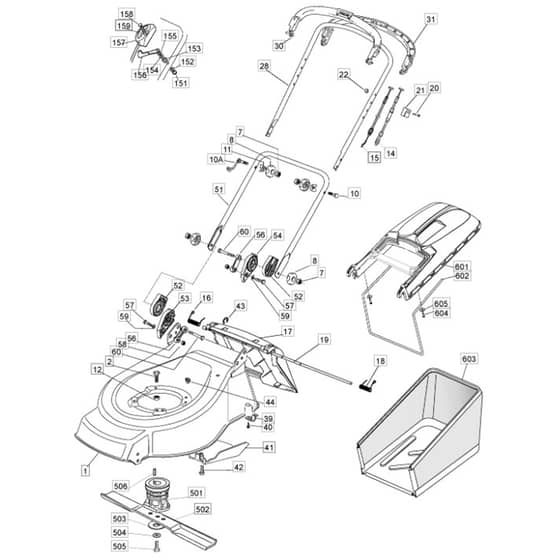

460 PD - 2006-2007 - 294485023/MO6 - Mountfield Rotary Mower Handle Diagram

460 PD - 2006-2007 - 294485023/MO6 - Mountfield Rotary Mower Handle Diagram
460 PD - 2006-2007 - 294485023/MO6 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield 460 PD Parts Diagram

Product Name - 460 PD

Model Year - 2006-2007

Model Type - TD 484 TR

Art.N - 294485023/MO6

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Nut MO112293200/0
Nut
 Out of stock
£1.63 £1.36

  2 Screw MO9997-0860-16
Screw
 Out of stock
£1.49 £1.24

  7 Nut 460PD MO112293202/0
Nut 460PD
 Out of stock
£1.90 £1.58

  8 Knob 460PD MO122399900/0
Knob 460PD
 Out of stock
£1.63 £1.36

  10 Screw 460PD MO112819201/0
Screw 460PD
 Out of stock
£2.70 £2.25

  10 10A Screw 460PD MO181003801/1
10A Screw 460PD
 Out of stock
£3.25 £2.71

  11 Washer 460PD MO122680006/1
Washer 460PD
 In stock
£1.75 £1.46

  12 Lock Nut MO112155000/0
Lock Nut
 Out of stock
£1.63 £1.36

  12 Nut MO112293201/0
Nut
 In stock
£1.63 £1.36

  14 Clutch Cable 460PD MO381000709/2
Clutch Cable 460PD
 In stock
£19.09 £15.91

  15 Cable MO181000708/0
Cable
 Out of stock
£14.09 £11.74

  15 Cable. Thread Engine Brake 460PD.ES MO181000718/0
Cable. Thread Engine Brake 460PD.ES
 Out of stock
£38.14 £31.78

  15 Cable MO181000720/1
Cable
 Out of stock
£12.73 £10.61

  16 Spring-Rh 460PD MO122450410/1
Spring-Rh 460PD
 Out of stock
£11.66 £9.72

  17 Flap 460PD MO381008021/3
Flap 460PD
 Out of stock
£19.98 £16.65

  18 Spring-Lh 460PD MO122450420/1
Spring-Lh 460PD
 Out of stock
£1.90 £1.58

  19 Pivot Pin 460PD MO122517906/1
Pivot Pin 460PD
 Out of stock
£14.11 £11.76

  20 Screw 460PD MO112689500/0
Screw 460PD
 Out of stock
£1.63 £1.36

  21 Cable Holder 460PD MO322551685/0
Cable Holder 460PD
 In stock
£6.84 £5.70

  22 Lock Nut 460PD MO112154510/0
Lock Nut 460PD
 In stock
£1.63 £1.36

  28 Handle-Upper 460PD MO381006803/0
Handle-Upper 460PD
 Out of stock
£37.93 £31.61

  30 Control Handle (Eng.Brake 460PD MO381003298/1
Control Handle (Eng.Brake 460PD
 In stock
£29.52 £24.60

  31 Clutch Lever 460PD MO381003297/1
Clutch Lever 460PD
 In stock
£20.16 £16.80

  39 Plate 460PD MO322545152/0
Plate 460PD
 Out of stock
£1.63 £1.36

  40 Screw 460PD MO112731350/0
Screw 460PD
 Out of stock
£1.49 £1.24

  41 Belt Protection 510PD MO122060193/0
Belt Protection 510PD
 In stock
£5.16 £4.30

  41 Belt Protection 460PD MO122060192/0
Belt Protection 460PD
 Out of stock
£5.42 £4.52

  42 Screw 460PD MO112727791/0
Screw 460PD
 Out of stock
£1.63 £1.36

  43 Circlip 460PD MO112000930/0
Circlip 460PD
 Out of stock
£1.63 £1.36

  44 Rubber Insert 460PD MO322291150/0
Rubber Insert 460PD
 Out of stock
£1.49 £1.24

  51 Handle-Lower 460PD MO381006532/0
Handle-Lower 460PD
 Out of stock
£36.56 £30.47

  52 Support. External 460PD MO322785081/1
Support. External 460PD
 Out of stock
£4.60 £3.83

  53 Right Internal Support 460PD MO122785082/0
Right Internal Support 460PD
 Out of stock
£3.25 £2.71

  54 Left Internal Support 460PD MO122785083/1
Left Internal Support 460PD
 Out of stock
£3.25 £2.71

  56 Plate-Inside 460PD MO122551575/0
Plate-Inside 460PD
 Out of stock
£1.49 £1.24

  57 Screw 460PD MO112793701/0
Screw 460PD
 Out of stock
£1.63 £1.36

  59 Washer 460PD MO112521350/0
Washer 460PD
 Out of stock
£1.63 £1.36

  60 Screw 460PD MO112691810/0
Screw 460PD
 Out of stock
£1.75 £1.46

  151 Nut 460PD MO112291000/0
Nut 460PD
 Out of stock
£1.49 £1.24

  152 Grower 460PD MO112581500/0
Grower 460PD
 Out of stock
£1.49 £1.24

  154 Washer 460PD MO112521360/0
Washer 460PD
 In stock
£1.63 £1.36

  155 Spring Washer 460PD MO112508100/0
Spring Washer 460PD
 Out of stock
£1.49 £1.24

  156 Throttle Lever 460PD MO381007279/1
Throttle Lever 460PD
 Out of stock
£1.49 £1.24

  157 Throttle Cable 460PD MO481007080/0
Throttle Cable 460PD
 In stock
£22.32 £18.60

  158 Screw 460PD MO112815000/0
Screw 460PD
 Out of stock
£1.49 £1.24

  159 Label 462PD MO114356702/0
Label 462PD
 Out of stock
£1.90 £1.58

  501 Blade Holder W.Pulley 460PD MO122465607/4
Blade Holder W.Pulley 460PD
 In stock
£8.52 £7.10

  502 Blade 460PD MO181004346/3
Blade 460PD
 In stock
£13.75 £11.46

  502 Blade 510PD MO181004381/1
Blade 510PD
 In stock
£15.72 £13.10

  503 Elastic Washer 460PD MO122160400/0
Elastic Washer 460PD
 In stock
£1.75 £1.46

  504 Washer 460PD MO112523080/0
Washer 460PD
 In stock
£1.63 £1.36

  505 Screw 460PD MO112735698/0
Screw 460PD
 In stock
£1.75 £1.46

  506 Key 460PD MO112139100/0
Key 460PD
 In stock
£1.63 £1.36

  601 Grass Box-Upper 460PD MO381486013/0
Grass Box-Upper 460PD
 Out of stock
£21.47 £17.89

  602 Wire Frame 460PD MO122608525/2
Wire Frame 460PD
 In stock
£12.00 £10.00

  603 Grass Bag 460PD MO181002211/0
Grass Bag 460PD
 Out of stock
£51.47 £42.89

  604 Screw 460PD MO112728705/0
Screw 460PD
 Out of stock
£2.58 £2.15


Description

Mountfield 460 PD Parts Diagram

Product Name - 460 PD

Model Year - 2006-2007

Model Type - TD 484 TR

Art.N - 294485023/MO6
