46 R PD ES - 2005 - 294885923/MOR - Mountfield Rotary Mower Dashboard Diagram

Name: 46 R PD ES - 2005 - 294885923/MOR - Mountfield Rotary Mower Dashboard Diagram
SKU: 46_r_pd_es_294885923_mor_dashboard-group
Price: 1.22 GBP
Availability: InStock

Part No. 46_r_pd_es_294885923_mor_dashboard-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

46 R PD ES - 2005 - 294885923/MOR - Mountfield Rotary Mower Dashboard Diagram

Description

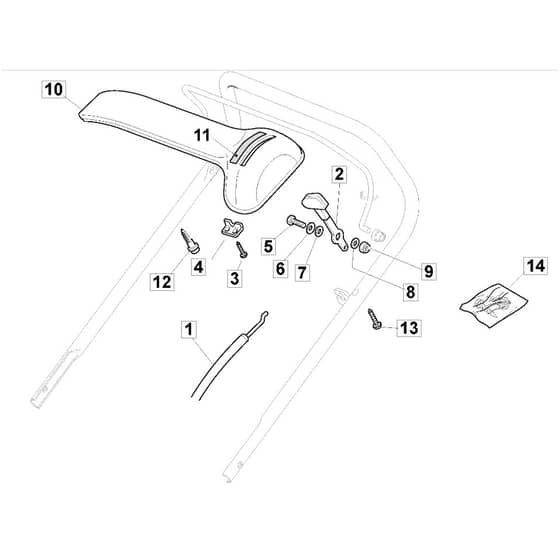

Mountfield 46 R PD ES Parts Diagram

Product Name - 46 R PD ES

Model Year - 2005

Model Type - TD 484 TR/E

Art.N - 294885923/MOR

	Part No.	Details
1	MO481007160/0 In stock	Throttle Cable With Sheath. Universal	£14.48 £12.07
2	MO381007221/0 Available to backorder	Throttle Lever SV40-RV 40-V35 Engine . B&S 450-500 Series	£25.20 £21.00
3	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
4	MO322981467/0 Available to backorder	Plate	£1.55 £1.29
5	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
6	MO112530060/0 Available to backorder	Spring Washer	£1.46 £1.22
8	MO112523040/0 In stock	Washer	£1.55 £1.29
9	MO112154510/0 In stock	Nut	£1.55 £1.29
12	MO122943006/0 Available to backorder	Screw	£1.84 £1.53
13	MO112728460/0 Available to backorder	Screw	£1.55 £1.29
14	MO381008609/0 Available to backorder	Screw Kit	£1.63 £1.36
