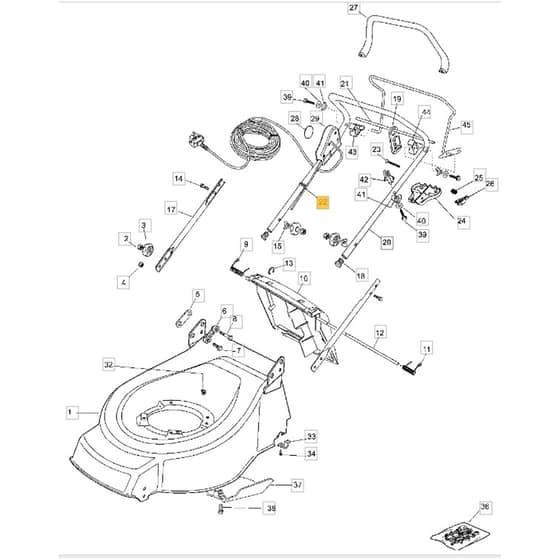

46 R HP - 2006 - 23-3334-75 - Mountfield Rotary Mower Handle Diagram

Name: 46 R HP - 2006 - 23-3334-75 - Mountfield Rotary Mower Handle Diagram
SKU: 46_r_hp_23_3334_75_handle-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

46 R HP - 2006 - 23-3334-75 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield 46 R HP Parts Diagram

Product Name - 46 R HP

Model Year - 2006

Model Type -

Art.N - 23-3334-75

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112293200/0 In stock	Nut 46RHP	£1.55 £1.29
3	MO122399900/0 In stock	Knob 46RHP	£1.55 £1.29
4	MO112155000/0 In stock	Lock Nut 46RHP	£1.55 £1.29
5	MO381008596/1 Available to backorder	External Plaque 46RHP	£25.06 £20.88
6	MO122551575/0 Available to backorder	Plate-Inside 46RHP	£1.55 £1.29
8	MO9997-0840-16 Available to backorder	Screw 46RHP	£1.55 £1.29
9	MO122450410/1 Available to backorder	Spring-Rh 46RHP	£12.12 £10.10
10	MO381008021/3 Available to backorder	Flap 46RHP	£20.77 £17.31
11	MO122450420/1 Available to backorder	Spring-Lh 46RHP	£1.97 £1.64
12	MO122517906/1 Available to backorder	Pivot Pin 46RHP	£14.66 £12.22
14	MO112819125/0 Available to backorder	Screw 46RHP	£1.39 £1.16
18	MO118566112/0 Available to backorder	Cap 46RHP	£1.55 £1.29
19	MO322195101/4 Available to backorder	Fair Led 46RHP	£2.12 £1.77
20	MO381006604/0 Available to backorder	Handle. Upper Part 46RPD	£33.79 £28.16
20	MO381007037/1 Available to backorder	Handle. Upper Part 46RHP	£49.66 £41.38
21	MO122010251/0 Available to backorder	Rod 46RHP	£2.26 £1.88
22	MO122192000/1 Available to backorder	Anchor Clamp 46RHP	£1.82 £1.52
24	MO322785144/1 Available to backorder	Support 46RHP	£2.81 £2.34
25	MO122450115/0 Available to backorder	Spring 46RHP	£1.94 £1.62
26	MO322230350/2 Available to backorder	Fulcrum Pin 46RHP	£1.97 £1.64
27	MO322322881/2 Available to backorder	Lever. Engine Brake Black 46RHP	£7.88 £6.57
29	MO381600548/0 Available to backorder	Dead Hand Switch Uk 46RHP	£89.39 £74.49
32	MO322291150/0 Available to backorder	Rubber Insert 46RHP	£1.55 £1.29
33	MO322545154/0 Available to backorder	Plate 46RHP	£1.55 £1.29
34	MO112731350/0 Available to backorder	Screw 46RHP	£1.55 £1.29
37	MO122060192/0 Available to backorder	Belt Protection 46RPD	£5.64 £4.70
38	MO112727791/0 Available to backorder	Screw 46RPD	£1.55 £1.29
39	MO112735103/0 Available to backorder	Screw 46RPD	£1.82 £1.52
40	MO112523040/0 In stock	Washer 46RPD	£1.49 £1.24
41	MO122680006/1 In stock	Washer 46RPD	£1.75 £1.46
42	MO122806520/0 Available to backorder	Holder 46RPD	£2.26 £1.88
43	MO322806518/2 Available to backorder	Holder-Rh 46RPD	£2.53 £2.11
44	MO322806519/2 Available to backorder	Holder-Lh 46RPD	£2.53 £2.11
45	MO181001245/1 Available to backorder	Control Lever	£25.84 £21.53
