46 PD - 2005 - 294885123/MOU - Mountfield Rotary Mower Transmission Diagram

Description

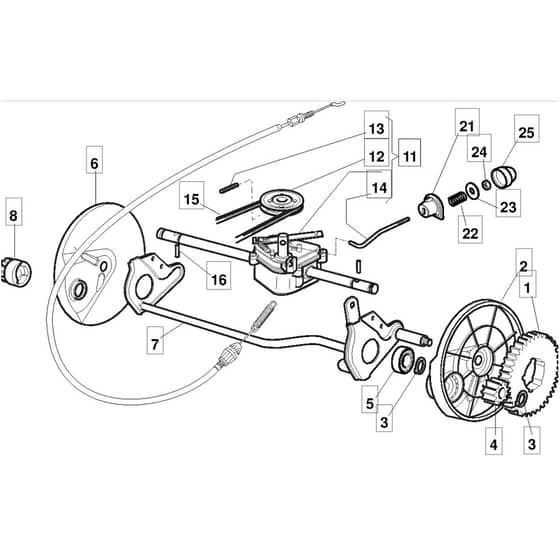

Mountfield 46 PD Parts Diagram

Product Name - 46 PD

Model Year - 2005

Model Type - TDL 484 TR

Art.N - 294885123/MOU

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122120105/2 Available to backorder	Ring Gear	£9.92 £8.27
2	MO122600093/0 Available to backorder	Left Wheel Protection	£3.38 £2.82
3	MO112608600/0 In stock	Seeger	£1.55 £1.29
4	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
5	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
6	MO122600092/0 Available to backorder	Right Wheel Protection	£3.38 £2.82
7	MO381000147/0 Available to backorder	Rear Wheel Axle	£27.46 £22.88
8	MO322570138/0 In stock	Right Pinion	£7.39 £6.16
11	MO181003076/1 Available to backorder	G.T. Gear Box (General Transmission) From 01-9-2003 To 31-8-2005	£121.07 £100.89
11	MO181003081/1 Available to backorder	Gear Box Bi.Ci.Di (Bi. Ci. Di.) From 01-9-2005	£145.04 £120.87
11	MO181003059/2 Available to backorder	Gear Box (General Transmission) To 31-8-2003	£64.56 £53.80
11	MO181003092/0 In stock	Gear Box (General Transmission) From 01-9-2005	£69.71 £58.09
12	MO122601909/0 In stock	Pulley	£5.64 £4.70
13	MO112645705/0 In stock	Elastic Pin ø5X32	£1.55 £1.29
14	MO122033283/0 In stock	Adjustment Rod (General Transmission)	£4.66 £3.88
15	MO135063800/0 In stock	Trapezoidal Belt	£9.17 £7.64
16	MO122753000/0 In stock	Pin	£1.55 £1.29
21	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
22	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
23	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
24	MO112154510/0 In stock	Nut	£1.55 £1.29
25	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
