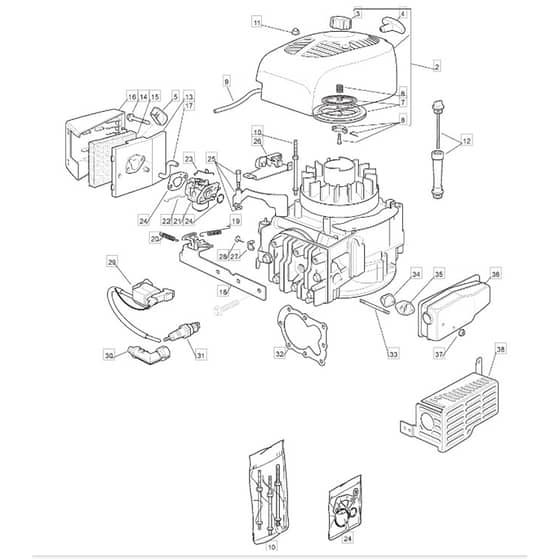

46 M - 2005 - 11-3234-80 - Mountfield Rotary Mower SV150 Engine Diagram

Name: 46 M - 2005 - 11-3234-80 - Mountfield Rotary Mower SV150 Engine Diagram
SKU: 46_m_11_3234_80_sv150_engine-group
Price: 1.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

46 M - 2005 - 11-3234-80 - Mountfield Rotary Mower SV150 Engine Diagram

Description

Mountfield 46 M Parts Diagram

Product Name - 46 M

Model Year - 2005

Model Type - MCS 484

Art.N - 11-3234-80

Be the first to review this product

0 product questions

	Part No.	Details
3	MO118550001/0 In stock	Fuel Tank Cap SV150	£5.35 £4.46
4	MO118800193/0 Available to backorder	Starter Handle SV150	£2.26 £1.88
6	MO118550002/0 Available to backorder	Spring SV150	£5.34 £4.45
7	MO118550003/0 Available to backorder	Starter Pulley & Rewind Spring SV150	£36.59 £30.49
8	MO118550004/1 In stock	Starter Pawl Kit SV150	£5.35 £4.46
10	MO118550006/0 Available to backorder	Pin Bolt Set SV150	£14.22 £11.85
11	MO118550007/0 Available to backorder	Nut SV150	£1.97 £1.64
12	MO118550008/0 Available to backorder	Oil Dipstick Assy SV150	£5.68 £4.73
15	MO118550011/0 In stock	Air Filter SV150	£3.10 £2.58
16	MO118550012/0 In stock	Air Cleaner Cover SV150	£5.48 £4.57
18	MO118550014/1 Available to backorder	Control Bracket SV150	£38.00 £31.67
26	MO118550021/0 Available to backorder	Engine Brake SV150	£33.79 £28.16
28	MO118550023/0 Available to backorder	Screw SV150	£1.97 £1.64
30	MO118550025/0 Available to backorder	Spark Plug Elbow Cover SV150	£12.19 £10.16
31	3011 In stock	Spark Plug SV150	£3.36 £2.80
