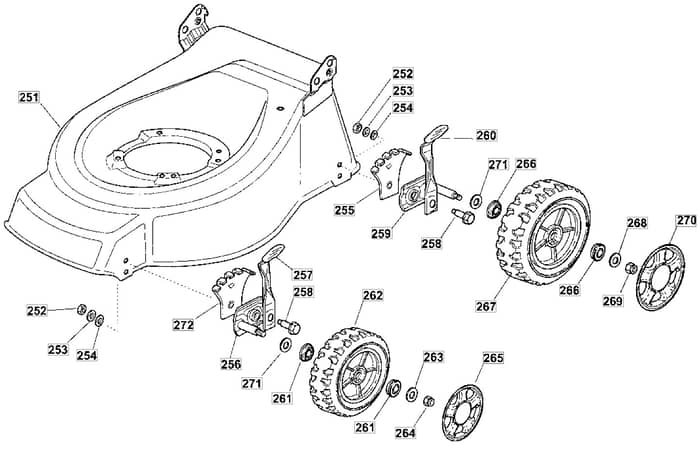

46 EL - 2007 - 29480663/CAL - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield 46 EL Parts Diagram

Model Year - 2007

Model Type - TD 480

Art.N - 29480663/CAL

	Part No.	Details
252	MO112293200/0 In stock	Nut 420HP. 421HP. 422HP	£1.55 £1.29
253	MO112583500/0 In stock	Grower 420HP. 421HP. 422HP	£1.55 £1.29
254	MO112523070/0 Available to backorder	Washer 420HP. 421HP. 422HP	£1.55 £1.29
255	MO322735547/0 Available to backorder	Sector. Height Adjustment 420HP. 421HP. 422HP	£2.24 £1.87
256	MO381005082/0 In stock	Wheel Support 420HP. 421HP. 422HP	Was £17.18 £14.32 Special Price £10.79 £8.99
257	MO381003284/0 Available to backorder	Lever. Height Adjustment 420HP. 421HP. 422HP	£12.90 £10.75
258	MO122519811/0 Available to backorder	Pin 420HP. 421HP. 422HP	£1.55 £1.29
259	MO381005084/0 Available to backorder	Wheel Support 420HP. 421HP. 422HP	£8.18 £6.82
260	MO481003286/0 Available to backorder	Lever. Height Adjustment 420HP. 421HP. 422HP	£4.78 £3.98
262	MO381007351/0 In stock	Wheel Ø 170 420HP. 421HP. 422HP	£13.66 £11.38
265	MO322110381/0 Available to backorder	Hub Cap Grey	£3.38 £2.82
265	MO322110729/0 In stock	Hub Cap Grey HP48EL	£2.69 £2.24
266	MO122122206/0 In stock	Bearing 420HP. 421HP. 422HP	£1.84 £1.53
267	MO381007360/0 Available to backorder	Wheel 420HP. 421HP. 422HP	£16.61 £13.84
268	MO112521350/0 In stock	Washer 420HP. 421HP. 422HP	£1.55 £1.29
269	MO112155000/0 In stock	Nut 420HP. 421HP. 422HP	£1.55 £1.29
270	MO322110636/0 In stock	Hub Cap Grey	£2.53 £2.11
271	MO112530150/0 In stock	Spring Washer 420HP. 421HP. 422HP	£1.39 £1.16
