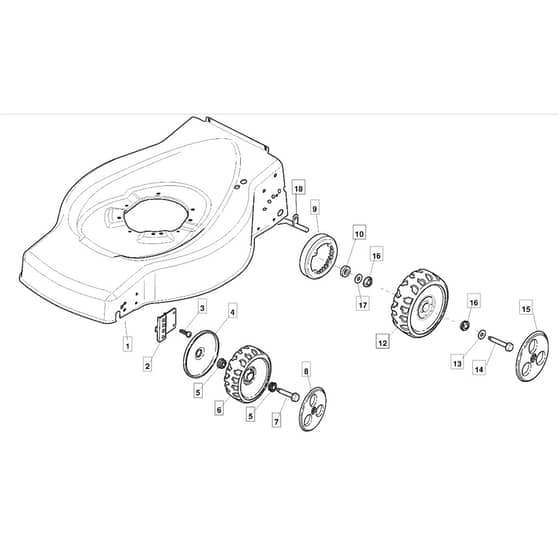

45 S - 2005 - 299264743/MOU - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield 45 S Parts Diagram

Product Name - 45 S

Model Year - 2005

Model Type - ES 464 TR

Art.N - 299264743/MOU

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002652/0 Available to backorder	Red Deck	£115.85 £96.54
2	MO322551523/0 Available to backorder	Front Plate	£10.42 £8.68
3	MO112728686/0 In stock	Screw	£1.55 £1.29
4	MO322600095/0 Available to backorder	Protection. Wheel	£1.55 £1.29
5	MO322034511/0 Available to backorder	Bushing To 31-8-2006	£2.40 £2.00
5	MO322034515/1 Available to backorder	Bushing From 01-9-2006	£1.69 £1.41
6	MO322686091/1 In stock	Wheel	£6.76 £5.63
7	MO122524321/0 In stock	Pin To 31-8-2006	£5.06 £4.22
7	MO122524340/0 Available to backorder	Pin From 01-9-2006	£2.68 £2.23
9	MO322120109/0 Available to backorder	Wheels Crown	£6.62 £5.52
10	MO322170622/0 Available to backorder	Spacer From 01-9-2006	£1.40 £1.17
10	MO112521370/0 Available to backorder	Washer To 31-8-2006	£1.55 £1.29
12	MO381007468/0 In stock	Wheel Ø 190 From 01-9-2016	£14.75 £12.29
12	MO381007355/0 Available to backorder	Wheel To 31-8-2006	£20.69 £17.24
13	MO112523050/0 In stock	Washer	£1.55 £1.29
14	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
16	MO122122206/0 In stock	Bearing	£1.82 £1.52
17	MO122675100/0 Available to backorder	Washer	£1.82 £1.52
18	MO122033393/0 Available to backorder	Rear Wheels Axle	£25.06 £20.88
