45 - 2005 - 24-3434-71 - Mountfield Rotary Mower Wheels Diagram

Description

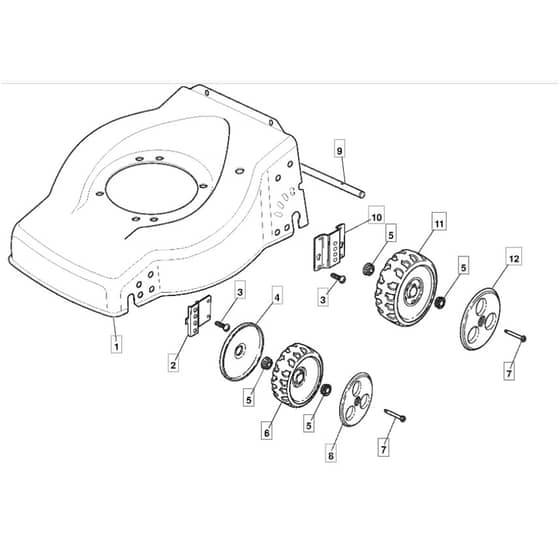

Mountfield 45 Parts Diagram

Product Name - 45

Model Year - 2005

Model Type - ES 464

Art.N - 24-3434-71

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002652/0 Available to backorder	Red Deck	£115.85 £96.54
2	MO322551523/0 Available to backorder	Front Plate	£10.42 £8.68
3	MO112728686/0 In stock	Screw	£1.55 £1.29
4	MO322600095/0 Available to backorder	Protection. Wheel	£1.55 £1.29
5	MO322034511/0 Available to backorder	Bushing To 31-8-2006	£2.40 £2.00
5	MO322034515/1 Available to backorder	Bushing From 01-9-2006	£1.69 £1.41
6	MO322686091/1 In stock	Wheel	£6.76 £5.63
7	MO122524340/0 Available to backorder	Pin From 01-9-2006	£2.68 £2.23
7	MO122524321/0 Available to backorder	Pin To 31-8-2006	£5.06 £4.22
8	MO322110320/1 Available to backorder	Hub Cap White	£8.45 £7.04
10	MO322551525/0 Available to backorder	Rear Plate	£13.66 £11.38
11	MO322686092/0 Available to backorder	Wheel Ø 190 From 01-9-2006	£5.92 £4.93
11	MO381007347/0 Available to backorder	Wheel To 31-8-2006	£13.84 £11.53
12	MO322110338/1 Available to backorder	Hub Cap D.190-3 Spokes [White]	£9.72 £8.10
