4320 HP - 2008 - 294434023/M08 - Mountfield Rotary Mower Throttle Diagram

Name: 4320 HP - 2008 - 294434023/M08 - Mountfield Rotary Mower Throttle Diagram
SKU: 4320_hp_294434023_m08_throttle-group
Price: 1.29 GBP
Availability: InStock

Part No. 4320_hp_294434023_m08_throttle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

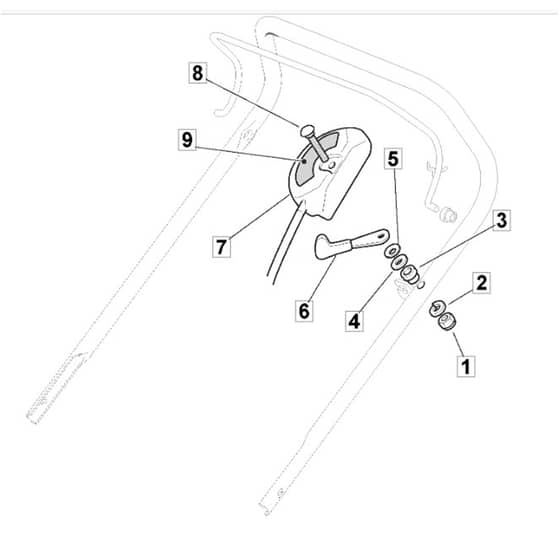

4320 HP - 2008 - 294434023/M08 - Mountfield Rotary Mower Throttle Diagram

Description

Mountfield 4320 HP Parts Diagram

Product Name - 4320 HP

Model Year - 2008

Model Type - TD 434

Art.N - 294434023/M08

Engine Model - Briggs & Stratton 4320 HP

	Part No.	Details
1	MO112291000/0 Available to backorder	Nut	£1.55 £1.29
2	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
4	MO112521360/0 In stock	Washer	£1.55 £1.29
5	MO112508100/0 Available to backorder	Cup Spring	£1.55 £1.29
6	MO381007220/0 Available to backorder	Throttle Lever SV40-RV 40-V35 Engine . B&S 450-500 Series From 01-9-2006	£32.16 £26.80
7	MO481007080/0 In stock	Throttle Cable	£24.49 £20.41
8	MO112815000/0 Available to backorder	Screw	£1.55 £1.29
