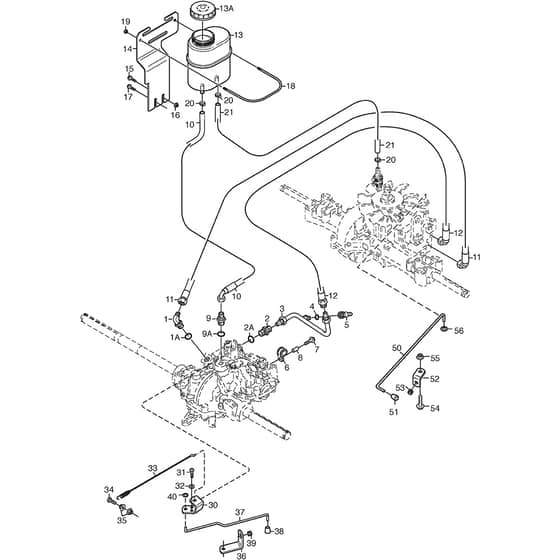

4155H 4WD - 2009-2013 - 13-6004-81 - Mountfield Front Mower Transmission (Hydraulic Parts) Diagram

Description

Mountfield 4155H 4WD Parts Diagram

Product Name - 4155H 4WD

Model Year - 2009-2013

Model Type - P 901 C 4W

Art.N - 13-6004-81

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO1134-5875-01 Available to backorder	Hydraulic Coupling 3.4"	£63.23 £52.69
3	MO1134-6039-01 Available to backorder	Hydraulic Pipe Assy	£190.04 £158.37
4	MO1134-4948-01 Available to backorder	Washer 1.4"	£2.68 £2.23
5	MO1134-6042-01 Available to backorder	Quick Coupling-Male	£30.97 £25.81
6	MO9578-0028-01 Available to backorder	Tube Clamp	£9.43 £7.86
7	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
8	MO1134-1565-09 Available to backorder	Spacer	£14.22 £11.85
9	MO1134-5809-01 Available to backorder	Hydraulic Coupling 3.4" x 9.16"	£17.60 £14.67
9	MO9404-0029-01 Available to backorder	O-Ring (9A)	£5.06 £4.22
10	MO387869517/1 Available to backorder	Hydraulic Tube	£99.95 £83.29
11	MO387869529/1 Available to backorder	Hydraulic Hose	£94.32 £78.60
12	MO1137-0212-01 Available to backorder	Hydraulic Hose	£85.16 £70.97
13	MO387735257/1 Available to backorder	Hydraulic Oil Tank Assy	£119.18 £99.32
13	MO1137-0272-01 Available to backorder	Cap-Hydraulic Oil Tank (13A)	£32.38 £26.98
14	MO1134-6009-01 Available to backorder	Tank Bracket	£29.56 £24.63
17	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
18	MO1134-6030-01 Available to backorder	Tank Loop	£7.67 £6.39
19	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
20	MO9578-0023-04 Available to backorder	Hose Clamp	£6.05 £5.04
21	MO1134-2779-08 Available to backorder	Tube L . 165 mm	£17.87 £14.89
31	MO9939-0612-16 Available to backorder	Screw	£1.97 £1.64
32	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
33	MO137065320/0 Available to backorder	Wire	£19.85 £16.54
34	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
36	MO1134-6084-01 Available to backorder	Control Bracket	£9.72 £8.10
37	MO1134-6083-01 Available to backorder	Control Rod	£7.19 £5.99
50	MO1134-4015-01 Available to backorder	Pull Rod	£11.27 £9.39
51	MO1134-4014-01 Available to backorder	Knob	£4.78 £3.98
52	MO1134-4713-01 Available to backorder	Angle Bracket	£13.50 £11.25
53	MO1134-2790-01 Available to backorder	Cable Protection	£6.47 £5.39
54	MO9959-0820-16 In stock	Screw	£1.55 £1.29
55	MO112293201/0 In stock	Nut	£1.69 £1.41
56	MO112604896/0 Available to backorder	Starlock	£1.55 £1.29
