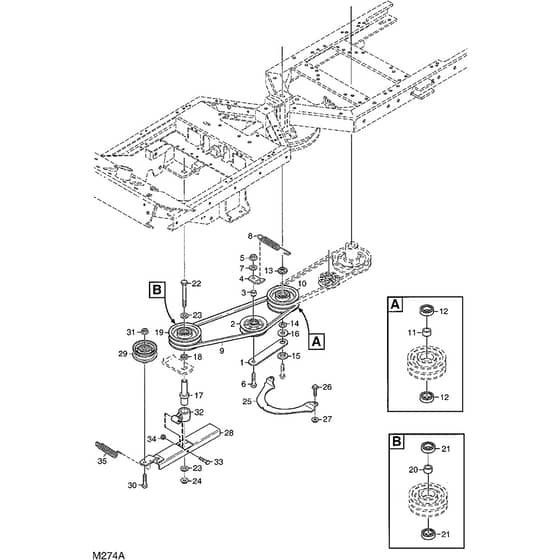

4155H 4WD - 2009-2013 - 13-6004-81 - Mountfield Front Mower Power Take Off Diagram

Name: 4155H 4WD - 2009-2013 - 13-6004-81 - Mountfield Front Mower Power Take Off Diagram
SKU: 4155h_4wd_13_6004_81_power_take_off-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4155H 4WD - 2009-2013 - 13-6004-81 - Mountfield Front Mower Power Take Off Diagram

Description

Mountfield 4155H 4WD Parts Diagram

Product Name - 4155H 4WD

Model Year - 2009-2013

Model Type - P 901 C 4W

Art.N - 13-6004-81

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details

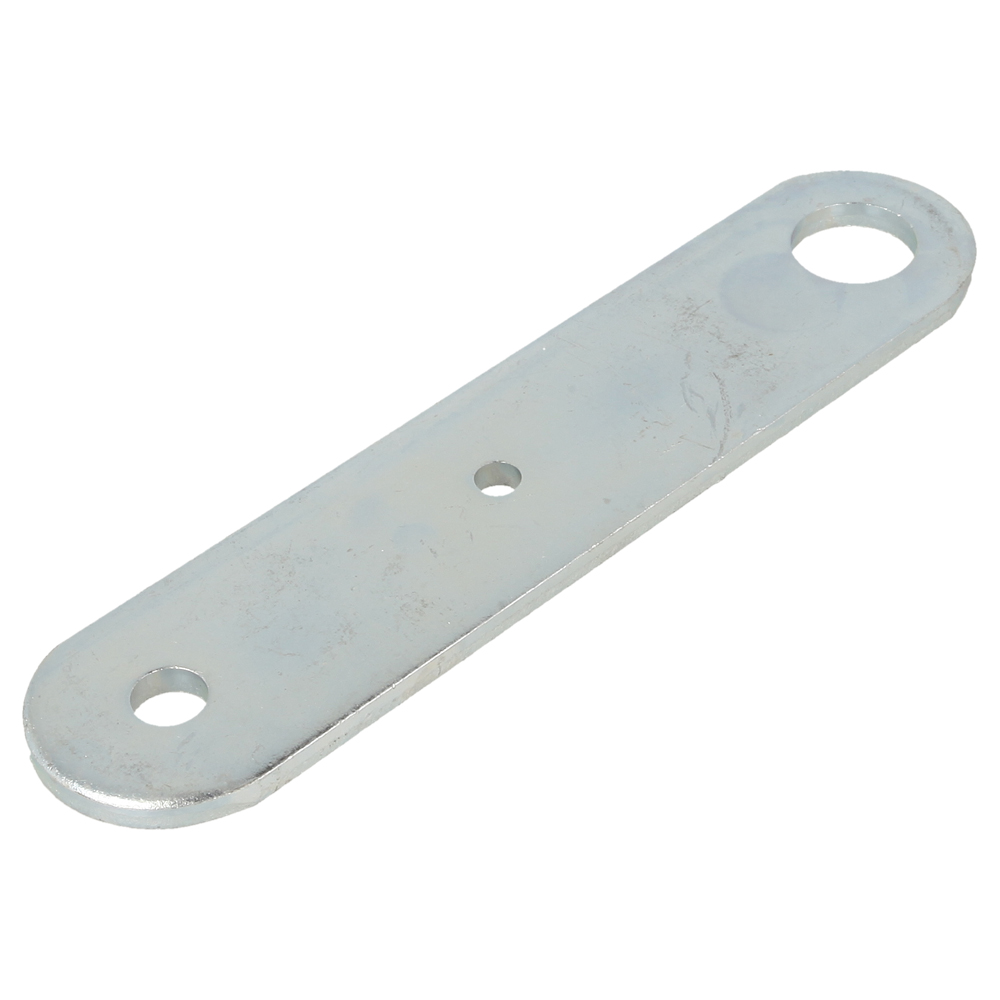

1	MO1134-1730-02 In stock	Tensioning Wheel Arm	Was £40.10 £33.42 Special Price £24.55 £20.46

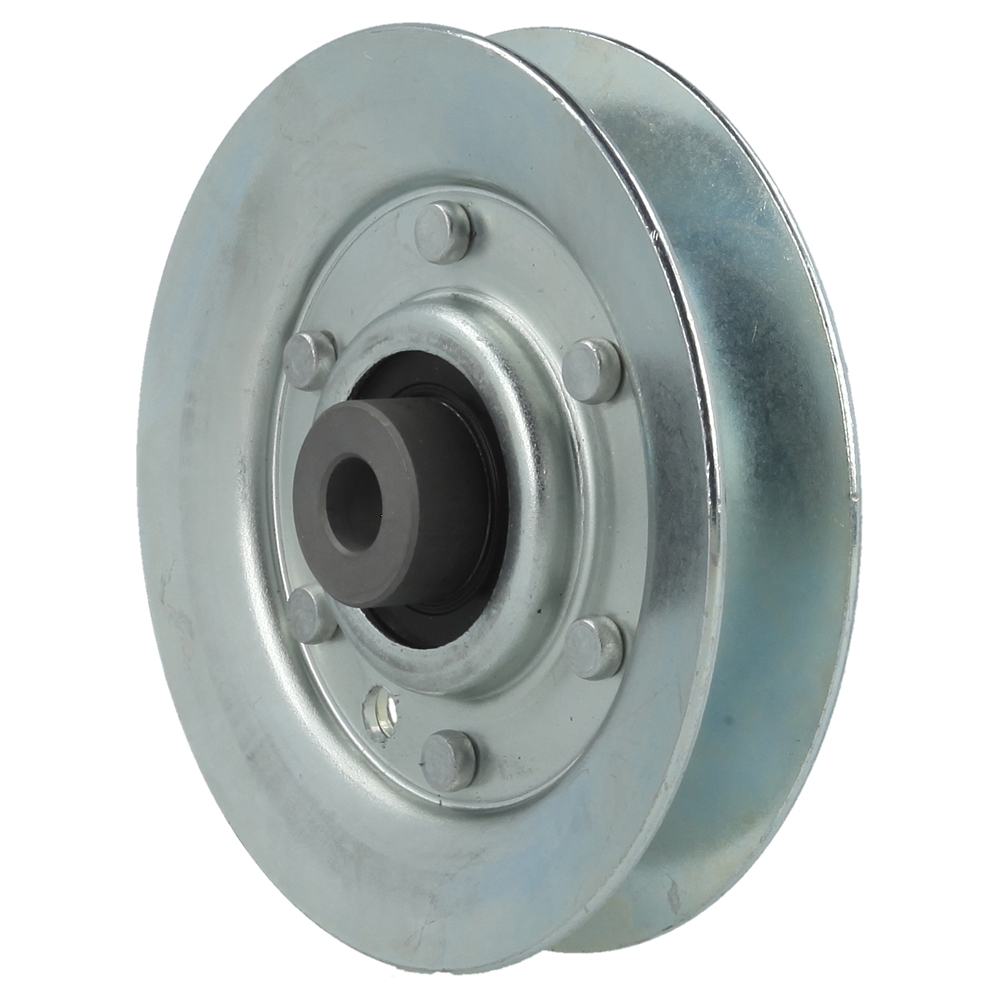

2	MO387605009/0 In stock	Tension Wheel	£50.68 £42.23
3	MO1134-1888-05 Available to backorder	Spacer	£10.04 £8.37

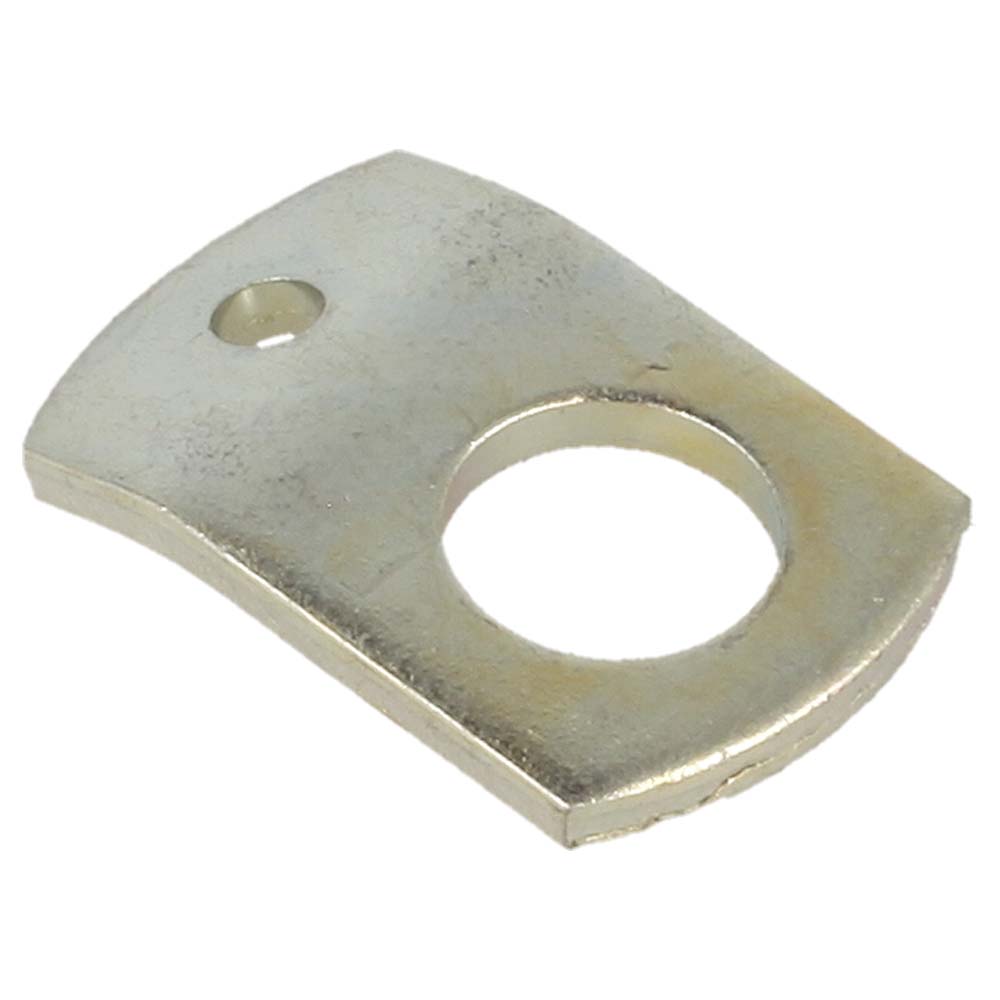

4	MO1134-1893-01 Available to backorder	Spring	£11.10 £9.25
6	MO112692395/2 In stock	Screw	£3.24 £2.70

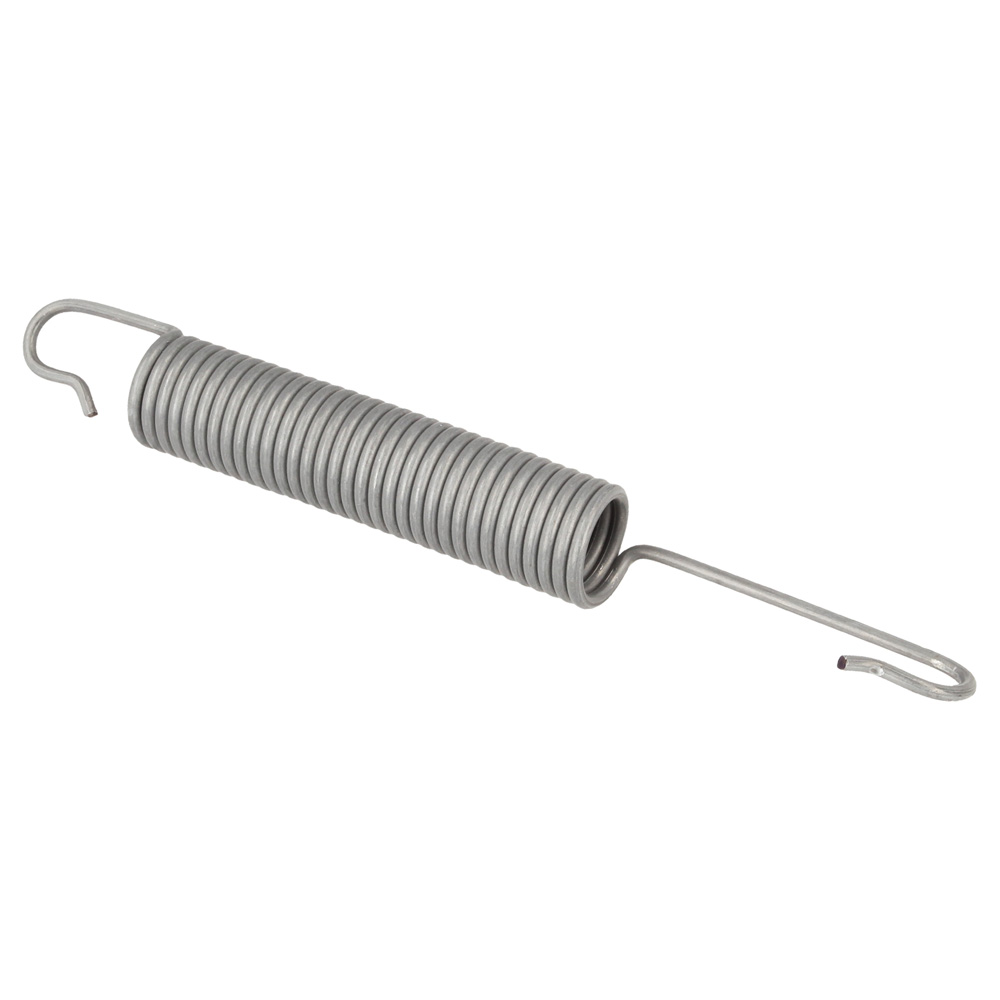

8	MO1134-5713-01 Available to backorder	Spring	£15.34 £12.78

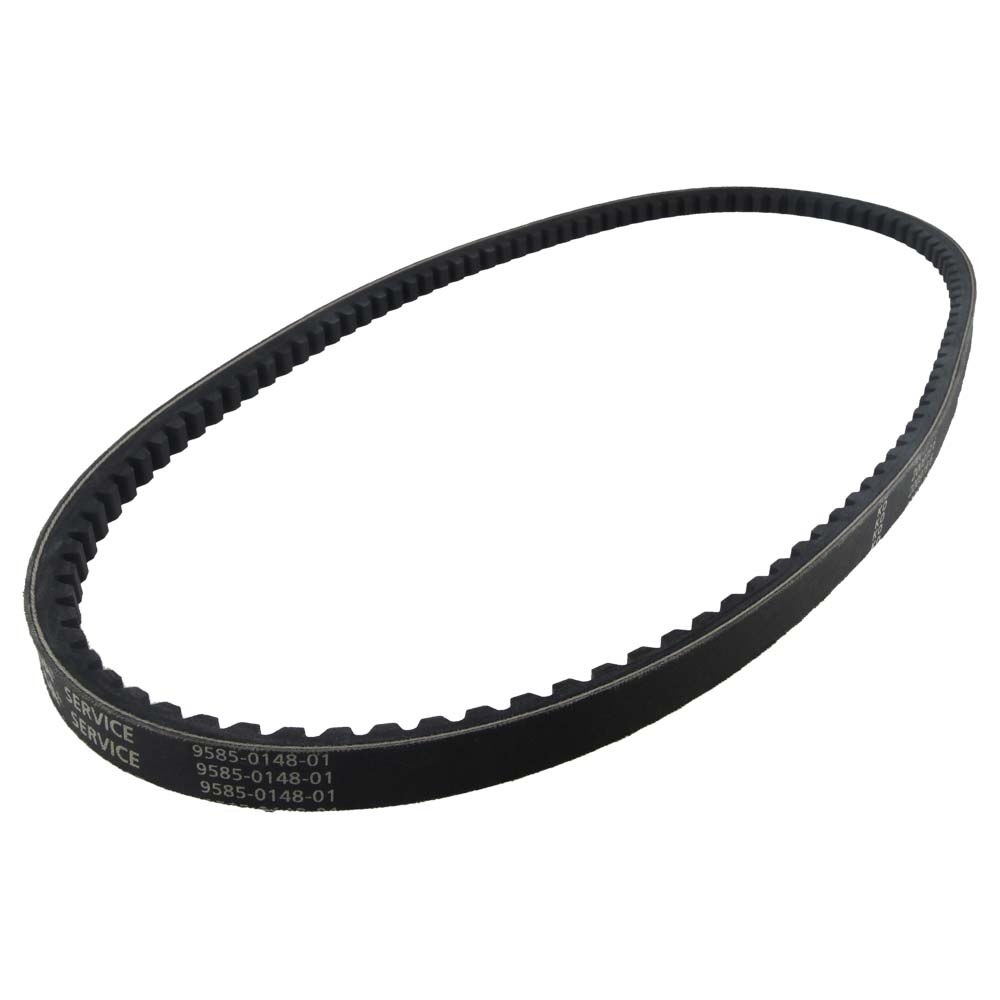

9	MO1134-9098-01 In stock	V-Belt	£25.24 £21.03
13	MO1134-5548-01 Available to backorder	Spacer	£13.93 £11.61
14	MO112521360/0 In stock	Washer	£1.55 £1.29

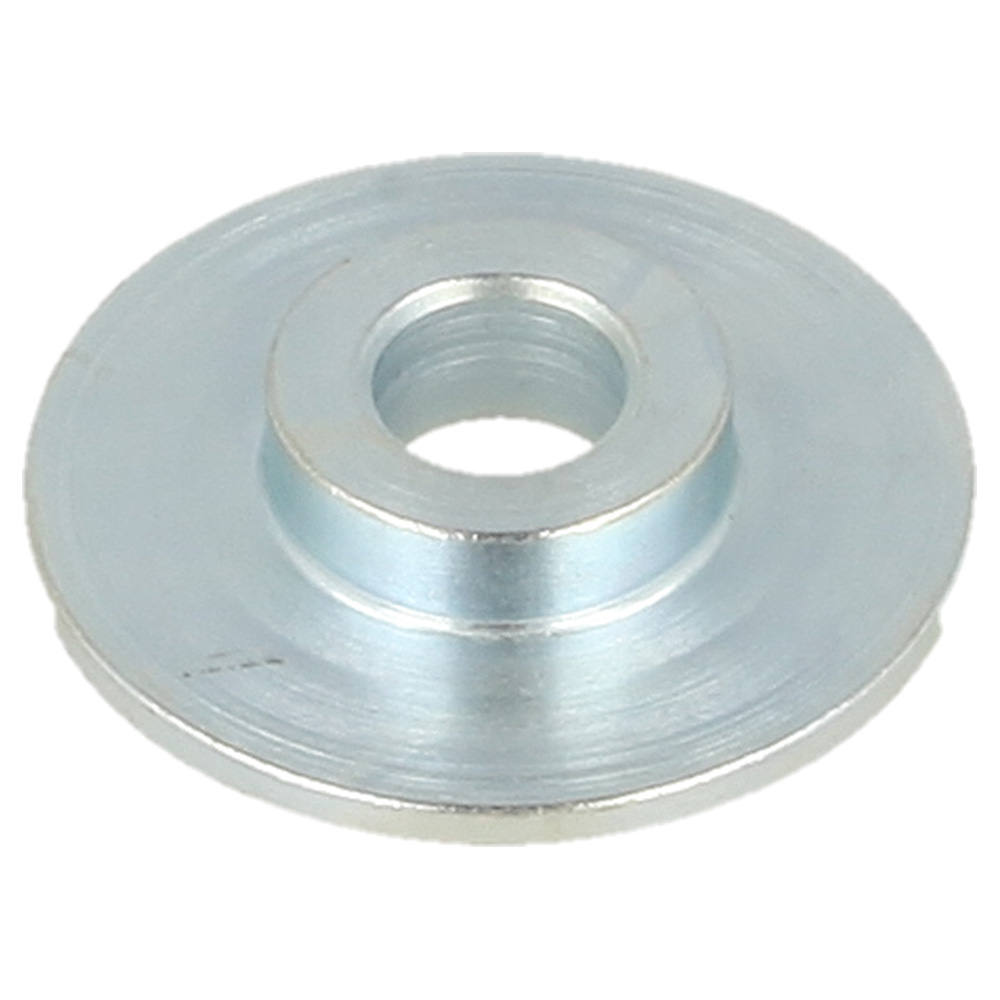

15	MO1134-0222-00 Available to backorder	Washer	£16.88 £14.07
16	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00

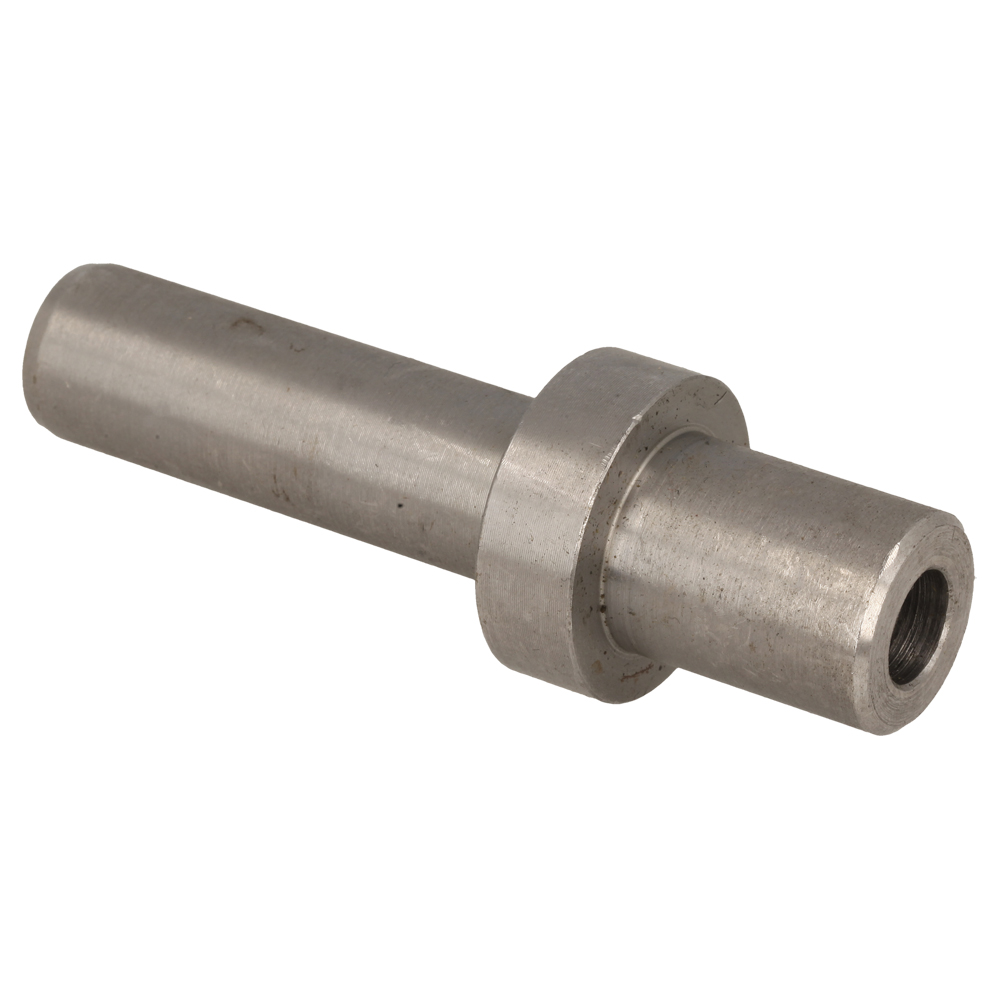

17	MO1134-5663-01 Available to backorder	Shaft	£46.46 £38.72
18	MO1134-0052-00 Available to backorder	Spacer	£8.52 £7.10
19	MO387605002/0 Available to backorder	Centre Belt Pulley	£83.06 £69.22
20	MO1134-0051-09 Available to backorder	Spacer	£13.66 £11.38
21	MO119216056/0 In stock	Ball Bearing	£22.25 £18.54
22	MO9997-1011-06 Available to backorder	Screw	£10.98 £9.15
23	MO9699-0030-02 In stock	Washer	£1.97 £1.64
25	MO1134-3654-01 Available to backorder	Guard	£35.05 £29.21
26	MO9959-0612-16 Available to backorder	Screw	£1.40 £1.17
27	MO112292102/0 In stock	Nut	£1.69 £1.41
28	MO1134-5660-01 Available to backorder	Tension Arm Assy	£45.04 £37.53

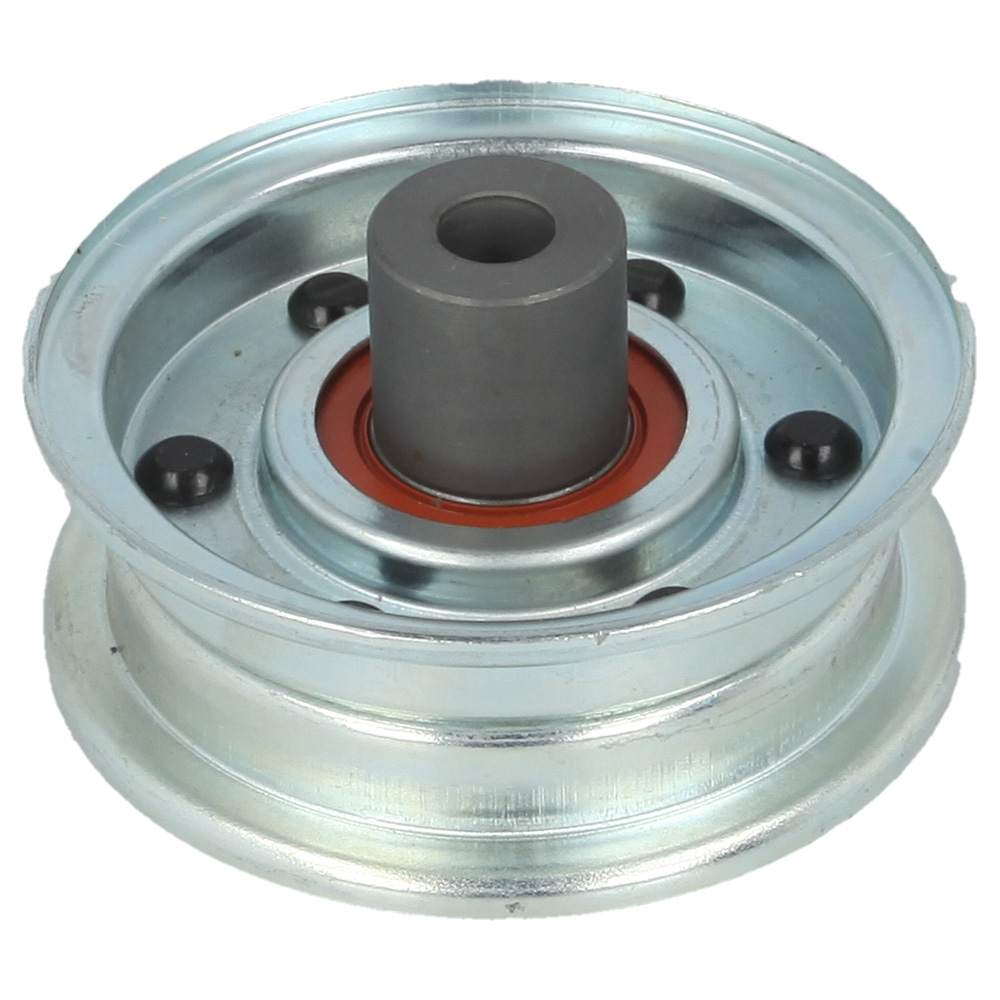

29	MO387605013/0 In stock	Tension Roller Assy	£42.23 £35.19
30	MO9997-1050-16 Available to backorder	Screw	£2.53 £2.11
31	MO9739-1031-22 In stock	Nut	£1.97 £1.64
32	MO1134-6314-01 Available to backorder	Tension Arm Attachment	£8.34 £6.95
33	MO112689515/0 Available to backorder	Screw	£1.55 £1.29
34	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
35	MO1134-5824-01 In stock	Spring	£5.48 £4.57
