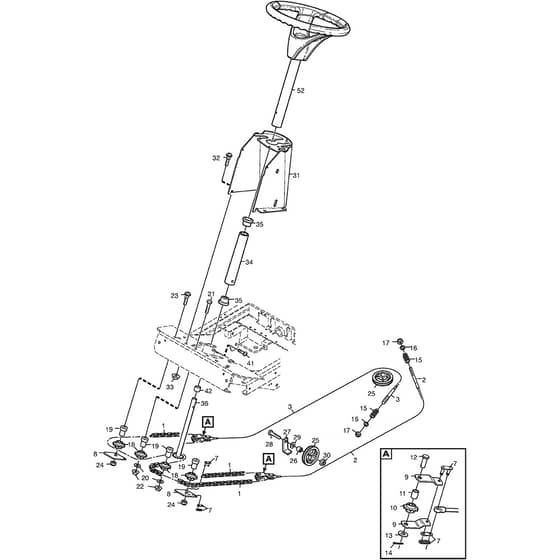

4155H 4WD - 2009 - 13-6004-80 - Mountfield Front Mower Steering Diagram

Name: 4155H 4WD - 2009 - 13-6004-80 - Mountfield Front Mower Steering Diagram
SKU: 4155h_4wd_13_6004_80_steering-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4155H 4WD - 2009 - 13-6004-80 - Mountfield Front Mower Steering Diagram

Description

Mountfield 4155H 4WD Parts Diagram

Product Name - 4155H 4WD

Model Year - 2009

Model Type - P 901 C 4W

Art.N - 13-6004-80

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO187000355/0 Available to backorder	Chain	£32.38 £26.98
2	MO1134-2817-03 Available to backorder	Steering Cable	£24.07 £20.06
3	MO1134-2817-04 Available to backorder	Steering Cable	£24.49 £20.41
7	MO187060100/1 In stock	Chain Lock	£6.76 £5.63
8	MO1134-5652-01 Available to backorder	Attachment	£5.06 £4.22
9	MO1134-5651-01 Available to backorder	Bracket	£12.20 £10.17
10	MO1134-2816-01 In stock	Sprocket	£10.36 £8.63
11	MO1134-0041-02 In stock	Bushing	£9.72 £8.10
12	MO1134-4817-01 Available to backorder	Pin	£12.67 £10.56
13	MO112521360/0 In stock	Washer	£1.55 £1.29
14	MO9599-0054-02 Available to backorder	Split Pin	£1.97 £1.64
15	MO1134-3817-01 In stock	Spring	Was £12.67 £10.56 Special Price £7.94 £6.62
16	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
17	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
19	MO1134-5653-01 Available to backorder	Spacer	£10.56 £8.80
21	MO112692395/2 In stock	Screw	£3.24 £2.70
22	MO9739-1031-22 In stock	Nut	£1.97 £1.64
52	MO387962002/0 Available to backorder	Steering Wheel Assembly	£128.40 £107.00
