4155H 4WD - 2009 - 13-6004-80 - Mountfield Front Mower B&S Engine Diagram

Name: 4155H 4WD - 2009 - 13-6004-80 - Mountfield Front Mower B&S Engine Diagram
SKU: 4155h_4wd_13_6004_80_b_s_engine-group
Price: 1.29 GBP
Availability: InStock

Part No. 4155h_4wd_13_6004_80_b_s_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4155H 4WD - 2009 - 13-6004-80 - Mountfield Front Mower B&S Engine Diagram

Description

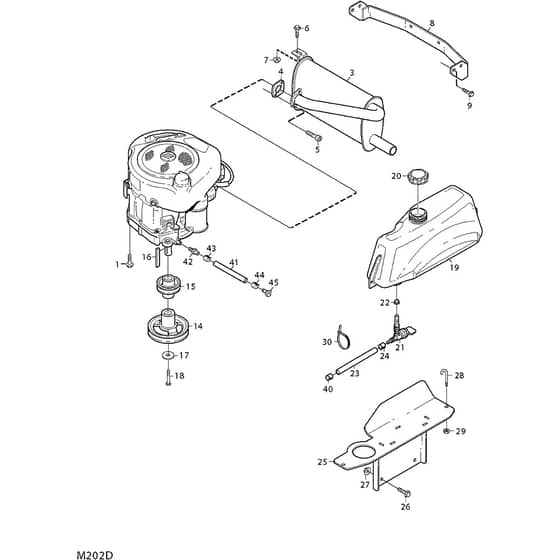

Mountfield 4155H 4WD Parts Diagram

Product Name - 4155H 4WD

Model Year - 2009

Model Type - P 901 C 4W

Art.N - 13-6004-80

Engine Model -

	Part No.	Details
1	MO9955-3725-16 Available to backorder	Screw	£2.53 £2.11
3	MO1134-5369-01 Available to backorder	Muffler	£273.60 £228.00
4	MO1134-0433-00 Available to backorder	Gasket	£5.48 £4.57
5	MO1134-4930-01 Available to backorder	Screw	£1.97 £1.64
8	MO1134-5390-01 Available to backorder	Tow Bar Bracket	£63.34 £52.78
9	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
14	MO1137-0208-01 Available to backorder	Engine Pulley	£43.63 £36.36
15	MO1134-6137-01 Available to backorder	Engine Belt Pulley	£72.78 £60.65
16	MO9600-0251-01 Available to backorder	Key L . 2 1.2"	£6.46 £5.38
17	MO1134-5017-01 Available to backorder	Washer	£3.79 £3.16
18	MO9987-5332-16 Available to backorder	Screw	£2.11 £1.76
19	MO1134-6618-01 Available to backorder	Fuel Tank	£46.00 £38.33
20	MO125795001/1 In stock	Fuel Tank Cap	£7.97 £6.64
21	MO118563206/0 In stock	Fuel Shut-Off Valve	£23.65 £19.71
22	MO337260156/0 In stock	Grommet	£9.01 £7.51
23	MO1134-2975-15 Available to backorder	Fuel Tube L . 350 mm	£16.10 £13.42
26	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
27	MO112293201/0 In stock	Nut	£1.70 £1.42
29	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
30	MO9579-0003-00 Available to backorder	Cable Holder	£2.11 £1.76
40	MO9578-0023-02 Available to backorder	Hose Clamp	£6.46 £5.38
41	MO1134-5827-01 Available to backorder	Oil Drain Assy Pos 42 - 45 incl.	£39.34 £32.78
42	MO1134-5825-01 Available to backorder	Nipple	£70.38 £58.65
43	MO9578-0023-04 Available to backorder	Hose Clamp	£6.05 £5.04
44	MO1134-3499-02 Available to backorder	Hose Clamp	£3.25 £2.71
45	MO1134-5826-01 Available to backorder	Plug	£23.84 £19.87
