4155H 4WD - 2008 - 13-6104-99 - Mountfield Front Mower Kanzaki Transaxle K574G Diagram

Name: 4155H 4WD - 2008 - 13-6104-99 - Mountfield Front Mower Kanzaki Transaxle K574G Diagram
SKU: 4155h_4wd_13_6104_99_kanzaki_transaxle_k574g-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4155H 4WD - 2008 - 13-6104-99 - Mountfield Front Mower Kanzaki Transaxle K574G Diagram

Description

Mountfield 4155H 4WD Parts Diagram

Product Name - 4155H 4WD

Model Year - 2008

Model Type - P 901 C 4W

Art.N - 13-6104-99

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1137-0124-01 Available to backorder	Transaxle (Kanzaki K574G)	£1,975.32 £1,646.10
3	MO1139-1751-01 Available to backorder	Housing-Lower 574G	£741.62 £618.02
5	MO1139-1301-01 Available to backorder	Tube 574G	£10.90 £9.08
6	MO1139-1336-01 Available to backorder	Cobra Clip 574G	£6.76 £5.63
7	MO1139-1306-01 Available to backorder	Adaptor 574G	£6.26 £5.22
8	MO1139-1150-01 Available to backorder	Magnet 574G	£8.24 £6.87
9	MO1139-1341-01 Available to backorder	Magnet Holder 574G	£5.62 £4.68
11	MO1139-1347-01 Available to backorder	Spring 574G	£4.52 £3.77
13	MO1139-1189-01 Available to backorder	By-Pass Lever 574G	£9.19 £7.66
14	MO1139-1161-01 Available to backorder	Ring 574G	£1.55 £1.29
15	MO1139-1735-01 In stock	Bore Plug 574G	£9.61 £8.01
16	MO1139-1104-01 Available to backorder	Snap Ring 574G	£4.52 £3.77
17	MO1139-1103-01 Available to backorder	Washer 574G	£6.31 £5.26
18	MO1139-1733-01 Available to backorder	Bolt Pos 17 incl. _ 574G	£4.52 £3.77
18	MO1139-1500-01 Available to backorder	Drain Bolt Kit Pos 17 incl. _ 574G	£6.60 £5.50
20	MO1139-1119-01 Available to backorder	Seal 15357 574G	£6.10 £5.08
24	MO1139-1487-01 Available to backorder	Center Case 574G	£565.84 £471.53
25	MO1139-1158-01 Available to backorder	Pin 574G	£4.52 £3.77
28	MO1139-1468-01 Available to backorder	Ids Valve 574G	£13.87 £11.56
29	MO1139-1243-01 Available to backorder	Spring 574G	£4.36 £3.63
30	TT168T2084770 Available to backorder	Filter 574G	£2.46 £2.05
31	MO1139-1601-01 Available to backorder	Cylinder Block Kit 574G	£124.45 £103.71
32	MO1139-1245-01 Available to backorder	Pump Spring 574G	£4.81 £4.01
33	MO1139-1493-01 Available to backorder	Pump Shaft 574G	£121.66 £101.38
34	MO1139-1750-01 Available to backorder	Ring 574G	£4.52 £3.77
35	MO1139-1110-01 Available to backorder	Ball Bearing 574G	£17.98 £14.98
36	MO1139-1458-01 Available to backorder	Housing 574G	£23.27 £19.39
37	MO1139-1438-01 Available to backorder	Bearing 574G	£115.99 £96.66
39	MO1139-1160-01 Available to backorder	Washer 574G	£4.52 £3.77
40	MO1139-1353-01 Available to backorder	Motor Shaft 574G	£39.61 £33.01
41	MO1139-1021-01 Available to backorder	Snap Ring 574G	£4.52 £3.77
42	MO1139-1272-01 Available to backorder	Motor Gear 574G	£23.20 £19.33
43	MO1139-1453-01 Available to backorder	Bearing 574G	£18.77 £15.64
45	MO1139-1067-01 Available to backorder	Swash Plate Assy 574G	£42.22 £35.18
46	MO1139-1508-01 Available to backorder	Thrust Bearing Kit 574G	£69.31 £57.76
51	MO1139-1407-01 Available to backorder	Torsion Spring 574G	£12.16 £10.13
52	MO1139-1409-01 Available to backorder	Lever 574G	£56.11 £46.76
53	MO1139-1325-01 Available to backorder	Control Lever 574G	£27.17 £22.64
55	MO1139-1102-01 Available to backorder	Washer 574G	£5.76 £4.80
56	MO1139-1355-01 Available to backorder	Cotter Pin 574G	£4.52 £3.77
57	MO1139-1329-01 Available to backorder	Pin 574G	£4.82 £4.02
58	MO1139-1285-01 Available to backorder	Pin 574G	£4.52 £3.77
60	MO1139-1127-01 Available to backorder	Nut 574G	£4.52 £3.77
61	MO1139-1404-01 Available to backorder	Diff.Gear Kit 574G	£73.56 £61.30
62	MO1139-1258-01 Available to backorder	Final Gear 574G	£111.76 £93.13
63	MO1139-1255-01 Available to backorder	Collar 574G	£9.89 £8.24
64	MO1139-1256-01 Available to backorder	Reduction Shaft 574G	£14.70 £12.25
65	MO1139-1398-01 Available to backorder	Washer 574G	£5.22 £4.35
67	MO1139-1361-01 Available to backorder	Final Pinion Gear 574G	£25.18 £20.98
68	MO1139-1344-01 Available to backorder	Axle Shaft-Rh 574G	£82.06 £68.38
69	MO1139-1345-01 Available to backorder	Axle Shaft-Lh 574G	£102.17 £85.14
70	MO1139-1078-01 Available to backorder	Thrust Washer 574G	£12.04 £10.03
71	MO1139-1163-01 Available to backorder	Ring 574G	£4.52 £3.77
72	MO1139-1080-01 In stock	Seal 19328 574G	£13.30 £11.08
73	MO1139-1164-01 Available to backorder	Bushing 574G	£6.60 £5.50
74	MO1139-1414-01 Available to backorder	Bushing 574G	£6.26 £5.22
75	MO1139-1260-01 Available to backorder	Brake Shoe 574G	£4.52 £3.77
76	MO1139-1261-01 Available to backorder	Brake Arm 574G	£10.04 £8.37
77	MO1139-1320-01 Available to backorder	Brake Shaft 574G	£47.80 £39.83
78	MO1139-1411-01 Available to backorder	Return Spring 574G	£9.23 £7.69
79	MO1139-1264-01 Available to backorder	Brake Actuator 574G	£5.62 £4.68
80	MO1139-1282-01 Available to backorder	Pin 574G	£5.04 £4.20
83	MO1139-1248-01 Available to backorder	Spline Collar 574G	£8.52 £7.10
84	MO1139-1469-01 In stock	Pulley 574G - 1A6460-25800	£92.86 £77.38
85	MO1134-4190-01 In stock	Fan 574G	£21.12 £17.60
86	MO1139-1266-01 Available to backorder	Washer 574G	£4.82 £4.02
87	MO1139-1149-01 Available to backorder	Snap Ring 574G	£4.97 £4.14
88	MO1139-1276-01 Available to backorder	Collar 574G	£6.92 £5.77
89	MO1139-1166-01 Available to backorder	Pin 574G	£4.94 £4.12
91	TT1A646024440 Available to backorder	Seal Ring 574G	£7.32 £6.10

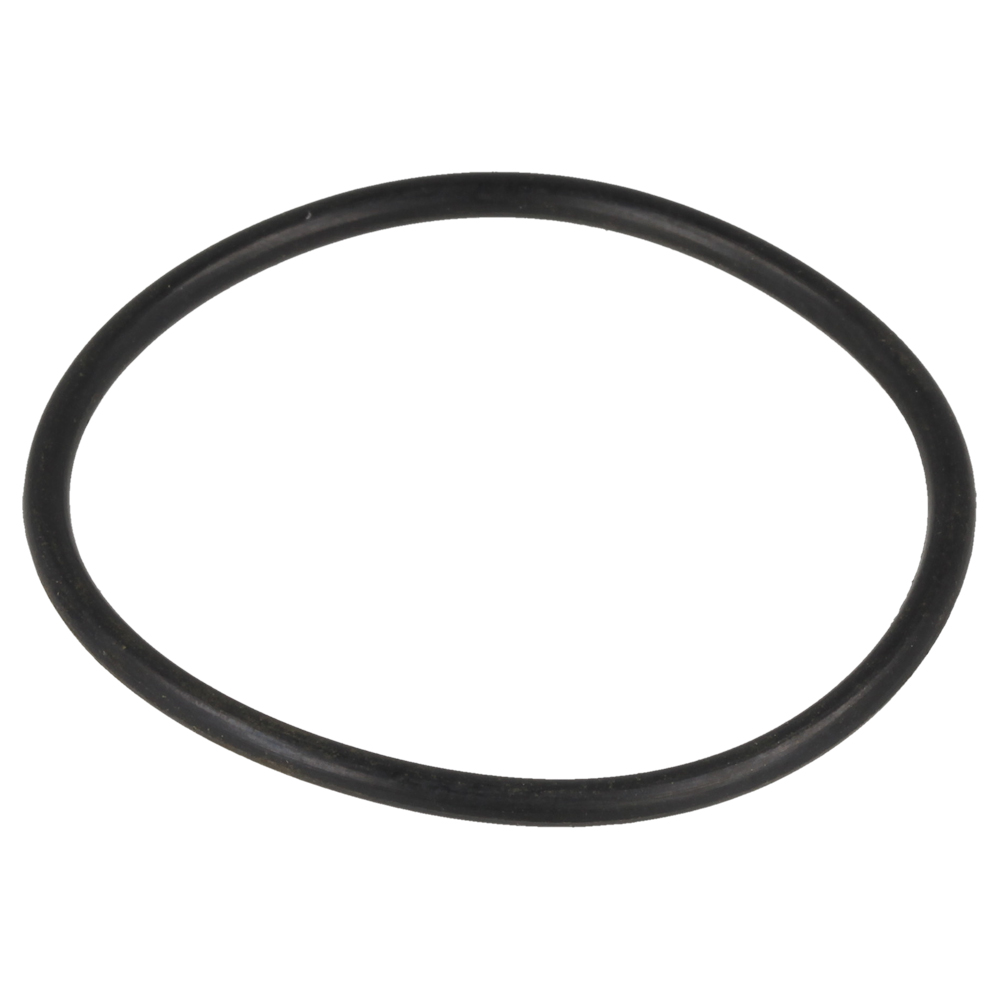

92	MO1139-1290-01 Available to backorder	Packing 574G	£1.40 £1.17
93	MO1139-1510-01 Available to backorder	Cap Kit Pos 92 incl. _ 574G	£9.56 £7.97
94	MO1139-1488-01 Available to backorder	Filter 574G	£48.10 £40.08
95	MO1139-1279-01 Available to backorder	Pin 574G	£4.52 £3.77
96	MO1139-1495-01 Available to backorder	Pin 574G	£4.81 £4.01
97	MO1139-1492-01 Available to backorder	Charge Spring 574G	£4.93 £4.11
99	MO1139-1443-01 Available to backorder	Sealant (Tube) 574G	£38.20 £31.83
104	MO1139-1013-01 Available to backorder	O-Ring 574G	£5.48 £4.57
105	MO1139-0239-01 Available to backorder	Packing 574G	£4.81 £4.01
108	MO1139-1460-01 Available to backorder	Piping 574G	£51.86 £43.22
200	MO1139-2746-01 Available to backorder	Seal Kit 574G	£420.25 £350.21
200	MO1139-2744-01 Available to backorder	Seal Kit 574G	£295.63 £246.36
201	MO1139-1507-01 Available to backorder	Repair Kit	£1,756.43 £1,463.69
