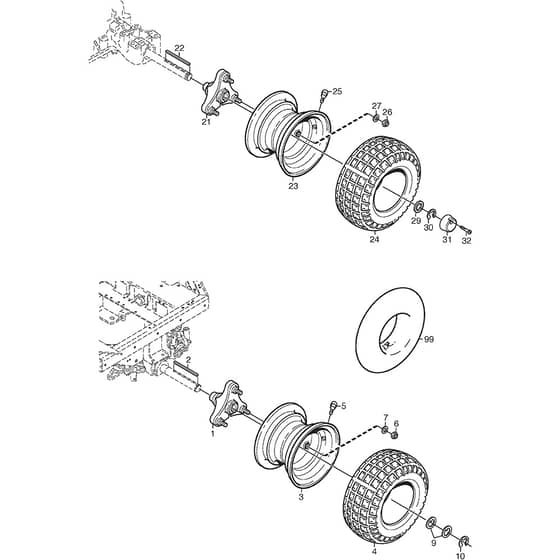

4155H 4WD - 2006 - 13-6104-97 - Mountfield Front Deck Mower Wheels Diagram

Description

Mountfield 4155H 4WD Parts Diagram

Product Name - 4155H

Model Year - 2006

Model Type - P 901 C 4W

Art.N - 13-6104-97

Engine Model -

	Part No.	Details
1	MO1134-4844-03 Available to backorder	Wheel Hub Assy	£57.42 £47.85
2	MO1134-3383-02 Available to backorder	Key	£8.94 £7.45

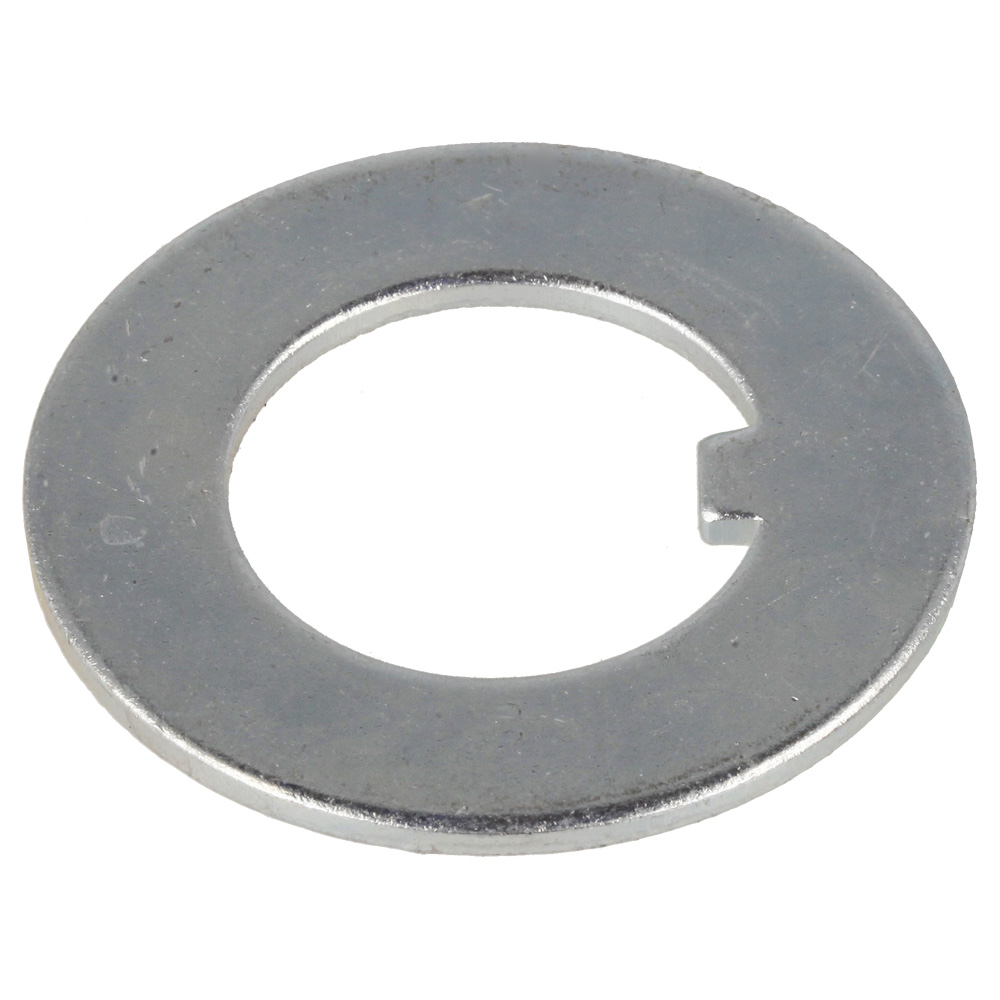

9	MO137670203/0 Available to backorder	Washer	£5.93 £4.94

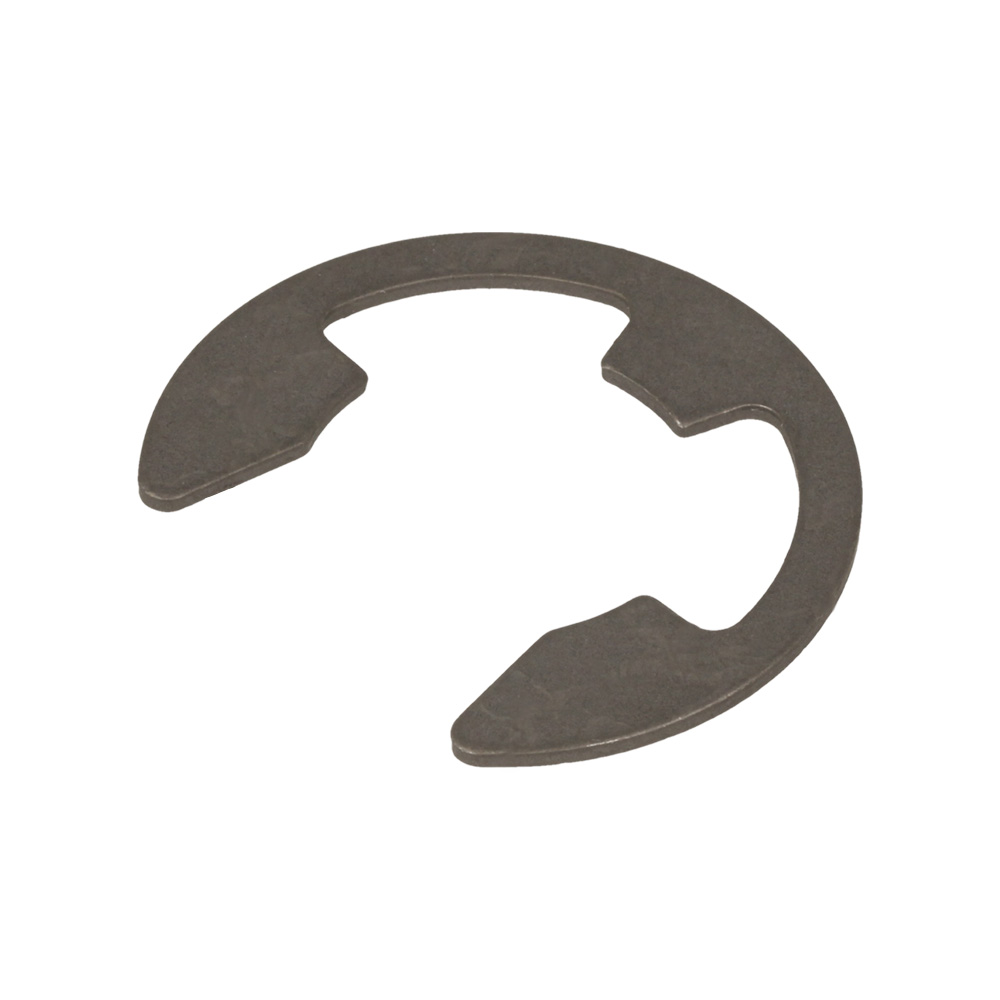

10	MO9653-0002-04 Available to backorder	Lock Ring	£3.38 £2.82
21	MO1134-4844-02 Available to backorder	Wheel Hub Assy	£56.16 £46.80
22	MO1134-2471-01 Available to backorder	Key	£8.94 £7.45
23	MO1134-5255-01 Available to backorder	Rim	£68.99 £57.49
24	MO9545-0126-01 In stock	Tyre 16 x 6.00 - 8	£71.09 £59.24
25	MO9545-0500-00 Available to backorder	Valve Assy.	£5.34 £4.45
26	MO112156602/0 In stock	Lock Nut	£1.39 £1.16
27	MO112521360/0 In stock	Washer	£1.55 £1.29
29	MO9699-0042-02 Available to backorder	Washer	£6.64 £5.53
30	MO9653-0001-04 Available to backorder	Lock Ring	£2.24 £1.87
31	MO1134-4796-01 Available to backorder	Hub Cap	£5.06 £4.22
32	MO9947-0540-19 Available to backorder	Screw	£1.97 £1.64
