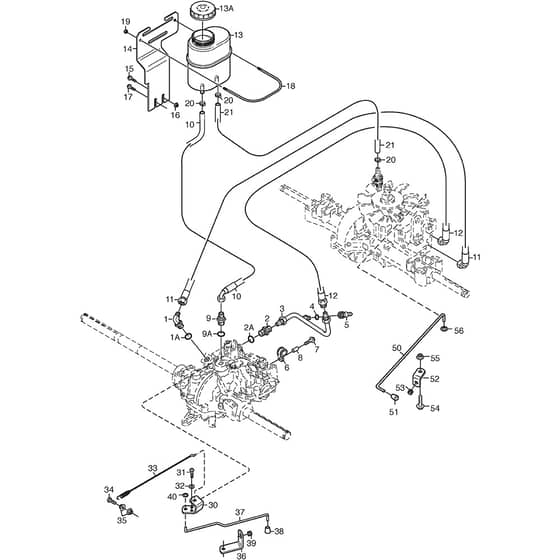

4155H 4WD - 2006 - 13-6104-97 - Mountfield Front Deck Mower Transmission (Hydraulic Parts) Diagram

Description

Mountfield 4155H 4WD Parts Diagram

Product Name - 4155H

Model Year - 2006

Model Type - P 901 C 4W

Art.N - 13-6104-97

Engine Model -

	Part No.	Details
2	MO1134-5875-01 Available to backorder	Hydraulic Coupling 3.4"	£17.54 £14.62
3	MO1134-6039-01 Available to backorder	Hydraulic Pipe Assy	£190.03 £158.36
4	MO1134-4948-01 Available to backorder	Washer 1.4"	£2.69 £2.24
5	MO112375007/0 Available to backorder	Quick Coupling-Male	£18.64 £15.53
6	MO9578-0028-01 Available to backorder	Tube Clamp	£9.42 £7.85
7	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
8	MO1134-1565-09 Available to backorder	Spacer	£14.22 £11.85
9	MO9404-0029-01 Available to backorder	O-Ring (9A)	£5.06 £4.22
9	MO1134-5809-01 Available to backorder	Hydraulic Coupling 3.4" x 9.16"	£17.60 £14.67
10	MO387869517/1 Available to backorder	Hydraulic Tube	£99.95 £83.29
11	MO387869529/1 Available to backorder	Hydraulic Hose	£94.32 £78.60
12	MO1137-0212-01 Available to backorder	Hydraulic Hose	£85.15 £70.96
13	MO387735257/1 Available to backorder	Hydraulic Oil Tank Assy	£119.18 £99.32
13	MO1137-0272-01 Available to backorder	Cap-Hydraulic Oil Tank (13A)	£32.38 £26.98
14	MO1134-6009-01 Available to backorder	Tank Bracket	£29.57 £24.64
17	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
18	MO1134-6030-01 Available to backorder	Tank Loop	£7.66 £6.38
19	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
20	MO9578-0023-04 Available to backorder	Hose Clamp	£6.05 £5.04
21	MO1134-2779-08 Available to backorder	Tube L . 165 mm	£17.87 £14.89
31	MO9939-0612-16 Available to backorder	Screw	£1.97 £1.64
32	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
33	MO137065320/0 Available to backorder	Wire	£19.86 £16.55
34	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
36	MO1134-6084-01 Available to backorder	Control Bracket	£9.73 £8.11
37	MO1134-6083-01 Available to backorder	Control Rod	£7.18 £5.98
50	MO1134-4015-01 Available to backorder	Pull Rod	£11.26 £9.38
51	MO1134-4014-01 Available to backorder	Knob	£4.78 £3.98
52	MO1134-4713-01 Available to backorder	Angle Bracket	£13.50 £11.25
53	MO1134-2790-01 Available to backorder	Cable Protection	£6.46 £5.38
54	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
54	MO112800815/0 Available to backorder	Screw	£1.63 £1.36
55	MO112293201/0 In stock	Nut	£1.70 £1.42
56	MO112604896/0 Available to backorder	Starlock	£1.55 £1.29
