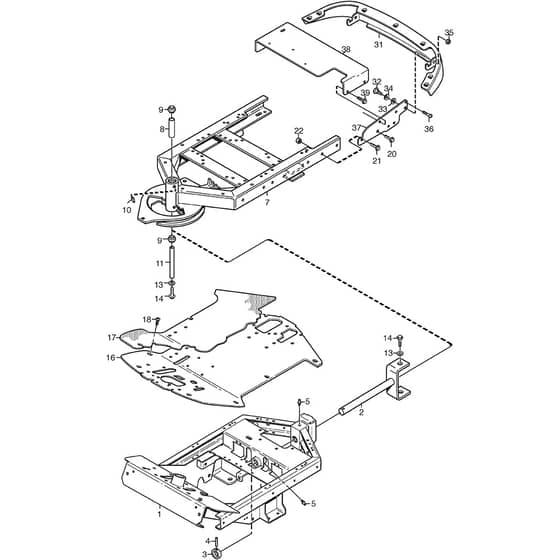

4155H 4WD - 2006 - 13-6104-97 - Mountfield Front Deck Mower Frame Diagram

Name: 4155H 4WD - 2006 - 13-6104-97 - Mountfield Front Deck Mower Frame Diagram
SKU: 4155h_4wd_13_6104_97_frame-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4155H 4WD - 2006 - 13-6104-97 - Mountfield Front Deck Mower Frame Diagram

Description

Mountfield 4155H 4WD Parts Diagram

Product Name - 4155H

Model Year - 2006

Model Type - P 901 C 4W

Art.N - 13-6104-97

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387800039/0 Available to backorder	Frame-Front	£929.10 £774.25
2	MO1137-1119-02 Available to backorder	Fork	£168.92 £140.77
3	MO1134-0031-00 Available to backorder	Pivot Shaft Stop	£24.36 £20.30
4	MO9595-0262-00 Available to backorder	Locating Pin	£1.69 £1.41
7	MO1134-6466-02 Available to backorder	Frame Assy-Rear	£438.08 £365.07
8	MO1134-5705-01 Available to backorder	Spacer	£22.81 £19.01
9	MO9547-0001-00 Available to backorder	Bearing	£29.56 £24.63
10	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
11	MO1134-5988-01 Available to backorder	Centre Shaft	£22.38 £18.65
13	MO112521360/0 In stock	Washer	£1.55 £1.29
14	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
16	MO1134-6586-01 Available to backorder	Floor Plate (5-01)	£168.92 £140.77
18	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
21	MO9959-0820-16 In stock	Screw	£1.55 £1.29
22	MO112293201/0 In stock	Nut	£1.69 £1.41
32	MO1134-0240-00 In stock	Screw	£8.80 £7.33
33	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
34	MO9665-0002-00 Available to backorder	Washer	£2.26 £1.88
35	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
36	MO9943-0516-16 In stock	Screw	£1.22 £1.02
39	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
