4155H - 2009-2012 - 13-6003-81 - Mountfield Front Deck Mower Electrics Diagram

Name: 4155H - 2009-2012 - 13-6003-81 - Mountfield Front Deck Mower Electrics Diagram
SKU: 4155h_13_6003_81_electrics-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4155H - 2009-2012 - 13-6003-81 - Mountfield Front Deck Mower Electrics Diagram

Description

Mountfield 4155H Parts Diagram

Product Name - 4155H

Model Year - 2009-2012

Model Type - P 901 C

Art.N - 13-6003-81

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118120068/0 In stock	Battery	£113.48 £94.57
2	MO9400-0327-01 Available to backorder	Fuse Holder Incl Fuse Inkl. pos 2B	£9.16 £7.63
2	MO1134-5769-01 Available to backorder	Harness (Park Compact Hst)	£158.74 £132.28
2	MO1134-3496-06 Available to backorder	Fuse (20A) Yellow	£1.40 £1.17
3	MO1134-5343-01 Available to backorder	Battery Bracket	£127.45 £106.21
5	MO112523040/0 In stock	Washer	£1.49 £1.24

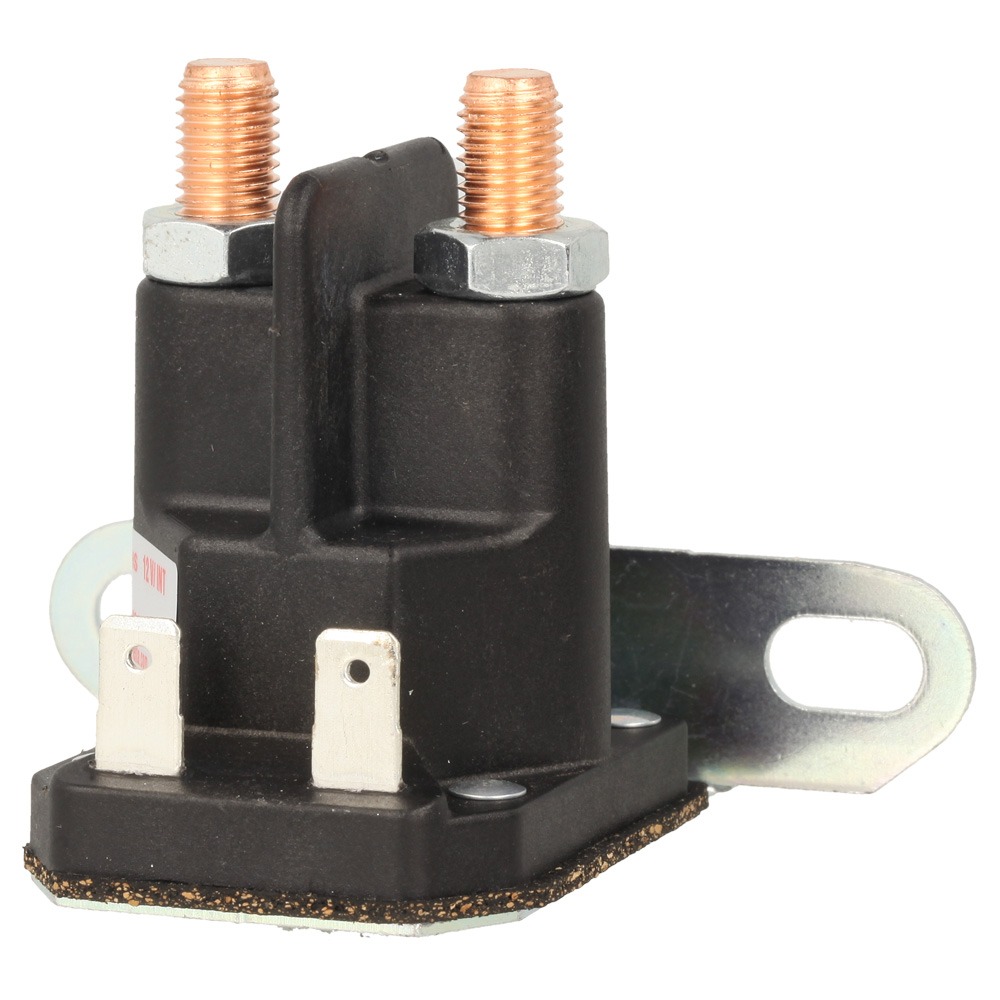

6	MO118736112/0 In stock	Solenoid	£38.00 £31.67
7	MO9852-8013-16 Available to backorder	Screw	£2.12 £1.77
8	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17

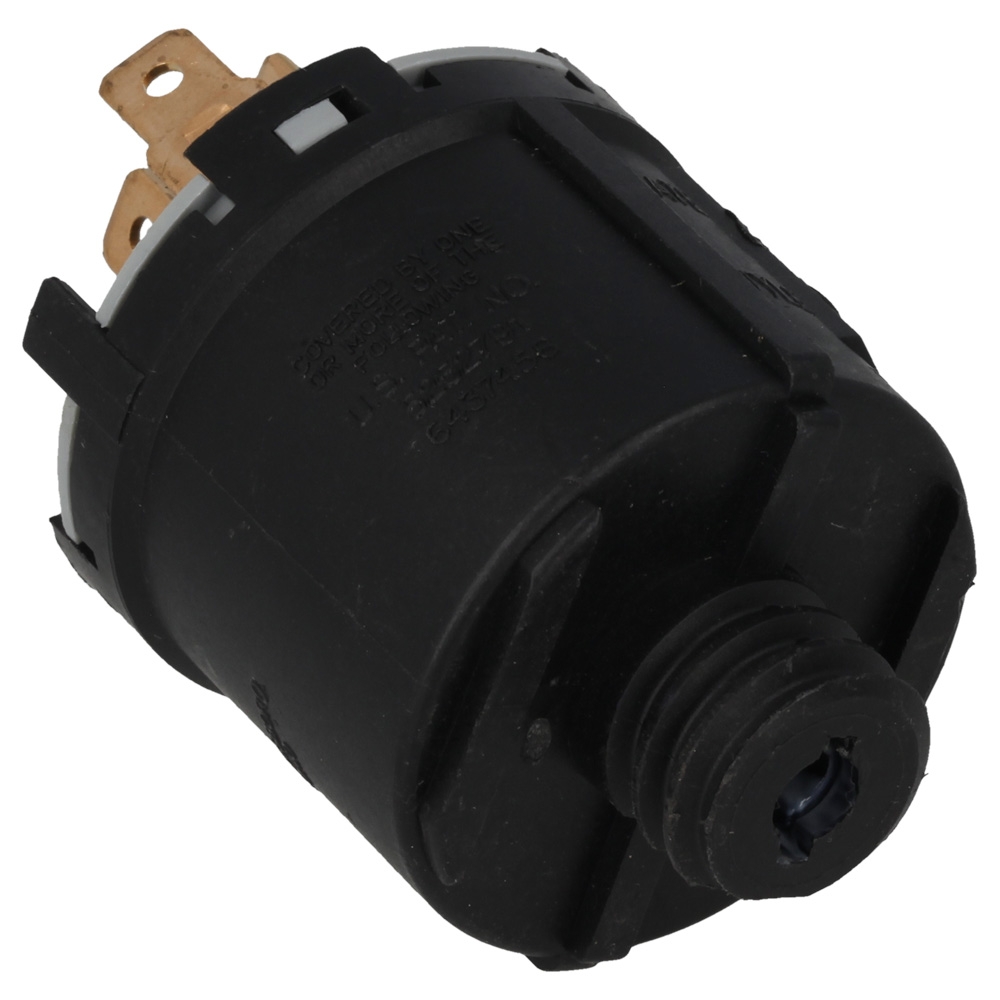

9	MO1134-4093-01 Available to backorder	Ignition Switch	£64.75 £53.96

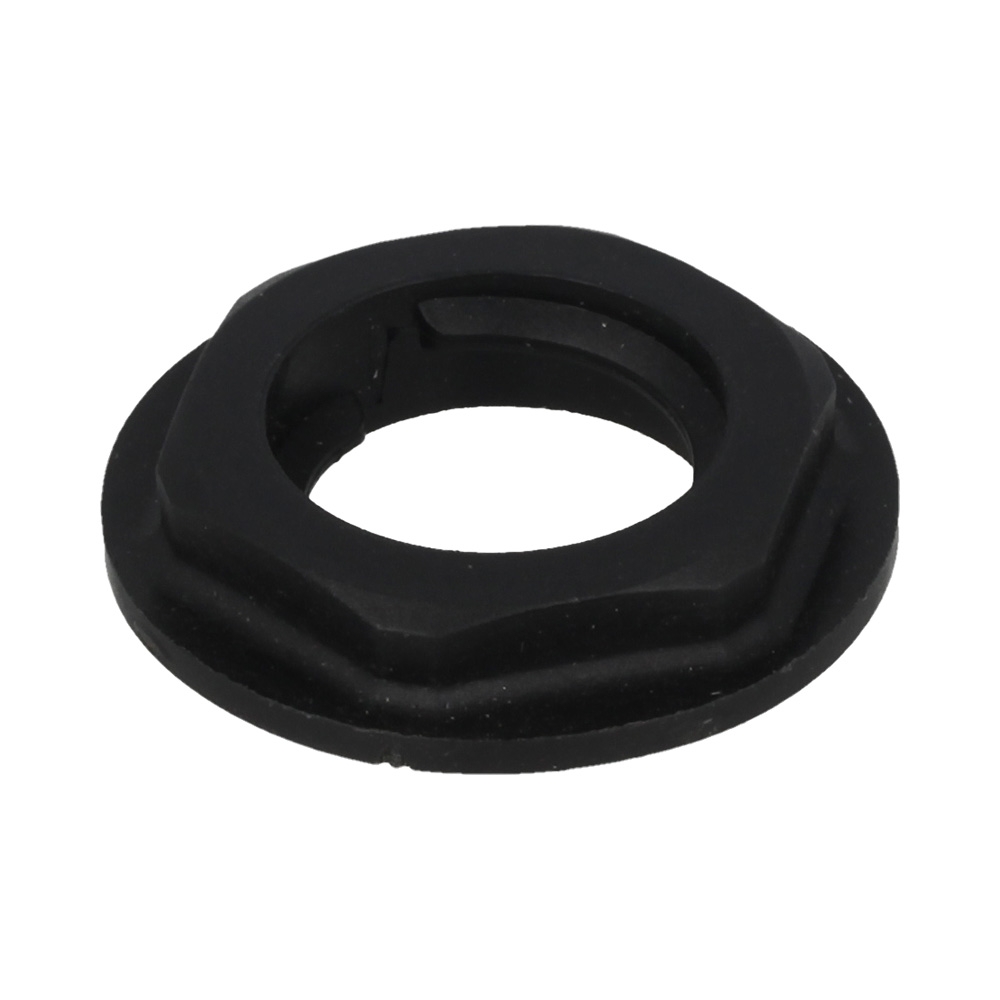

10	MO1134-4749-01 Available to backorder	Nut	£5.42 £4.52
11	MO1134-5245-01 Available to backorder	Battery Strap	£22.45 £18.71
12	MO1134-2167-02 Available to backorder	Cable (-) L . 630 mm	£20.28 £16.90
12	MO1134-2167-01 Available to backorder	Cable L . 530 mm	£25.06 £20.88
13	MO1134-0234-02 Available to backorder	Battery Cable (+)	£24.42 £20.35
14	MO1134-2310-01 Available to backorder	Guard Cap (+)	£8.87 £7.39
15	MO112361005/0 Available to backorder	Nut 1.4" UNC	£4.22 £3.52
15	MO112292102/0 In stock	Nut M6	£1.69 £1.41
16	MO9579-0003-00 Available to backorder	Cable Holder	£2.12 £1.77

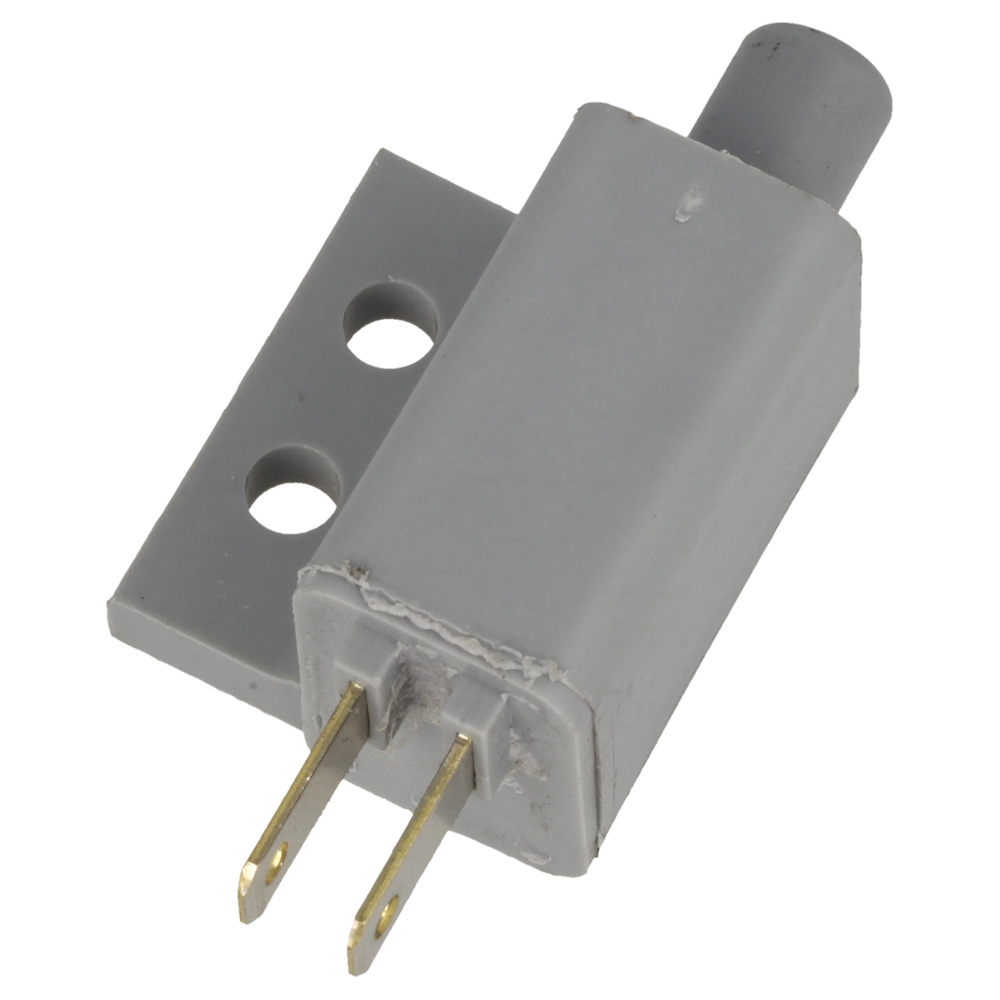

25	MO1134-3399-02 Available to backorder	Switch	£43.64 £36.37
26	MO9997-0520-16 Available to backorder	Screw	£1.97 £1.64
27	MO112154330/0 In stock	Nut	£1.55 £1.29
