4155H - 2007 - 13-6103-98 - Mountfield Front Deck Mower Transmission Diagram

Description

Mountfield 4155H Parts Diagram

Product Name - 4155H

Model Year - 2007

Model Type - P 901 C

Art.N - 13-6103-98

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387205001/0 Available to backorder	Tension Arm	£45.04 £37.53
2	MO387605028/0 In stock	Tension Roller	£44.70 £37.25
3	MO9924-1035-16 Available to backorder	Screw	£5.60 £4.67
4	MO112295200/0 In stock	Nut	£1.40 £1.17
5	MO1134-9058-01 In stock	Drive Belt	£21.67 £18.06
6	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
7	MO112292102/0 In stock	Nut	£1.69 £1.41
8	MO1134-3377-02 Available to backorder	Control Rod	£16.46 £13.72
9	MO4231-0013-00 In stock	Spring	£8.52 £7.10
10	MO1134-4171-01 Available to backorder	Pivot Pin	£16.39 £13.66
11	MO1134-4183-01 Available to backorder	Spring	£8.23 £6.86
12	MO1134-3456-01 Available to backorder	Bushing	£5.76 £4.80
14	MO1134-1565-08 Available to backorder	Spacer	£8.65 £7.21
15	MO9997-0870-16 Available to backorder	Screw	£2.12 £1.77
18	MO1134-6414-01 In stock	Spring	£5.35 £4.46
19	MO112523040/0 In stock	Washer	£1.49 £1.24
20	MO1137-0123-01 Available to backorder	Transaxle (K46) Kanzaki K46G	£1,554.77 £1,295.64
21	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
21	MO9960-0860-12 Available to backorder	Screw	£1.97 £1.64
23	MO1134-3913-01 Available to backorder	Strut	£17.17 £14.31
24	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
25	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
26	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
26	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
27	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
28	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
29	MO1134-2765-02 Available to backorder	Oil Tank	£41.99 £34.99
30	MO1134-2777-02 Available to backorder	Filler Cap	£16.40 £13.67

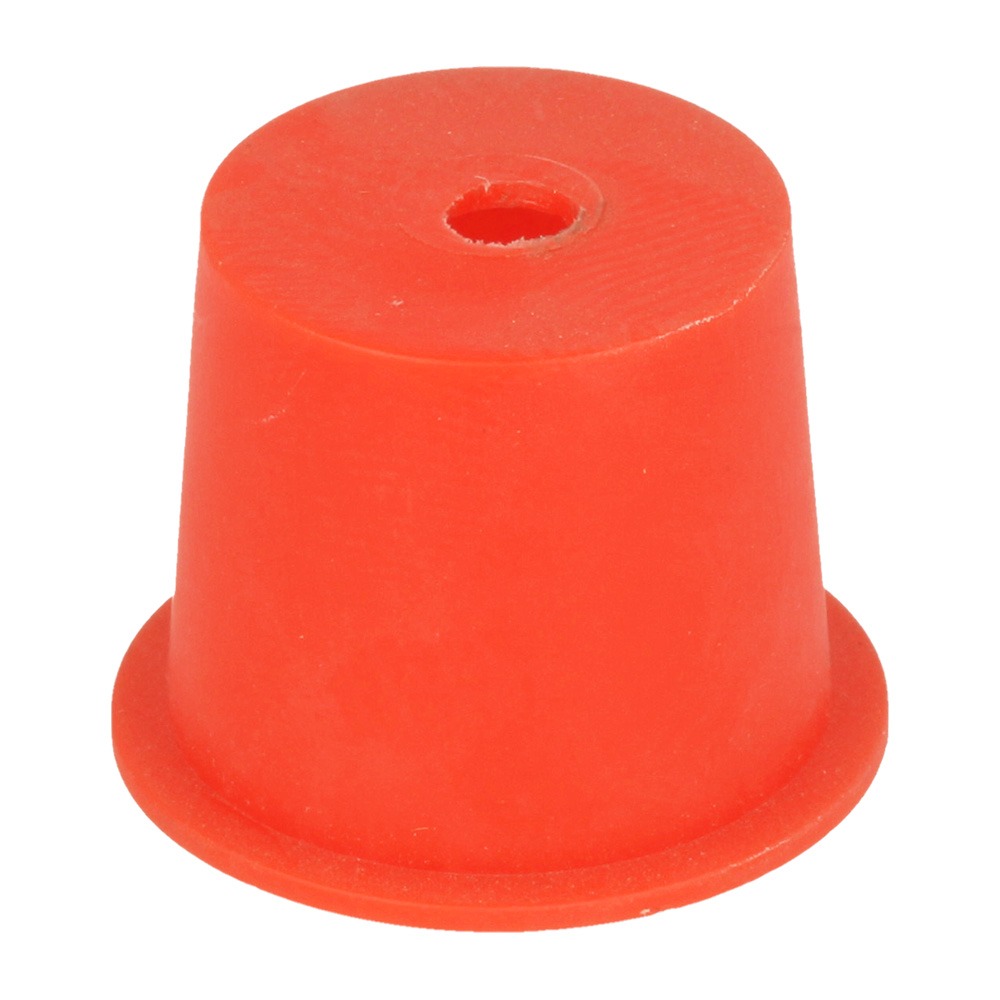

31	MO1134-3734-01 Available to backorder	Vent Plug	£12.60 £10.50
32	MO1134-2778-01 Available to backorder	Band	£13.81 £11.51
33	MO9852-8013-16 Available to backorder	Screw	£2.12 £1.77
34	MO9699-0099-02 Available to backorder	Washer	£1.82 £1.52
35	MO9578-0023-04 Available to backorder	Hose Clamp	£6.05 £5.04

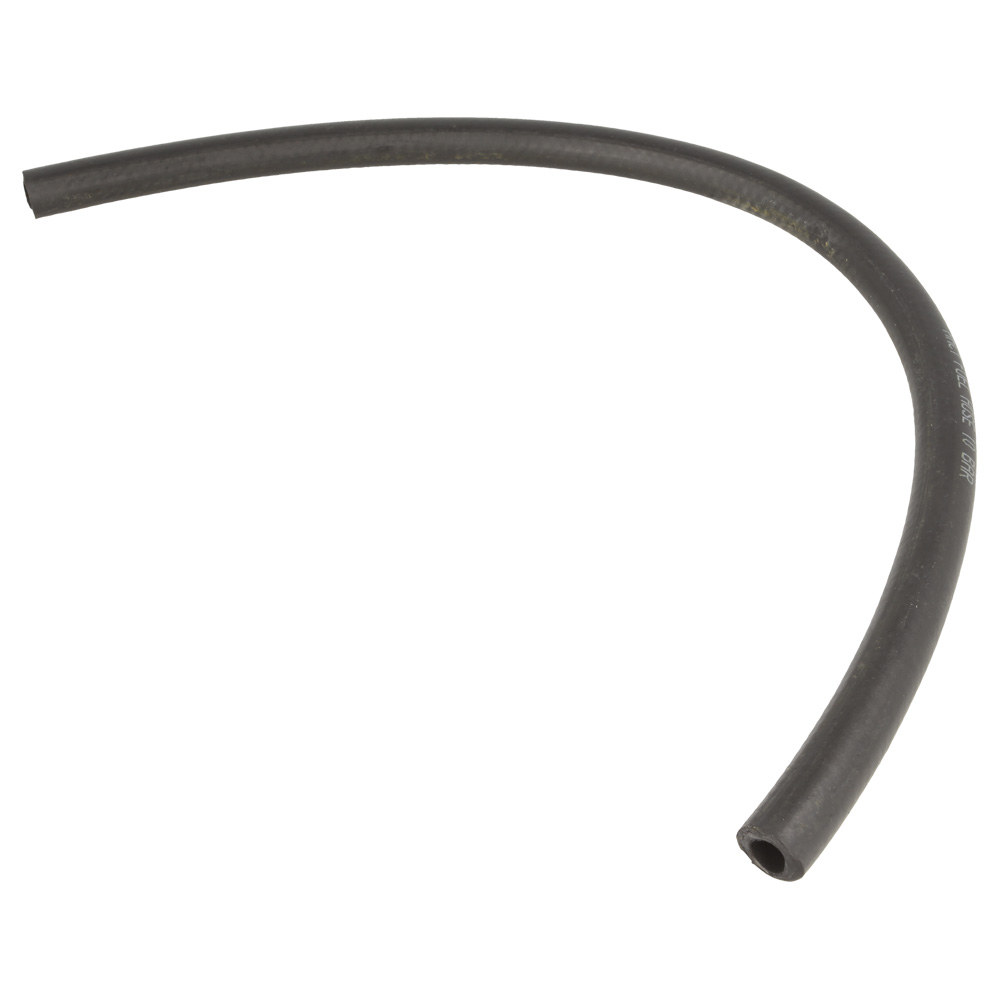

36	MO1134-2779-03 Available to backorder	Tube L . 140 mm	£9.30 £7.75
40	MO1134-4015-01 Available to backorder	Pull Rod	£11.27 £9.39
41	MO1134-4014-01 Available to backorder	Knob	£4.78 £3.98
42	MO1134-4713-01 Available to backorder	Angle Bracket	£13.50 £11.25
43	MO1134-2790-01 Available to backorder	Cable Protection	£6.47 £5.39
44	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
46	MO112604896/0 Available to backorder	Starlock	£1.55 £1.29
51	MO1134-3289-02 Available to backorder	Belt Guide	£21.12 £17.60
52	MO9959-0820-16 In stock	Screw	£1.55 £1.29
53	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
54	MO112293201/0 In stock	Nut	£1.69 £1.41

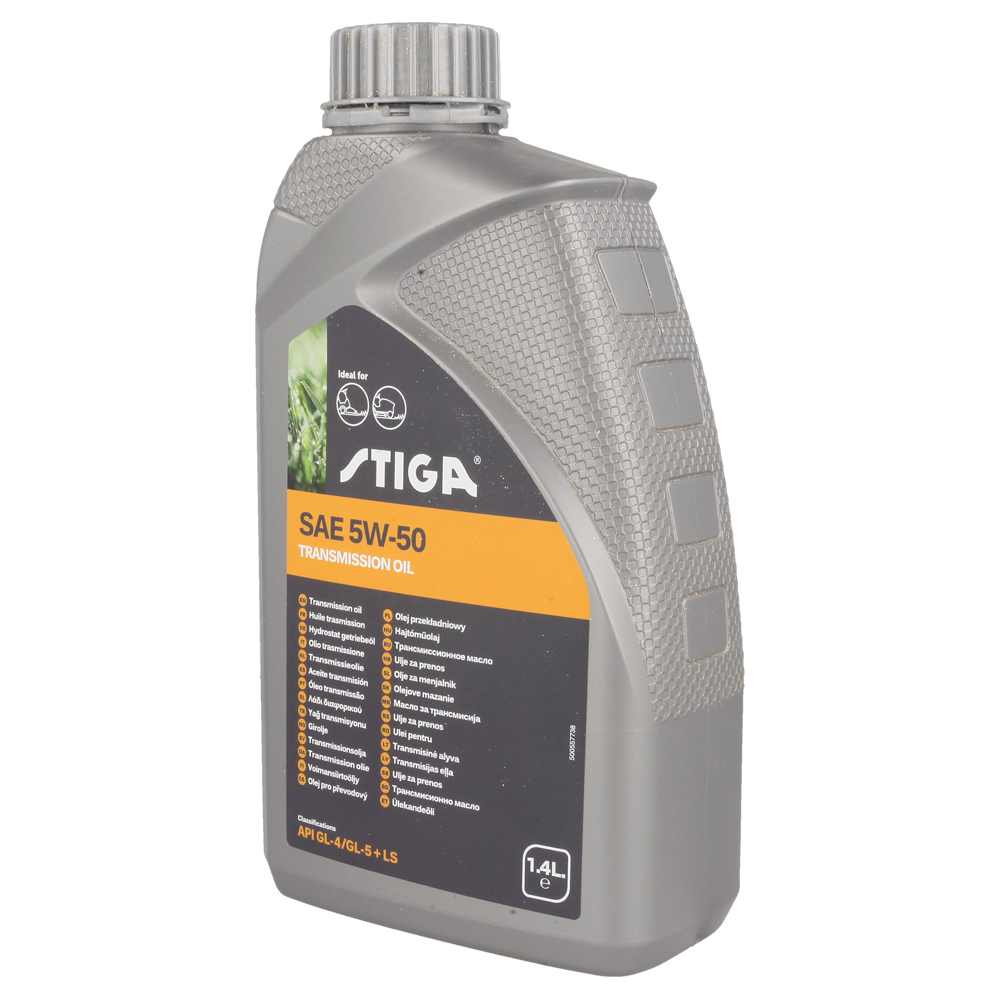

301	MO1111-9281-01 Available to backorder	Transmission Oil Sae 5W-50 1.4L	£29.47 £24.56

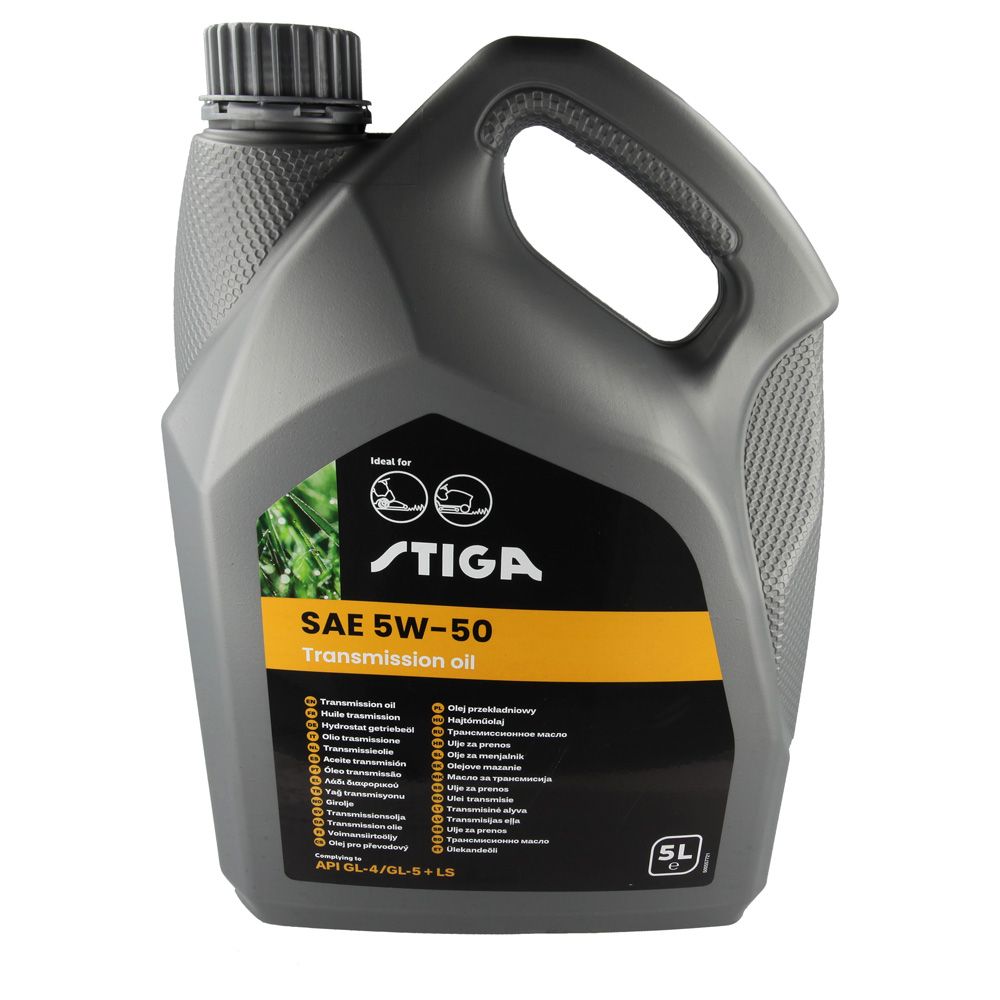

302	MO1111-9282-01 In stock	Transmission Oil Sae 5W-50 5L	£100.91 £84.09
303	MO1111-9300-01 Available to backorder	Transmission Oil Sae 5W-50 60L	£945.29 £787.74
