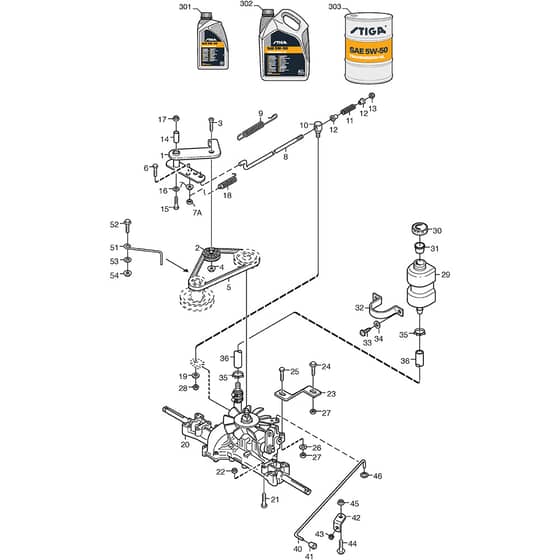

4155H - 2006 - 13-6103-97 - Mountfield Front Deck Mower Transmission Diagram

Name: 4155H - 2006 - 13-6103-97 - Mountfield Front Deck Mower Transmission Diagram
SKU: 4155h_13_6103_97_transmission-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4155H - 2006 - 13-6103-97 - Mountfield Front Deck Mower Transmission Diagram

Description

Mountfield 4155H Parts Diagram

Product Name - 4155H

Model Year - 2006

Model Type - P 901 C

Art.N - 13-6103-97

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details

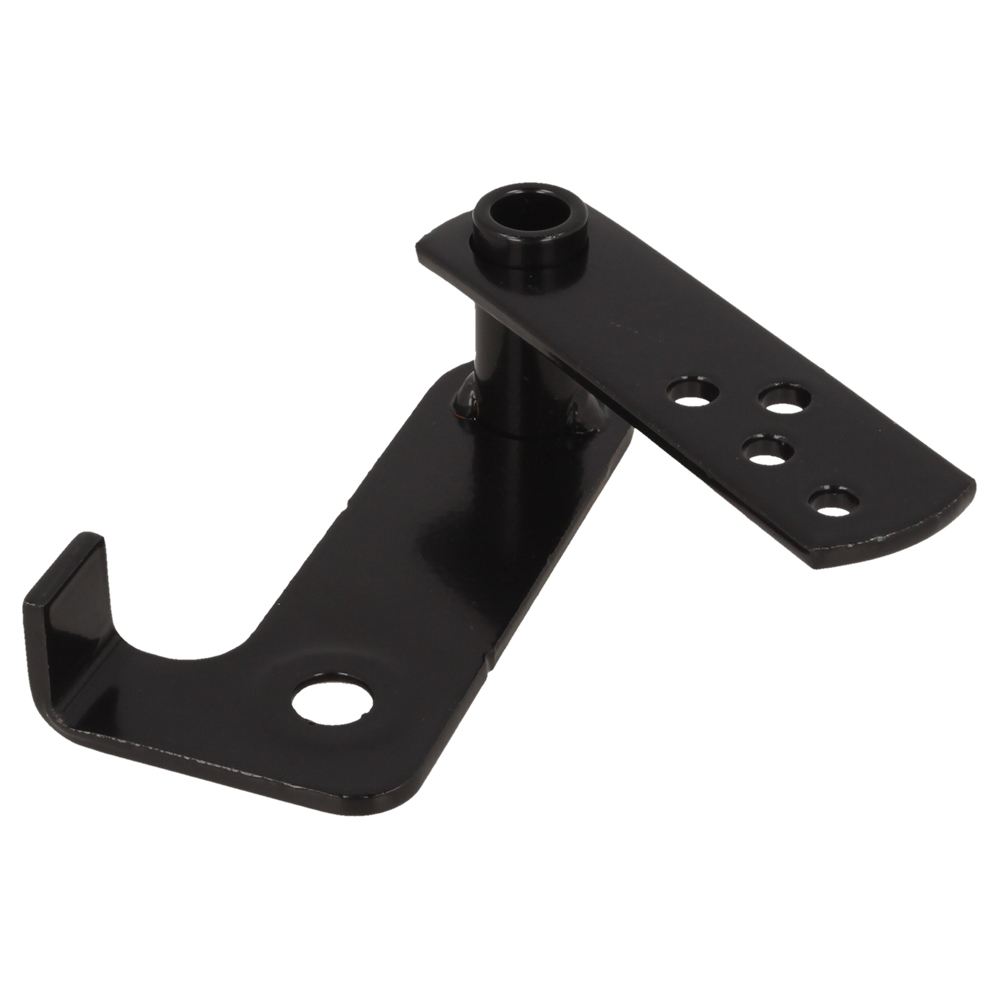

1	MO387205001/0 Available to backorder	Tension Arm	£45.04 £37.53

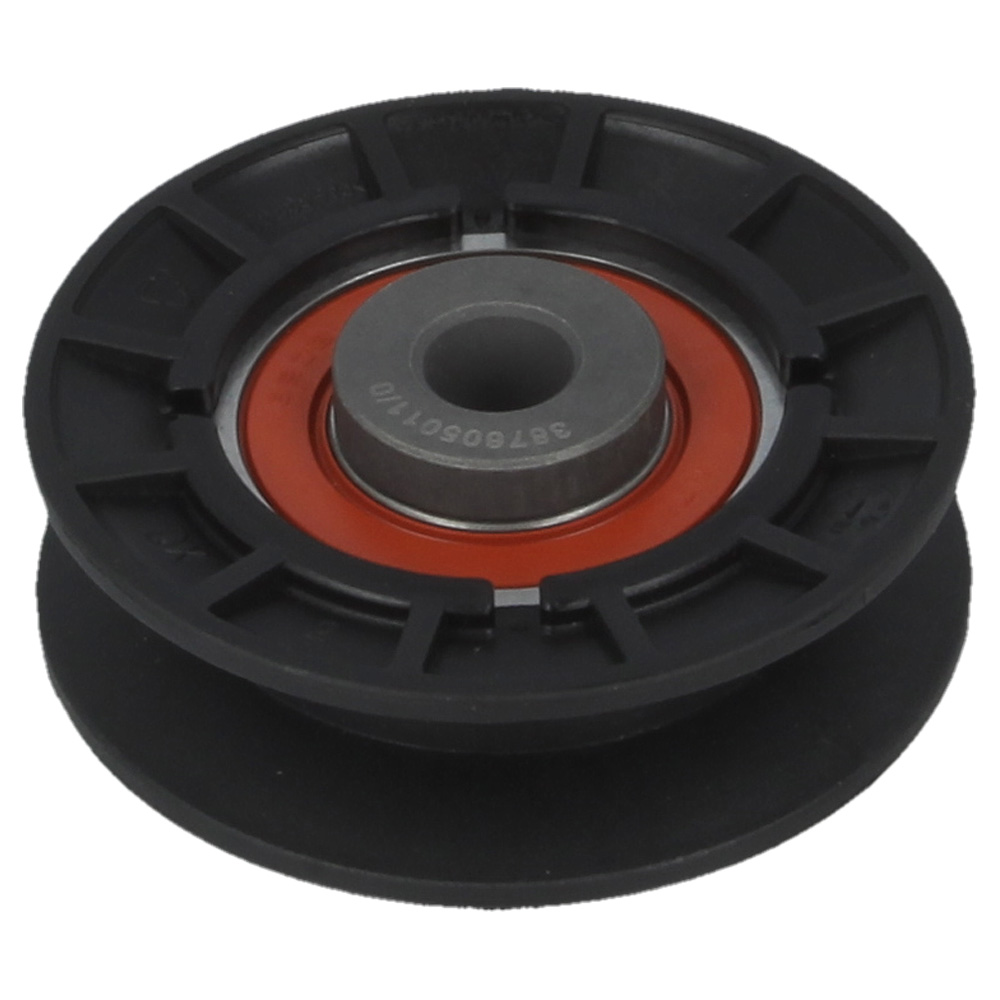

2	MO387605028/0 In stock	Tension Roller	£44.70 £37.25
3	MO9924-1035-16 Available to backorder	Screw	£5.60 £4.67
4	MO112295200/0 In stock	Nut	£1.40 £1.17
5	MO1134-9058-01 In stock	Drive Belt	£21.67 £18.06
6	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
7	MO112292102/0 In stock	Nut	£1.69 £1.41

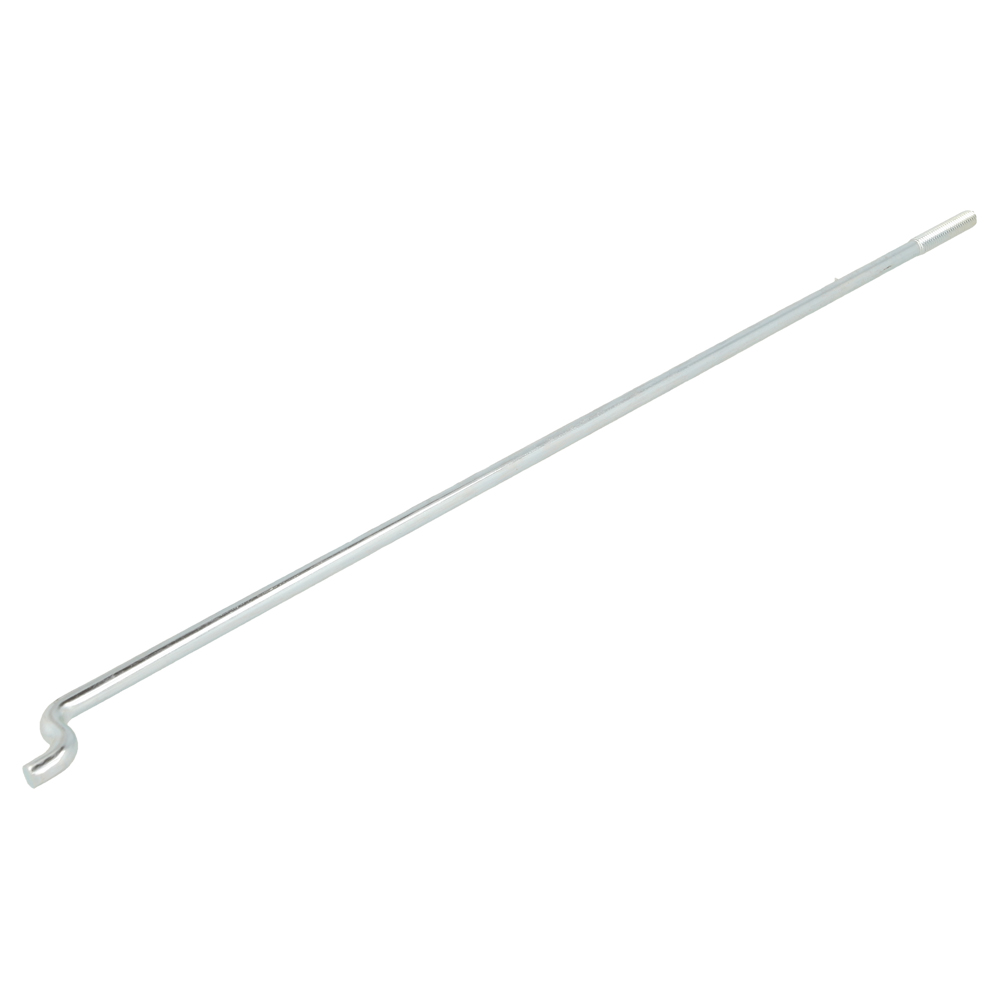

8	MO1134-3377-02 Available to backorder	Control Rod	£16.46 £13.72
9	MO4231-0013-00 In stock	Spring	£8.52 £7.10
10	MO1134-4171-01 Available to backorder	Pivot Pin	£16.39 £13.66

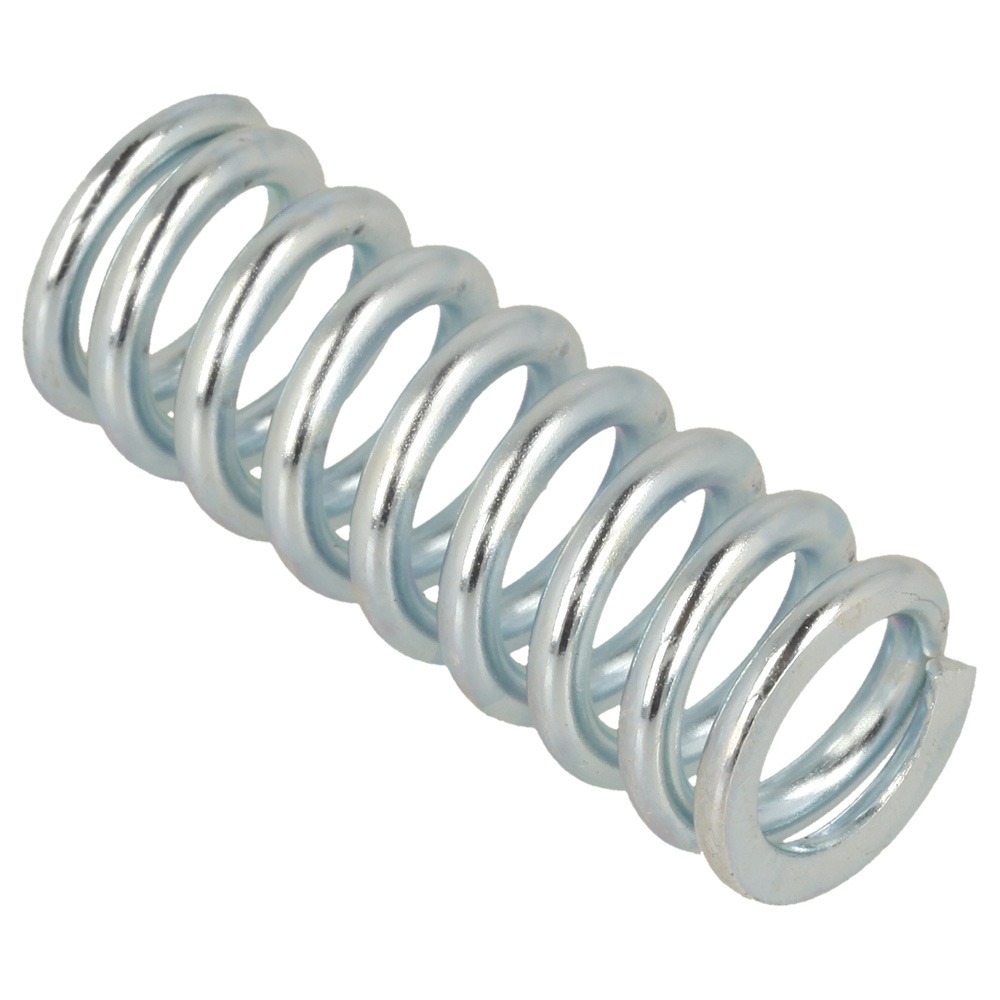

11	MO1134-4183-01 Available to backorder	Spring	£8.23 £6.86

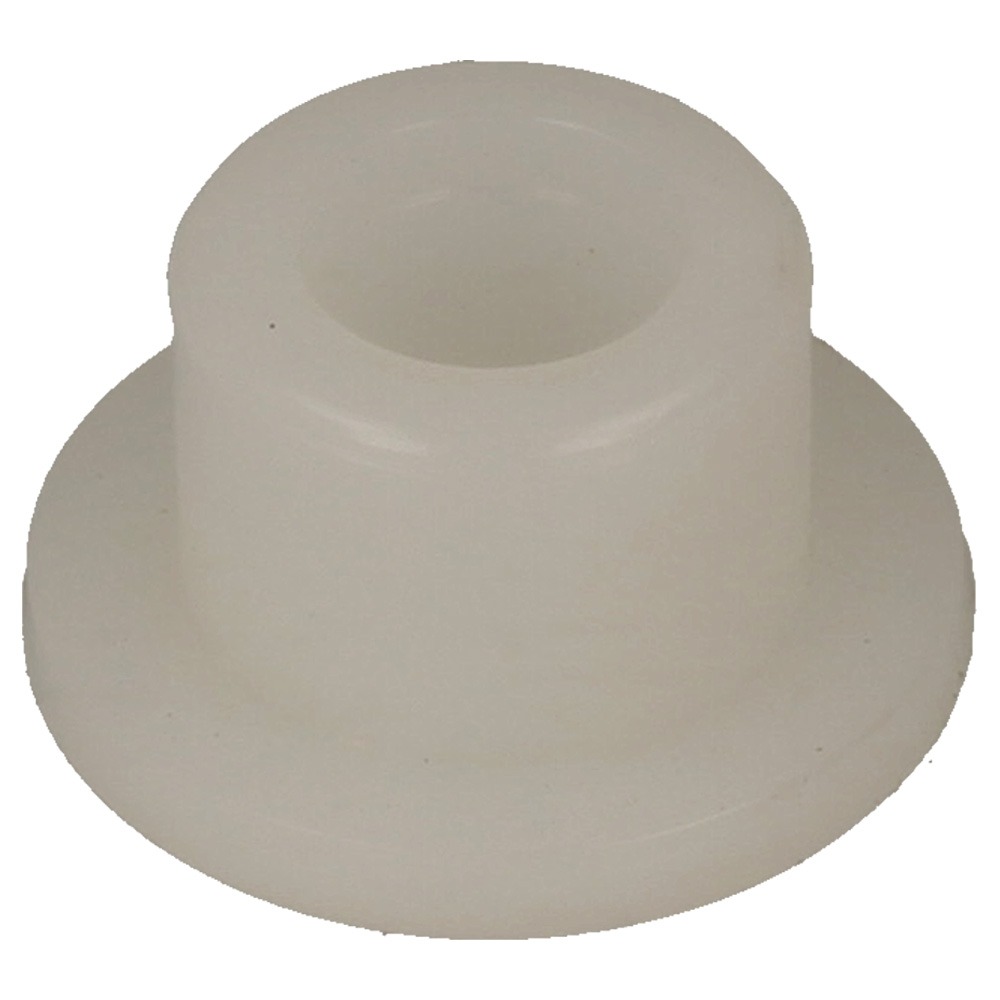

12	MO1134-3456-01 Available to backorder	Bushing	£5.76 £4.80
13	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
14	MO1134-1565-08 Available to backorder	Spacer	£8.65 £7.21
15	MO9997-0870-16 Available to backorder	Screw	£2.12 £1.77
16	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
17	MO112155000/0 In stock	Lock Nut	£1.55 £1.29

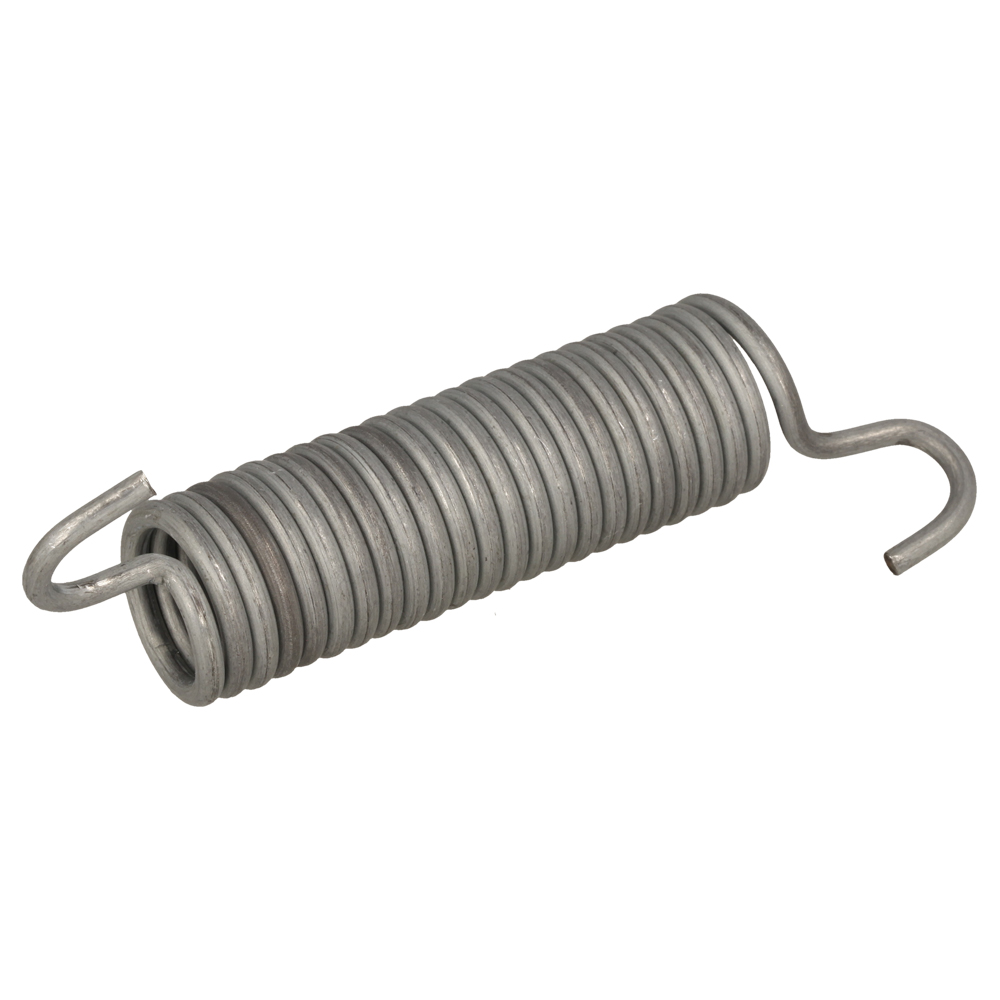

18	MO1134-6414-01 In stock	Spring	£5.35 £4.46
19	MO112523040/0 In stock	Washer	£1.49 £1.24
20	MO1137-0123-01 Available to backorder	Transaxle (K46) Kanzaki K46G	£1,554.77 £1,295.64
21	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
21	MO9960-0860-12 Available to backorder	Screw	£1.97 £1.64
303	MO1111-9300-01 Available to backorder	Transmission Oil Sae 5W-50 60L	£945.29 £787.74
