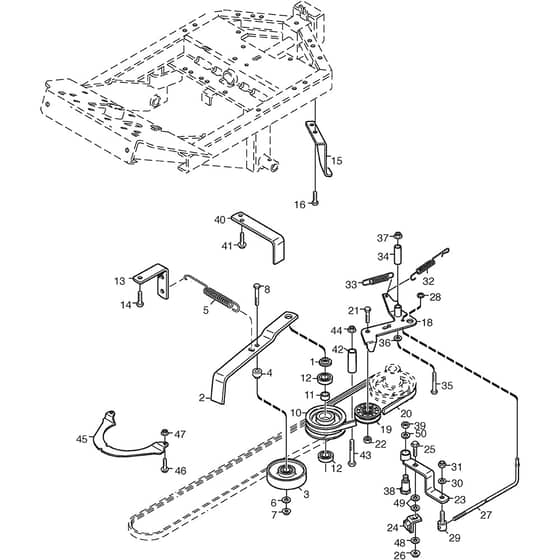

4155H - 2006 - 13-6103-97 - Mountfield Front Deck Mower PTO (Power Take Off) Diagram

Name: 4155H - 2006 - 13-6103-97 - Mountfield Front Deck Mower PTO (Power Take Off) Diagram
SKU: 4155h_13_6103_97_pto_power_take_off_-group
Price: 1.16 GBP
Availability: InStock

Part No. 4155h_13_6103_97_pto_power_take_off_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4155H - 2006 - 13-6103-97 - Mountfield Front Deck Mower PTO (Power Take Off) Diagram

Description

Mountfield 4155H Parts Diagram

Product Name - 4155H

Model Year - 2006

Model Type - P 901 C

Art.N - 13-6103-97

Engine Model -

	Part No.	Details
1	MO1134-5548-01 In stock	Spacer	£13.94 £11.62
2	MO1137-1124-01 Available to backorder	Tension Wheel Arm	£81.66 £68.05
3	MO387605007/0 Available to backorder	Tension Roller	£59.12 £49.27
4	MO1134-1888-04 Available to backorder	Spacer	£9.01 £7.51
5	MO1134-5111-01 Available to backorder	Spring	£18.08 £15.07
8	MO9997-0855-12 Available to backorder	Screw	£1.84 £1.53
10	MO387605002/0 In stock	Centre Belt Pulley Pos 11 - 12 incl.	£83.06 £69.22
11	MO1134-0051-09 Available to backorder	Spacer	£13.66 £11.38
12	MO119216056/0 In stock	Ball Bearing	£22.25 £18.54
13	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
14	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
18	MO1134-2018-02 Available to backorder	Tension Arm	£39.42 £32.85
19	MO387605008/0 In stock	Tension Roller (Black)	£35.20 £29.33
20	MO1134-9173-01 In stock	Drive Belt	£25.44 £21.20
21	MO9997-1030-16 Available to backorder	Screw	£2.69 £2.24
22	MO112295200/0 In stock	Nut	£1.39 £1.16
23	MO1134-4111-01 In stock	Brake Arm	£29.84 £24.87
24	MO1134-4164-03 Available to backorder	Brake Pad	£30.98 £25.82
25	MO9897-0825-16 Available to backorder	Screw	£2.93 £2.44
26	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
27	MO1134-4162-01 Available to backorder	Brake Rod	£16.48 £13.73
28	MO112604897/0 Available to backorder	Starlock	£1.63 £1.36
29	MO1134-4170-01 Available to backorder	Nippel	£16.75 £13.96
30	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
31	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
32	MO4231-0013-00 In stock	Spring	£8.53 £7.11
33	MO1135-3307-01 Available to backorder	Brake Spring	£23.30 £19.42
34	MO1134-1565-10 Available to backorder	Spacer	£8.22 £6.85
35	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
36	MO112523060/0 In stock	Washer	£1.55 £1.29
37	MO112293201/0 In stock	Nut	£1.70 £1.42
38	MO1134-4163-02 Available to backorder	Shoulder Bolt	£10.27 £8.56
39	MO112156602/0 In stock	Lock Nut	£1.39 £1.16
40	MO1134-3958-01 Available to backorder	Belt Guide	£17.04 £14.20
41	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
42	MO1134-0041-03 Available to backorder	Bushing	£11.26 £9.38
43	MO9997-1070-12 In stock	Screw	£3.52 £2.93
44	MO9739-1031-22 In stock	Nut	£1.97 £1.64
45	MO1134-3654-01 Available to backorder	Guard	£35.06 £29.22
46	MO9959-0612-16 Available to backorder	Screw	£1.46 £1.22
47	MO112292102/0 In stock	Nut	£1.70 £1.42
48	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
50	MO112521360/0 In stock	Washer	£1.55 £1.29
