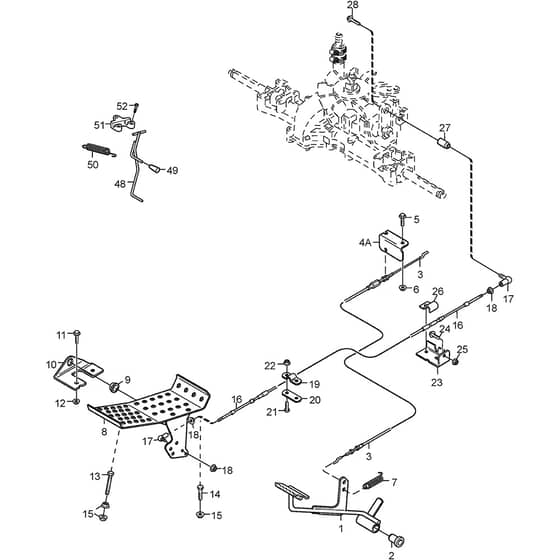

4155H - 2006 - 13-6103-97 - Mountfield Front Deck Mower Foot Controls Diagram

Name: 4155H - 2006 - 13-6103-97 - Mountfield Front Deck Mower Foot Controls Diagram
SKU: 4155h_13_6103_97_foot_controls-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4155H - 2006 - 13-6103-97 - Mountfield Front Deck Mower Foot Controls Diagram

Description

Mountfield 4155H Parts Diagram

Product Name - 4155H

Model Year - 2006

Model Type - P 901 C

Art.N - 13-6103-97

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO1134-0068-00 Available to backorder	Bushing	£4.37 £3.64
3	MO1134-3584-03 In stock	Cable. Thread Engine Brake	£33.79 £28.16
4	MO1134-6467-01 Available to backorder	Cable Holder (4A)	£7.46 £6.22
7	MO1134-3974-01 Available to backorder	Spring	£12.10 £10.08
8	MO1134-6353-01 Available to backorder	Drive Pedal	£46.46 £38.72
9	MO1134-6313-01 Available to backorder	Bearing	£7.03 £5.86
10	MO1134-2700-01 Available to backorder	Bracket	£17.04 £14.20
13	MO9997-0870-16 Available to backorder	Screw	£2.12 £1.77
14	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
16	MO1134-2766-05 Available to backorder	Speed Control Cable	£75.31 £62.76
17	MO9570-0001-00 In stock	Elbow Link	£19.57 £16.31

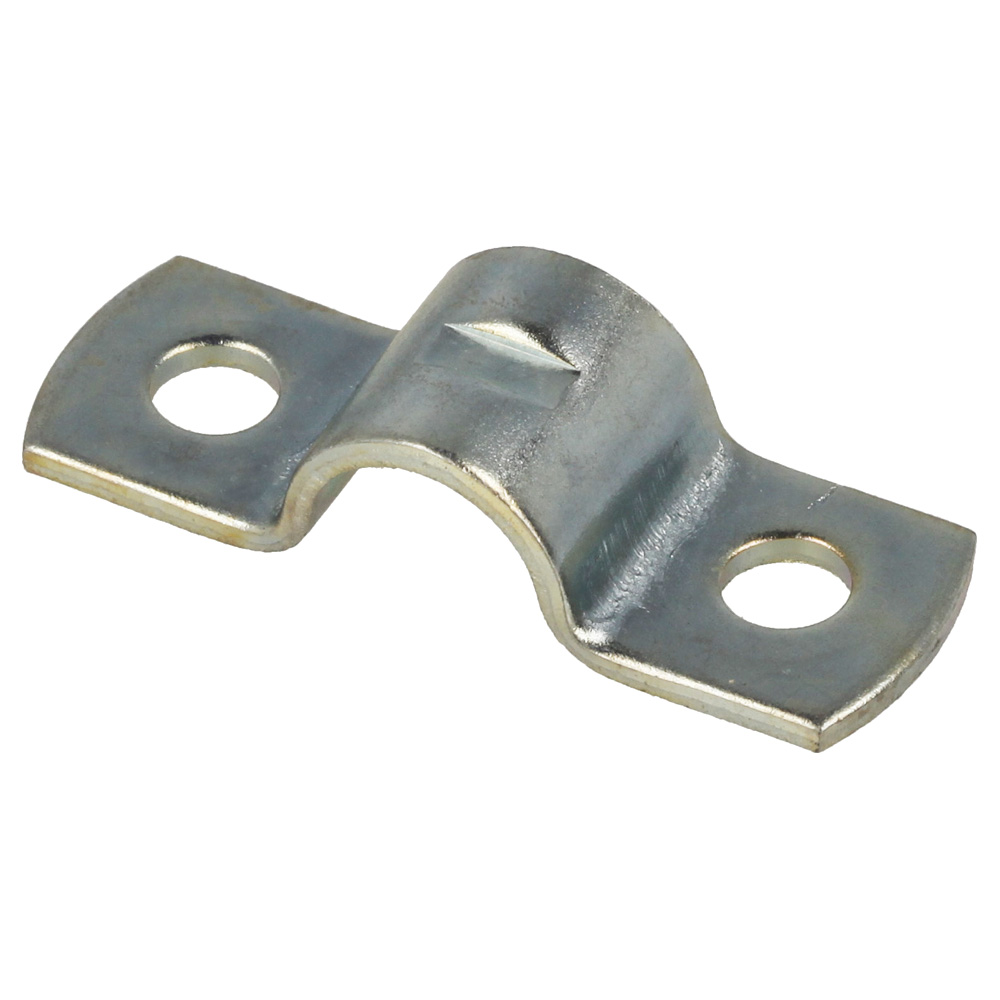

19	MO1134-0266-00 Available to backorder	Attaching Clamp	£7.03 £5.86

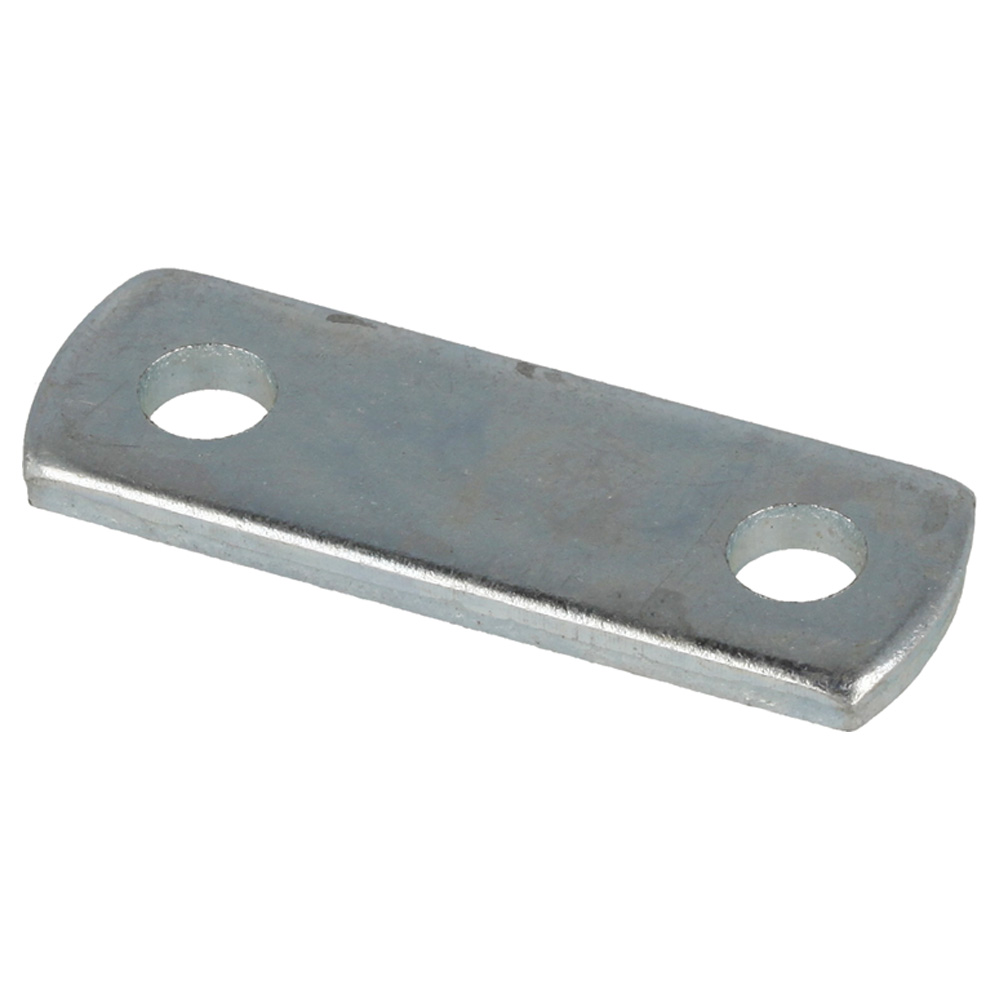

20	MO325547443/0 Available to backorder	Clamp Plate	£6.05 £5.04
21	MO9997-0520-16 Available to backorder	Screw	£1.97 £1.64
22	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
23	MO1134-3395-01 Available to backorder	Attachment	£29.28 £24.40
25	MO112293201/0 In stock	Nut	£1.69 £1.41
26	MO1134-2021-01 Available to backorder	Clamp	£7.03 £5.86
27	MO1134-4013-01 Available to backorder	Spacer	£20.96 £17.47
28	MO9959-0820-16 In stock	Screw	£1.55 £1.29
48	MO1134-5353-01 Available to backorder	Brake Rod	£51.62 £43.02
49	MO1134-2786-01 Available to backorder	Knob	£6.05 £5.04
50	MO1131-1497-01 Available to backorder	Brake Spring	£10.20 £8.50
51	MO1134-4002-01 Available to backorder	Brake Rod Attachment	£11.96 £9.97
52	MO9838-9516-12 Available to backorder	Screw	£2.12 £1.77
