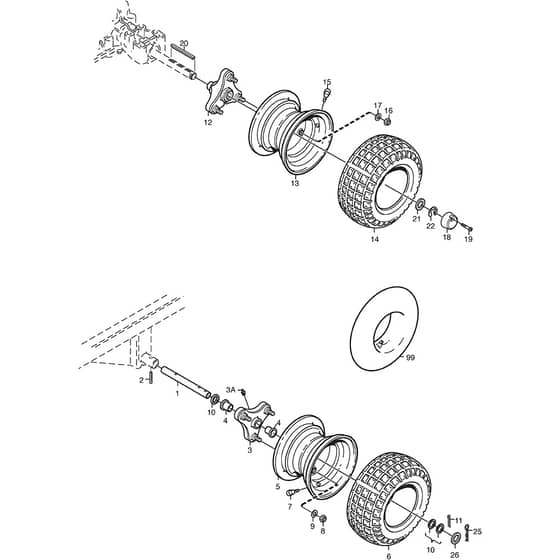

4155H - 2004 - 13-6103-95 - Mountfield Front Deck Mower Wheels Diagram

Description

Mountfield 4155H Parts Diagram

Product Name - 4155H

Model Year - 2004

Model Type - P 901 C

Art.N - 13-6103-95

Engine Model -

	Part No.	Details
1	MO1134-0075-01 Available to backorder	Front Axle	£43.63 £36.36
2	MO112645710/0 In stock	Locating Pin	£2.11 £1.76
3	MO112379511/0 Available to backorder	Grease Dispenser (3A)	£1.55 £1.29
3	MO1134-4844-05 In stock	Wheel Hub Assy Pos 3A - 4 incl.	£58.98 £49.15
4	MO137038009/0 In stock	Bearing	£5.76 £4.80
10	MO1134-0341-01 Available to backorder	Washer	£6.64 £5.53
11	MO9599-0080-02 Available to backorder	Cotter Pin	£2.11 £1.76
12	MO1134-4844-02 Available to backorder	Wheel Hub Assy	£56.16 £46.80
13	MO1134-5255-01 Available to backorder	Rim	£68.99 £57.49

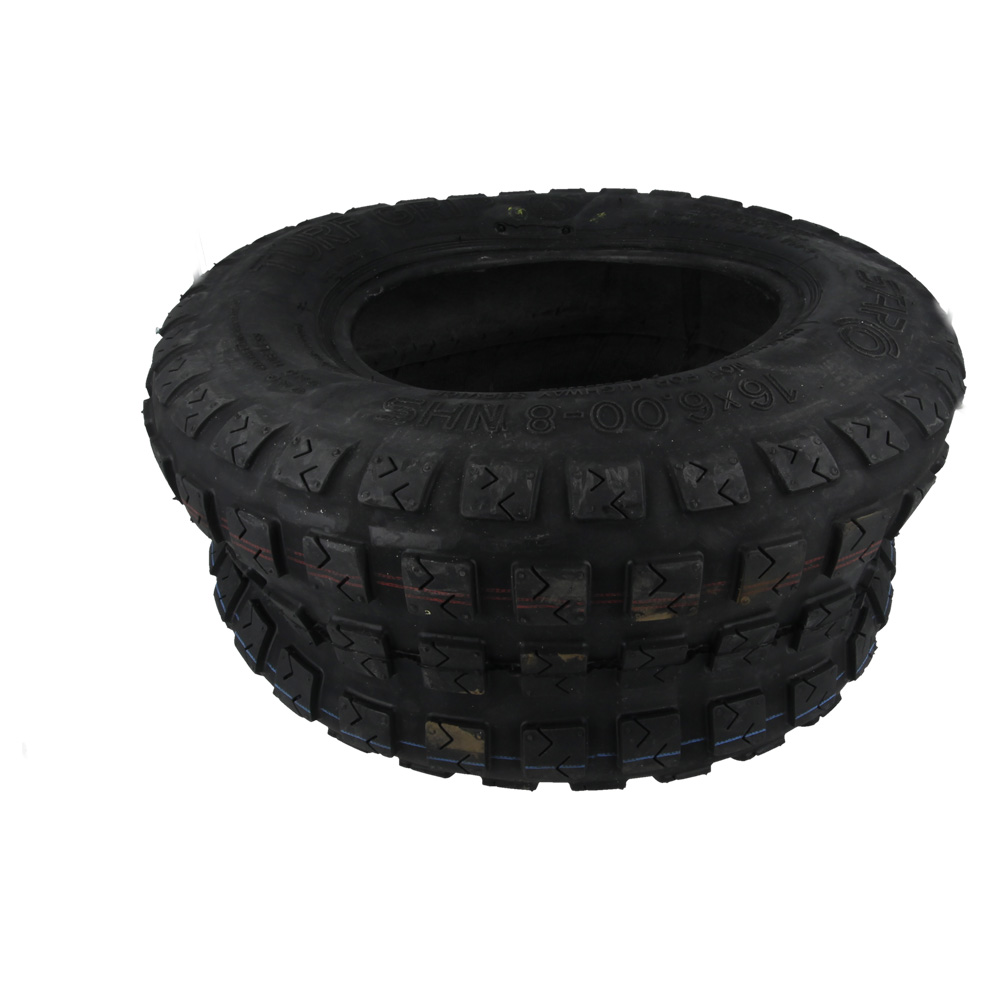

14	MO9545-0126-01 In stock	Tyre 16 x 6.00 - 8	£71.09 £59.24
15	MO9545-0500-00 Available to backorder	Valve Assy.	£5.34 £4.45
16	MO112156602/0 In stock	Lock Nut	£1.39 £1.16
17	MO112521360/0 In stock	Washer	£1.55 £1.29
18	MO1134-4796-01 Available to backorder	Hub Cap	£5.06 £4.22
19	MO9947-0540-19 Available to backorder	Screw	£1.97 £1.64
20	MO1134-2471-01 Available to backorder	Key	£8.94 £7.45
22	MO9653-0001-04 Available to backorder	Lock Ring	£2.24 £1.87
25	MO9598-0003-02 Available to backorder	Spring Pin	£1.97 £1.64
26	MO9699-0042-02 Available to backorder	Washer	£6.64 £5.53
