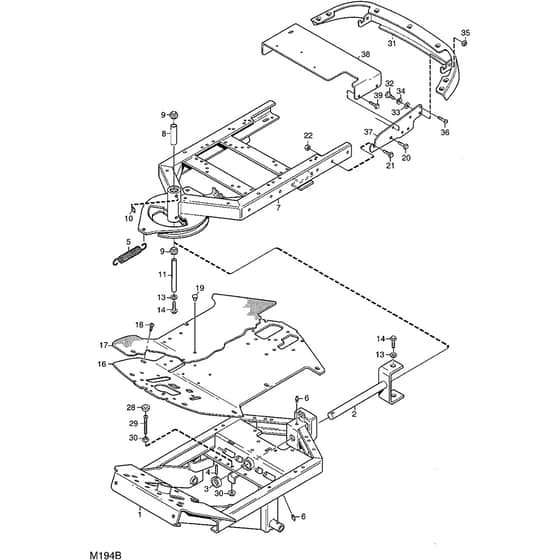

4140H - 2010 - 13-6002-81 - Mountfield Front Deck Mower Frame Diagram

Name: 4140H - 2010 - 13-6002-81 - Mountfield Front Deck Mower Frame Diagram
SKU: 4140h_13_6002_81_frame-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4140H - 2010 - 13-6002-81 - Mountfield Front Deck Mower Frame Diagram

Description

Mountfield 4140H Parts Diagram

Product Name - 4140H

Model Year - 2010

Model Type - P 901 C

Art.N - 13-6002-81

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387800011/0 Available to backorder	Frame-Front	£837.60 £698.00
2	MO1137-1119-02 Available to backorder	Fork	£168.92 £140.77
3	MO1134-0031-00 Available to backorder	Pivot Shaft Stop	£24.36 £20.30
4	MO9595-0262-00 Available to backorder	Locating Pin	£1.69 £1.41
5	MO1134-2171-01 Available to backorder	Spring	£19.30 £16.08
7	MO1134-6466-02 Available to backorder	Frame-Rear Assy	£438.08 £365.07
8	MO1134-5705-01 Available to backorder	Spacer	£22.81 £19.01
9	MO9547-0001-00 Available to backorder	Bearing	£29.56 £24.63
10	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
11	MO1134-5988-01 Available to backorder	Centre Shaft	£22.38 £18.65
13	MO112521360/0 In stock	Washer	£1.55 £1.29
14	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
16	MO1134-6586-01 Available to backorder	Floor Plate (5-01)	£168.92 £140.77
17	MO114369182/3 Available to backorder	Floor Mat Hst	£63.35 £52.79
18	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
19	MO9403-0048-70 Available to backorder	Cover Plug	£9.28 £7.73
21	MO9959-0820-16 In stock	Screw	£1.55 £1.29
22	MO112293201/0 In stock	Nut	£1.69 £1.41
29	MO9950-0570-12 Available to backorder	Screw	£2.96 £2.47
30	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
32	MO1134-0240-00 In stock	Screw	£8.80 £7.33
33	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
34	MO9665-0002-00 Available to backorder	Washer	£2.26 £1.88
35	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
36	MO9943-0516-16 In stock	Screw	£1.22 £1.02
39	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
