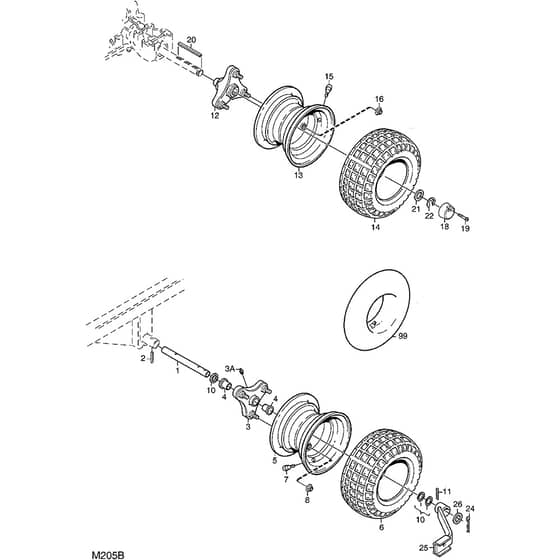

4135H - 2008 - 13-6102-99 - Mountfield Front Mower Wheels Diagram

Name: 4135H - 2008 - 13-6102-99 - Mountfield Front Mower Wheels Diagram
SKU: 4135h_13_6102_99_wheels-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4135H - 2008 - 13-6102-99 - Mountfield Front Mower Wheels Diagram

Description

Mountfield 4135H Parts Diagram

Product Name - 4135H

Model Year - 2008

Model Type - P 901 C

Art.N - 13-6102-99

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-0075-01 Available to backorder	Front Axle	£43.64 £36.37
2	MO112645710/0 Available to backorder	Locating Pin	£2.12 £1.77
3	MO1134-4844-05 In stock	Wheel Hub Assy 4 incl.	£59.12 £49.27
3	MO112379511/0 Available to backorder	Grease Dispenser (3A)	£1.55 £1.29
4	MO137038009/0 In stock	Bearing	£5.76 £4.80
5	MO1134-5255-01 Available to backorder	Rim	£100.57 £83.81
6	MO9545-0126-01 In stock	Tyre 16 x 6.00 - 8	£71.08 £59.23
7	MO9545-0500-00 Available to backorder	Valve Assy.	£5.35 £4.46
8	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
10	MO1134-0341-01 Available to backorder	Washer	£6.62 £5.52
11	MO9599-0080-02 Available to backorder	Cotter Pin	£2.12 £1.77
12	MO1134-4844-02 Available to backorder	Wheel Hub Assy	£56.16 £46.80
26	MO9699-0042-02 Available to backorder	Washer 20 X 36 X 3	£6.62 £5.52
