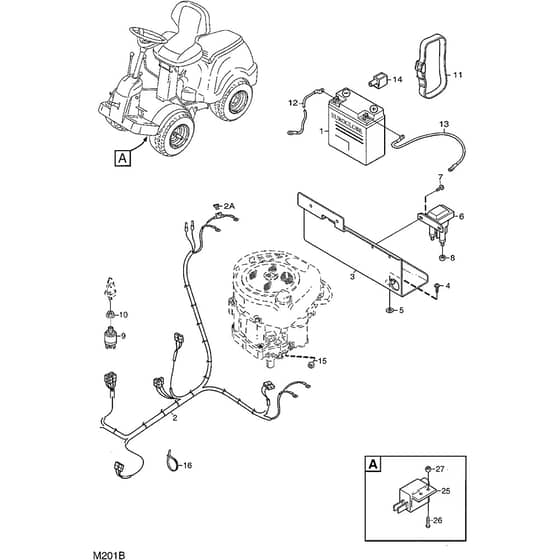

4135H - 2007 - 13-6102-98 - Mountfield Front Mower Electric Equipment Diagram

Description

Mountfield 4135H Parts Diagram

Product Name - 4135H

Model Year - 2007

Model Type - P 901 C

Art.N - 13-6102-98

Engine Model -

	Part No.	Details
1	MO118120068/0 In stock	Battery	£113.47 £94.56
2	MO1134-3496-06 Available to backorder	Fuse (20A) Yellow (2A)	£1.39 £1.16
3	MO1134-5343-01 Available to backorder	Battery Bracket	£127.46 £106.22
5	MO112523040/0 In stock	Washer	£1.55 £1.29
6	MO118736112/0 In stock	Solenoid	£38.00 £31.67
7	MO9852-8013-16 Available to backorder	Screw	£2.11 £1.76
8	MO9743-5121-32 Available to backorder	Nut	£1.46 £1.22
9	MO1134-4093-01 In stock	Ignition Switch	£64.75 £53.96
10	MO1134-4749-01 Available to backorder	Nut	£5.65 £4.71
11	MO1134-5245-01 Available to backorder	Battery Strap	£22.45 £18.71
12	MO1134-2167-01 Available to backorder	Cable	£20.29 £16.91
13	MO1134-0234-02 Available to backorder	Battery Cable (+)	£24.42 £20.35
14	MO1134-2310-01 Available to backorder	Guard Cap (+)	£8.86 £7.38
15	MO112361005/0 Available to backorder	Nut	£4.24 £3.53
16	MO9579-0003-00 Available to backorder	Cable Holder	£2.11 £1.76
25	MO1134-3399-02 Available to backorder	Switch	£43.63 £36.36
26	MO9997-0520-16 Available to backorder	Screw	£1.97 £1.64
27	MO112154330/0 In stock	Use 112154330.0	£1.55 £1.29
