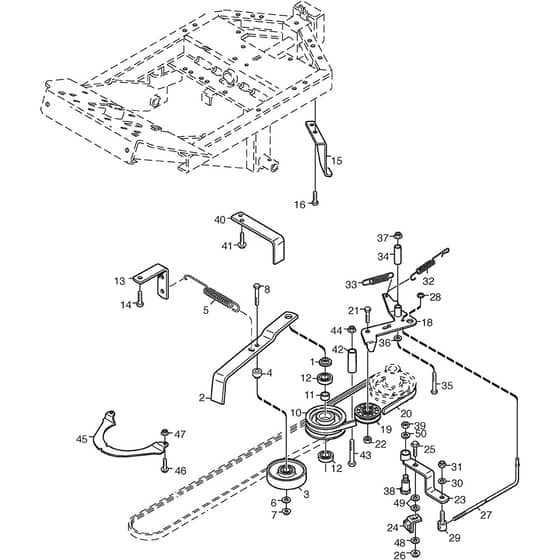

4135H - 2006 - 13-6102-97 - Mountfield Front Mower PTO (Power Take Off) Diagram

Name: 4135H - 2006 - 13-6102-97 - Mountfield Front Mower PTO (Power Take Off) Diagram
SKU: 4135h_13_6102_97_pto_power_take_off_-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4135H - 2006 - 13-6102-97 - Mountfield Front Mower PTO (Power Take Off) Diagram

Description

Mountfield 4135H Parts Diagram

Product Name - 4135H

Model Year - 2006

Model Type - P 901 C

Art.N - 13-6102-97

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-5548-01 Available to backorder	Spacer	£13.93 £11.61
2	MO1137-1124-01 Available to backorder	Tension Wheel Arm	£81.66 £68.05
3	MO387605007/0 Available to backorder	Tension Roller	£59.12 £49.27
4	MO1134-1888-04 Available to backorder	Spacer	£9.00 £7.50
5	MO1134-5111-01 Available to backorder	Spring	£18.10 £15.08
8	MO9997-0855-12 In stock	Screw	£1.82 £1.52
10	MO387605002/0 Available to backorder	Centre Belt Pulley Pos 11 - 12 incl.	£83.06 £69.22
11	MO1134-0051-09 Available to backorder	Spacer	£13.66 £11.38
12	MO119216056/0 In stock	Ball Bearing	£22.25 £18.54
13	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
14	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
18	MO1134-2018-02 Available to backorder	Tension Arm	£39.42 £32.85
19	MO387605008/0 In stock	Tension Roller (Black)	£35.20 £29.33
20	MO1134-9173-01 In stock	Drive Belt	£28.28 £23.57
21	MO9997-1030-16 Available to backorder	Screw	£2.68 £2.23
22	MO112295200/0 In stock	Nut	£1.40 £1.17
23	MO1134-4111-01 In stock	Brake Arm	£29.84 £24.87
24	MO1134-4164-03 Available to backorder	Brake Pad	£30.97 £25.81
25	MO9897-0825-16 Available to backorder	Screw	£2.92 £2.43
26	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
27	MO1134-4162-01 Available to backorder	Brake Rod	£16.46 £13.72
28	MO112604897/0 Available to backorder	Starlock	£1.55 £1.29
29	MO1134-4170-01 Available to backorder	Nippel	£16.75 £13.96
30	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
31	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
32	MO4231-0013-00 In stock	Spring	£8.52 £7.10
33	MO1135-3307-01 Available to backorder	Brake Spring	£23.30 £19.42
34	MO1134-1565-10 Available to backorder	Spacer	£8.23 £6.86
35	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
36	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
37	MO112293201/0 In stock	Nut	£1.69 £1.41
38	MO1134-4163-02 Available to backorder	Shoulder Bolt	£10.27 £8.56
39	MO112156602/0 In stock	Lock Nut	£1.40 £1.17
40	MO1134-3958-01 Available to backorder	Belt Guide	£17.04 £14.20
41	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
42	MO1134-0041-03 Available to backorder	Bushing	£11.27 £9.39
43	MO9997-1070-12 In stock	Screw	£3.52 £2.93
44	MO9739-1031-22 In stock	Nut	£1.97 £1.64
45	MO1134-3654-01 Available to backorder	Guard	£35.05 £29.21
46	MO9959-0612-16 Available to backorder	Screw	£1.40 £1.17
47	MO112292102/0 In stock	Nut	£1.69 £1.41
48	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
50	MO112521360/0 In stock	Use 112521360.0	£1.55 £1.29
