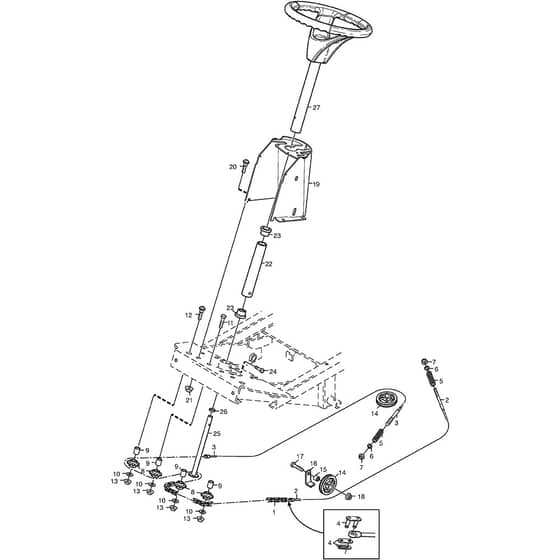

4135H - 2005 - 13-6102-96 - Mountfield Front Mower Steering Diagram

Description

Mountfield 4135H Parts Diagram

Product Name - 4135H

Model Year - 2005

Model Type - P 901 C

Art.N - 13-6102-96

Engine Model -

	Part No.	Details
1	MO187000351/1 In stock	Chain 83 links	£35.20 £29.33
2	MO1134-2817-01 Available to backorder	Steering Cable Left	£26.88 £22.40
3	MO1134-2817-02 Available to backorder	Steering Cable.Rh	£29.57 £24.64
4	MO187060100/1 In stock	Chain Lock	£6.77 £5.64
5	MO1134-3817-01 In stock	Spring	Was £12.67 £10.56 Special Price £7.94 £6.62
6	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
7	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
8	MO1134-2816-01 In stock	Sprocket	£10.37 £8.64
9	MO1134-0041-02 In stock	Bushing	£9.73 £8.11
10	MO112521360/0 In stock	Washer	£1.55 £1.29
11	MO9997-1050-16 Available to backorder	Screw	£2.53 £2.11
12	MO9897-1040-12 Available to backorder	Screw	£3.25 £2.71
14	MO1134-0072-02 Available to backorder	Steering Pulley	£7.39 £6.16
15	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
16	MO1134-3022-01 Available to backorder	Bracket	£1.97 £1.64
17	MO9997-1030-16 Available to backorder	Screw	£2.69 £2.24
18	MO9739-1031-22 In stock	Nut	£1.97 £1.64
20	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
21	MO112293201/0 In stock	Nut	£1.70 £1.42
22	MO1134-1305-05 Available to backorder	Steering Column.Lower	£38.00 £31.67
23	MO1134-1901-01 Available to backorder	Bearing	£11.95 £9.96
24	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
25	MO1134-2821-03 Available to backorder	Steering Rod	£68.56 £57.13
26	MO1134-2837-01 Available to backorder	Spacer	£9.17 £7.64
