4135H - 2005 - 13-6102-96 - Mountfield Front Mower Kanzaki Transaxle K46G Diagram

Name: 4135H - 2005 - 13-6102-96 - Mountfield Front Mower Kanzaki Transaxle K46G Diagram
SKU: 4135h_13_6102_96_kanzaki_transaxle_k46g-group
Price: 1.29 GBP
Availability: InStock

Part No. 4135h_13_6102_96_kanzaki_transaxle_k46g-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4135H - 2005 - 13-6102-96 - Mountfield Front Mower Kanzaki Transaxle K46G Diagram

Description

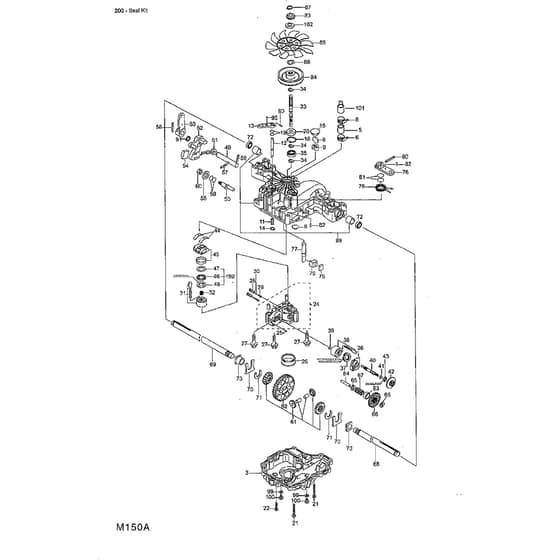

Mountfield 4135H Parts Diagram

Product Name - 4135H

Model Year - 2005

Model Type - P 901 C

Art.N - 13-6102-96

Engine Model -

	Part No.	Details
5	MO1139-1301-01 Available to backorder	Tube K46G	£10.88 £9.07
6	MO1139-1336-01 Available to backorder	Cobra Clip K46G	£6.77 £5.64
8	MO1139-1150-01 Available to backorder	Magnet K46G	£8.24 £6.87
11	MO1139-1347-01 Available to backorder	Spring K46G S.N 015564	£4.51 £3.76
13	MO1139-1189-01 Available to backorder	By-Pass Lever K46G	£9.18 £7.65
14	MO1139-1161-01 Available to backorder	Ring K46G	£1.55 £1.29
15	MO1139-1735-01 In stock	Bore Plug K46G	£9.62 £8.02
16	MO1139-1104-01 Available to backorder	Snap Ring K46G	£4.51 £3.76
19	MO1139-1117-01 Available to backorder	O-Ring K46G	£4.52 £3.77
20	MO1139-1119-01 Available to backorder	Seal 15357 K46G	£6.08 £5.07
21	MO1139-1295-01 Available to backorder	Screw K46G	£4.96 £4.13
24	MO1139-1593-01 Available to backorder	Center Case cmp K46G S.N 010804 S.N 015418	£1,185.12 £987.60
25	MO1139-1158-01 Available to backorder	Pin K46G	£4.51 £3.76
26	MO1139-1498-01 Available to backorder	Filter K46G S.N 018459	£36.78 £30.65
29	MO1139-1338-01 Available to backorder	Spring K46G S.N 010000	£1.74 £1.45
30	MO1139-1346-01 Available to backorder	Ball K46G	£1.97 £1.64
31	MO1139-1601-01 Available to backorder	Cylinder Block Kit K46G S.N 015564	£1,250.00 £1,041.67
32	MO1139-1245-01 Available to backorder	Pump Spring K46G	£4.82 £4.02
33	MO1139-1246-01 Available to backorder	Pump Shaft K46G	£62.22 £51.85
34	MO1139-1750-01 Available to backorder	Ring K46G	£4.51 £3.76
35	MO1139-1110-01 Available to backorder	Ball Bearing K46G	£17.98 £14.98
36	MO1139-1157-01 Available to backorder	Housing K46G	£18.31 £15.26
37	MO1139-1501-01 Available to backorder	Bearing K46G	£48.08 £40.07
38	MO1139-1139-01 Available to backorder	Cylinder Block Assy K46G	£1,185.12 £987.60
39	MO1139-1160-01 Available to backorder	Washer K46G	£4.51 £3.76
40	MO1139-1353-01 Available to backorder	Motor Shaft K46G S.N 015564	£39.62 £33.02
41	MO1139-1021-01 Available to backorder	Snap Ring K46G	£4.51 £3.76
42	MO1139-1272-01 Available to backorder	Motor Gear K46G	£23.20 £19.33
45	MO1139-1067-01 Available to backorder	Swash Plate Assy K46G S.N 022544	£42.22 £35.18
53	MO1139-1325-01 Available to backorder	Control Lever K46G	£27.17 £22.64
55	MO1139-1102-01 Available to backorder	Washer K46G	£5.76 £4.80
56	MO1139-1355-01 Available to backorder	Cotter Pin K46G S.N 012411	£4.51 £3.76
57	MO1139-1329-01 Available to backorder	Pin K46G	£4.82 £4.02
58	MO1139-1285-01 Available to backorder	Pin K46G	£4.51 £3.76
59	MO1139-1115-01 Available to backorder	O-Ring K46G	£4.51 £3.76
60	MO1139-1127-01 Available to backorder	Nut K46G	£4.51 £3.76
61	MO1139-1162-01 Available to backorder	Diff.Gear Kit K46G S.N 015563	£73.57 £61.31
61	MO1139-1404-01 Available to backorder	Diff.Gear Kit K46G S.N 015564	£73.57 £61.31
62	MO1139-1258-01 Available to backorder	Final Gear K46G	£111.76 £93.13
63	MO1139-1255-01 Available to backorder	Collar K46G	£9.89 £8.24
64	MO1139-1256-01 Available to backorder	Reduction Shaft K46G	£14.70 £12.25
65	MO1139-1398-01 Available to backorder	Washer K46G S.N 022545	£5.22 £4.35
67	MO1139-1361-01 Available to backorder	Final Pinion Gear K46G S.N 020544	£25.18 £20.98
68	MO1139-1344-01 In stock	Axle Shaft-Rh K46G S.N 014195	£82.06 £68.38
69	MO1139-1345-01 In stock	Axle Shaft-Lh K46G S.N 014195	£102.17 £85.14
70	MO1139-1078-01 Available to backorder	Thrust Washer K46G	£12.05 £10.04
71	MO1139-1163-01 Available to backorder	Ring K46G	£4.51 £3.76
72	MO1139-1080-01 In stock	Seal 19328 K46G	£13.28 £11.07
73	MO1139-1164-01 Available to backorder	Bushing K46G	£6.61 £5.51
75	MO1139-1260-01 Available to backorder	Brake Shoe K46G	£4.51 £3.76
76	MO1139-1261-01 Available to backorder	Brake Arm K46G	£10.03 £8.36
77	MO1139-1320-01 Available to backorder	Brake Shaft K46G	£47.81 £39.84
78	MO1139-1411-01 Available to backorder	Return Spring K46G	£9.23 £7.69
79	MO1139-1264-01 Available to backorder	Brake Actuator K46G	£5.60 £4.67
80	MO1139-1282-01 Available to backorder	Pin K46G	£5.04 £4.20
81	MO1139-1114-01 Available to backorder	O-Ring K46G	£4.82 £4.02
83	MO1139-1248-01 Available to backorder	Spline Collar K46G	£8.53 £7.11
84	MO1139-1469-01 In stock	Pulley K46G	£92.86 £77.38
85	MO1134-4190-01 In stock	Fan K46G	£21.12 £17.60
86	MO1139-1266-01 Available to backorder	Washer K46G	£4.82 £4.02
87	MO1139-1149-01 Available to backorder	Snap Ring K46G	£4.98 £4.15
91	TT1A646024440 Available to backorder	Seal Ring K46G	£7.56 £6.30
95	MO1139-1279-01 Available to backorder	Pin K46G	£4.51 £3.76
99	MO1139-1103-01 Available to backorder	Washer K46G	£6.30 £5.25
100	MO1139-1733-01 Available to backorder	Bolt K46G	£4.51 £3.76
101	MO1139-1306-01 Available to backorder	Adaptor K46G	£6.26 £5.22
102	MO1139-1276-01 Available to backorder	Collar K46G	£6.91 £5.76
200	MO1139-1403-01 Available to backorder	Seal Kit	£180.96 £150.80
