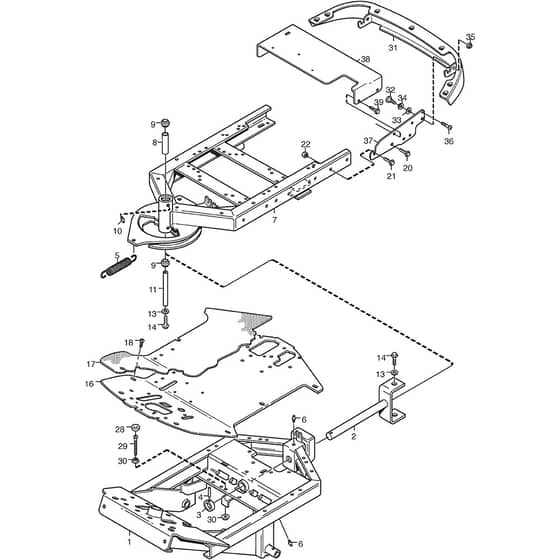

4125M - 2005 - 13-6101-96 - Mountfield Front Mower Frame Diagram

Name: 4125M - 2005 - 13-6101-96 - Mountfield Front Mower Frame Diagram
SKU: 4125m_13_6101_96_frame-group
Price: 1.05 GBP
Availability: InStock

Part No. 4125m_13_6101_96_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4125M - 2005 - 13-6101-96 - Mountfield Front Mower Frame Diagram

Description

Mountfield 4125M Parts Diagram

Product Name - 4125M

Model Year - 2005

Model Type - P 901 C

Art.N - 13-6101-96

Engine Model -

	Part No.	Details
1	MO387800011/0 Available to backorder	Frame-Front	£837.60 £698.00
2	MO1137-1119-02 Available to backorder	Fork	£168.91 £140.76
3	MO1134-0031-00 In stock	Pivot Shaft Stop	£24.36 £20.30
4	MO9595-0262-00 In stock	Locating Pin	£1.79 £1.49
5	MO1134-2171-01 In stock	Spring	£19.28 £16.07
8	MO1134-5705-01 Available to backorder	Spacer	£22.81 £19.01
9	MO9547-0001-00 In stock	Bearing	£29.56 £24.63
10	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
11	MO1134-5988-01 Available to backorder	Centre Shaft	£22.38 £18.65
13	MO112521360/0 In stock	Washer	£1.55 £1.29
14	MO9959-1020-16 Available to backorder	Screw	£2.53 £2.11
14	MO9959-1025-16 Available to backorder	Screw	£2.69 £2.24
16	MO1134-6586-01 Available to backorder	Floor Plate (5-01)	£168.91 £140.76
18	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
21	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
22	MO112293201/0 In stock	Nut	£1.70 £1.42
30	MO9739-0531-22 Available to backorder	Nut	£2.22 £1.85
32	MO1134-0240-00 In stock	Screw	£8.80 £7.33
33	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
34	MO9665-0002-00 Available to backorder	Washer	£2.24 £1.87
35	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
36	MO9943-0516-16 In stock	Screw	£1.26 £1.05
39	MO9945-0816-16 Available to backorder	Screw M8 X 16	£2.24 £1.87
