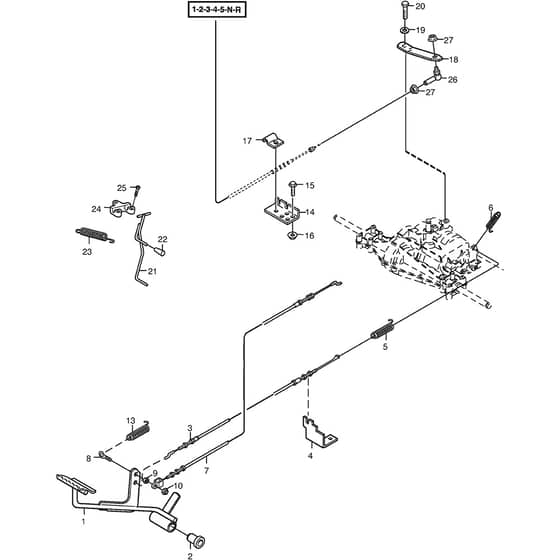

4125M - 2005 - 13-6101-96 - Mountfield Front Mower Foot Controls Diagram

Name: 4125M - 2005 - 13-6101-96 - Mountfield Front Mower Foot Controls Diagram
SKU: 4125m_13_6101_96_foot_controls-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

4125M - 2005 - 13-6101-96 - Mountfield Front Mower Foot Controls Diagram

Description

Mountfield 4125M Parts Diagram

Product Name - 4125M

Model Year - 2005

Model Type - P 901 C

Art.N - 13-6101-96

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO1134-0068-00 Available to backorder	Bushing	£4.37 £3.64
3	MO1134-3410-02 Available to backorder	Cable. Thread Engine Brake	£52.08 £43.40
5	MO1134-3280-01 Available to backorder	Spring	£19.57 £16.31
6	MO1134-3974-02 Available to backorder	Spring	£25.76 £21.47
7	MO1134-4058-01 Available to backorder	Cable	£83.75 £69.79
10	MO112154330/0 In stock	Nut	£1.55 £1.29
13	MO1134-3974-01 Available to backorder	Spring	£12.10 £10.08
14	MO1134-3400-01 Available to backorder	Angle Plate	£43.64 £36.37
15	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
16	MO112293201/0 In stock	Nut	£1.69 £1.41
17	MO1134-2021-01 Available to backorder	Clamp	£7.03 £5.86
19	MO112523040/0 In stock	Washer	£1.49 £1.24
20	MO112735520/0 Available to backorder	Screw	£1.55 £1.29
21	MO1134-5353-01 Available to backorder	Brake Rod	£51.62 £43.02
22	MO1134-2786-01 Available to backorder	Knob	£6.05 £5.04
23	MO1131-1497-01 Available to backorder	Brake Spring	£10.20 £8.50
24	MO1134-4002-01 Available to backorder	Brake Rod Attachment	£11.96 £9.97
25	MO9838-9516-12 Available to backorder	Screw	£2.12 £1.77
26	MO9570-0001-00 In stock	Elbow Link	£19.57 £16.31
27	MO9739-0531-22 Available to backorder	Nut M5	£2.12 £1.77
