4120 HP - 2009 - 299064123/MEE - Mountfield Rotary Mower Deck Diagram

Description

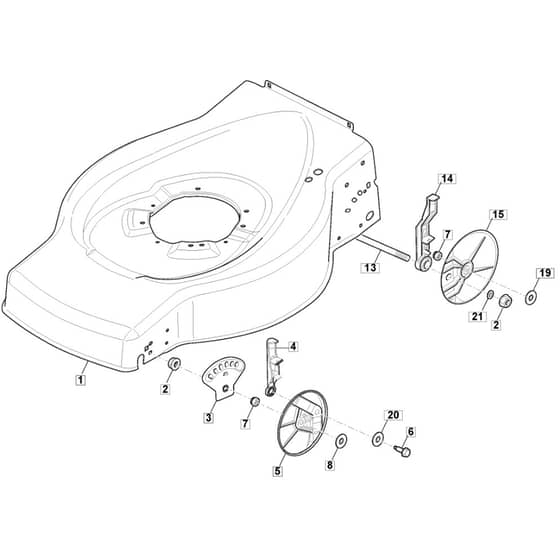

Mountfield 4120 HP Parts Diagram

Product Name - 4120 HP

Model Year - 2009

Model Type - ES 414

Art.N - 299064123/MEE

	Part No.	Details
2	MO122131750/0 In stock	Nut	£1.97 £1.64
3	MO322735559/0 Available to backorder	Sector. Height Adjustment Right Right	£2.69 £2.24
3	MO322735561/0 Available to backorder	Sector. Height Adjustment Left Left	£2.69 £2.24
4	MO381003306/0 In stock	Lever. Height Adjustment	£6.32 £5.27
5	MO322600170/0 In stock	Protection. Wheel From 01-9-2007	£10.14 £8.45
6	MO122524324/0 In stock	Pin	£4.22 £3.52
7	MO112155000/0 In stock	Nut	£1.55 £1.29
14	MO381003307/0 In stock	Lever. Height Adjustment	£13.44 £11.20
15	MO322600098/0 In stock	Wheel	£8.17 £6.81
19	MO325670011/0 Available to backorder	Antifriction Washer From 01-9-2006	£1.55 £1.29
19	MO122671651/0 In stock	Washer To 31-8-2006	£1.97 £1.64
20	MO112530150/0 In stock	Spring Washer	£1.39 £1.16
21	MO122675100/0 Available to backorder	Washer D.12.6 X 24 X 0.6	£1.92 £1.60
