4000SH - 2011-2012 - 2T1710383/M11 - Mountfield Ride On Mower Seat and Steering Wheel Diagram

Name: 4000SH - 2011-2012 - 2T1710383/M11 - Mountfield Ride On Mower Seat and Steering Wheel Diagram
SKU: 4000sh_2t1710383_m11_seat_and_steering_wheel-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

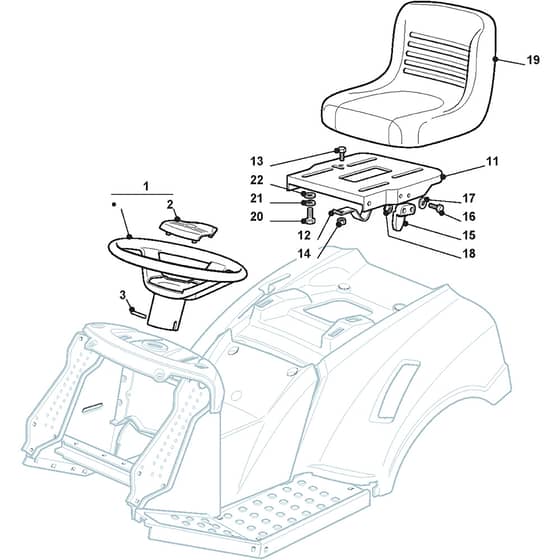

4000SH - 2011-2012 - 2T1710383/M11 - Mountfield Ride On Mower Seat and Steering Wheel Diagram

Description

Mountfield 4000SH Parts Diagram

Product Name - 4000SH

Model Year - 2011-2012

Model Type - NJS 102 Hydro

Art.N - 2T1710383/M11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125961216/1 Available to backorder	Steering Wheel	£54.61 £45.51
2	MO325580501/0 Available to backorder	Cap	£7.62 £6.35
3	MO112620299/0 Available to backorder	Elastic Pin	£1.82 £1.52
11	MO325547033/1 Available to backorder	Seat Plate	£33.02 £27.52
12	MO125430223/2 Available to backorder	Spring	£6.20 £5.17
13	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
15	MO327063021/1 Available to backorder	Cam	£7.85 £6.54
16	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
17	MO112523020/0 In stock	Washer	£1.55 £1.29
18	MO112154330/0 In stock	Nut	£1.55 £1.29
19	MO125722471/0 In stock	Seat	£190.04 £158.37
20	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
21	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
22	MO112523060/0 Available to backorder	Washer M8 8.4 X 24 X 2	£1.55 £1.29
