3600SH - 2011-2018 - 2T0410383/M11 - Mountfield Ride On Mower Chassis Diagram

Name: 3600SH - 2011-2018 - 2T0410383/M11 - Mountfield Ride On Mower Chassis Diagram
SKU: 3600sh_2t0410383_m11_chassis-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

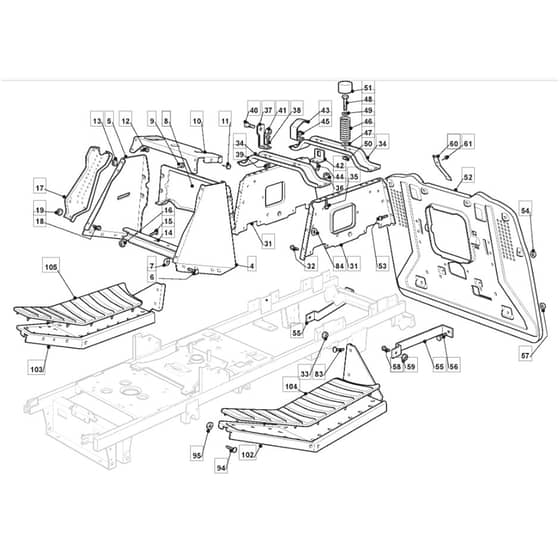

3600SH - 2011-2018 - 2T0410383/M11 - Mountfield Ride On Mower Chassis Diagram

Description

Mountfield 3600SH Parts Diagram

Product Name - 3600SH

Model Year - 2011-2018

Model Type - NJS 92 Hydro

Art.N - 2T0410383/M11

Engine Model - GXV 390

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325785243/1 Out of stock	Left Dashboard Support	£29.28 £24.40
5	MO325785245/0 Out of stock	Right Dashboard Support	£20.88 £17.40
8	MO382785151/1 Out of stock	Rear Dashboard Support To 01-9-2013	£15.53 £12.94
8	MO382785151/2 Out of stock	Rear Dashboard Support From 01-9-2013	£15.79 £13.16
10	MO325785255/0 Out of stock	Central Dashboard Support	£7.90 £6.58
11	MO112735110/0 In stock	Screw	£1.48 £1.23
12	MO112815200/0 In stock	Screw	£1.48 £1.23
13	MO112292102/0 In stock	Nut	£1.61 £1.34
14	MO325785241/0 Out of stock	Support	£6.74 £5.62
17	MO382785153/1 Out of stock	Front Dashboard Support	£14.51 £12.09
31	MO325785249/0 Out of stock	Seat Support	£31.82 £26.52
34	MO325785257/1 Out of stock	Seat Support	£11.84 £9.87
35	MO112818690/0 Out of stock	Screw	£1.70 £1.42
36	MO112293201/0 In stock	Nut	£1.61 £1.34
37	MO325755039/0 Out of stock	Bracket	£5.22 £4.35
38	MO112792611/0 Out of stock	Screw	£1.48 £1.23
40	MO122524970/2 Out of stock	Fulcrum Pin	£1.80 £1.50
41	MO112155010/0 Out of stock	Nut	£2.00 £1.67
42	MO325755043/0 Out of stock	Bracket	£2.29 £1.91
43	MO325430253/0 Out of stock	Micro Seat Protect Spring	£4.07 £3.39
44	MO112789000/0 Out of stock	Screw	£1.48 £1.23
45	MO112154330/0 Out of stock	Nut	£1.48 £1.23
46	MO125430257/1 Out of stock	Spring	£11.92 £9.93
47	MO112523070/0 Out of stock	Washer	£1.48 £1.23
48	MO112760515/0 Out of stock	Screw	£1.48 £1.23
49	MO122671653/0 Out of stock	Washer	£1.48 £1.23
50	MO112360425/0 Out of stock	Nut	£1.74 £1.45
51	MO325122000/2 Out of stock	Cap	£1.66 £1.38
52	MO382547041/1 Out of stock	Plate	£96.76 £80.63
55	MO325650119/0 Out of stock	Plate Stiffening	£12.73 £10.61
60	MO127430600/0 Out of stock	Spring To 01-9-2012	£2.68 £2.23
60	MO125430276/0 Out of stock	Spring From 01-9-2012	£4.82 £4.02
102	MO382510083/0 Out of stock	Left Footboard Support	£72.56 £60.47
103	MO382510081/0 Out of stock	Right Footboard Support	£75.11 £62.59
104	MO325110327/0 Out of stock	Left Footboard Cover	£17.06 £14.22
105	MO325110326/0 Out of stock	Right Footboard Cover	£15.53 £12.94
