3000SH - 2012-2015 - 2T2000383/M12 - Mountfield Ride On Mower Starter Motor Diagram

Name: 3000SH - 2012-2015 - 2T2000383/M12 - Mountfield Ride On Mower Starter Motor Diagram
SKU: 3000sh_2t2000383_m12_starter_motor-group
Price: 1.67 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

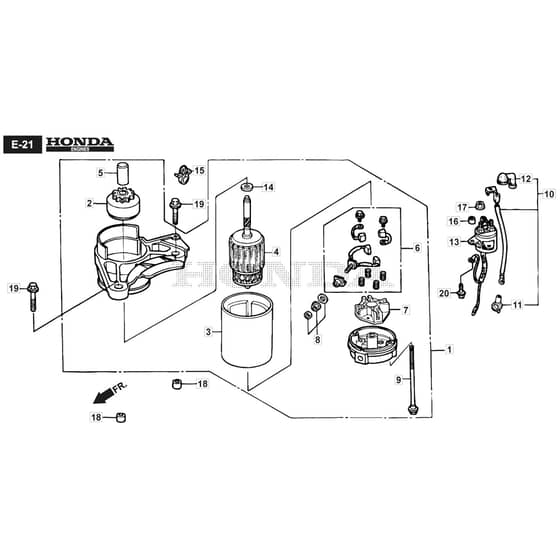

3000SH - 2012-2015 - 2T2000383/M12 - Mountfield Ride On Mower Starter Motor Diagram

Description

Mountfield 3000SH Parts Diagram

Product Name - 3000 SH

Model Year - 2012-2015

Model Type - MP 84 Hydro

Art.N - 2T2000383/M12

Engine Model - Honda GXV 390

Be the first to review this product

0 product questions

	Part No.	Details
1	HP31200-ZF5-L32 Available to backorder	Motor Assy. Starter	£325.92 £271.60
2	HP31206-ZF5-L31 Available to backorder	Drive Assy.	£149.16 £124.30
5	HP31225-ZF5-L31 Available to backorder	Stopper Set. Pinion	£41.27 £34.39
6	HP31226-ZF5-L31 Available to backorder	Brush Set	£70.50 £58.75
10	HP32402-ZF5-V00 Available to backorder	Cord. Magnet Switch	£35.11 £29.26
13	HP35850-ZF5-V01 Available to backorder	Switch Assy. Starter Magnetic	£110.52 £92.10
17	HP94070-06080 Available to backorder	Nut-Washer. 6mm	£3.22 £2.68
19	HP95701-0803500 Available to backorder	Bolt. Flange. 8X35	£2.57 £2.14
20	HP96001-0602500 Available to backorder	Bolt. Flange. 6X25	£2.00 £1.67
